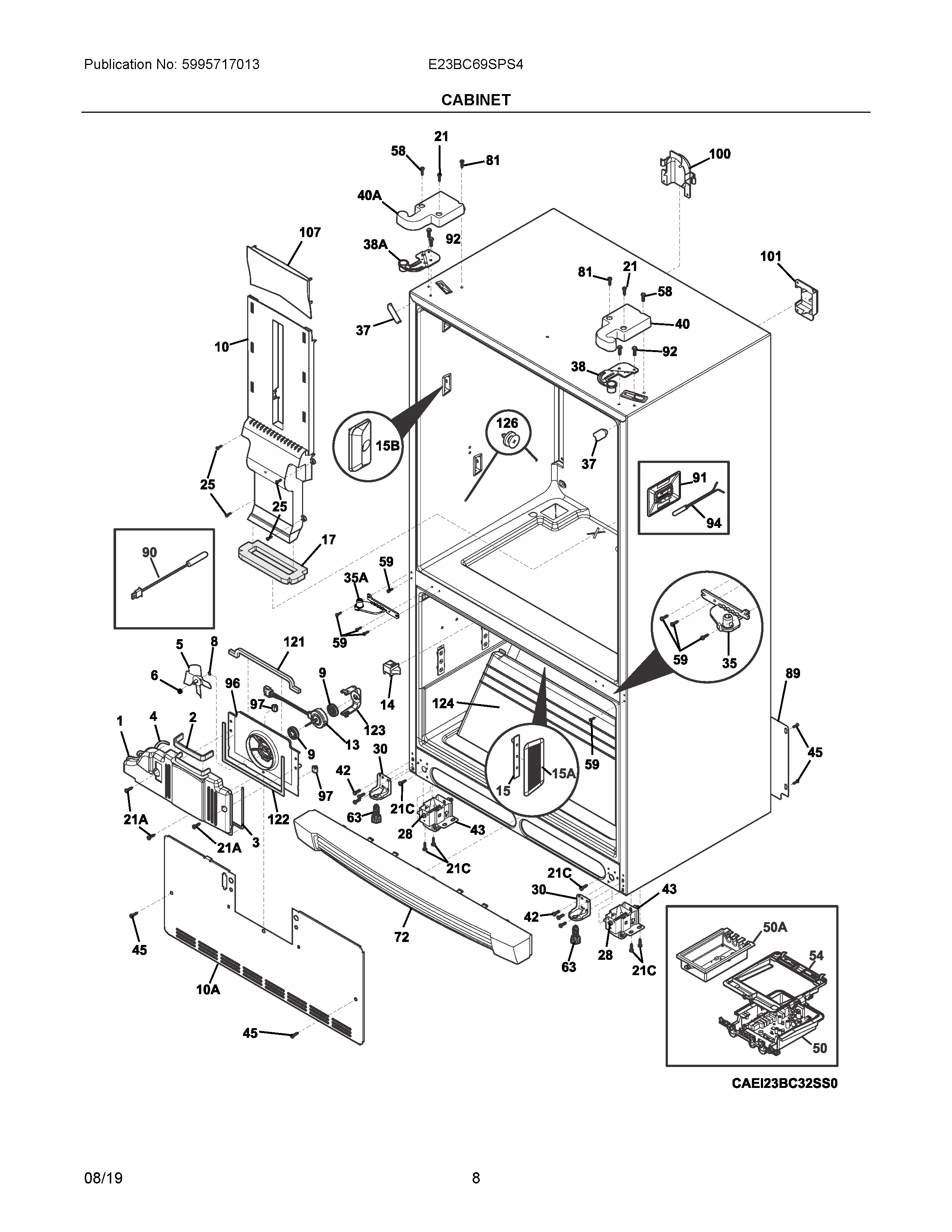

E23BC69SPS4 04 – CABINET

Products

Position	Product
NI	218362501 Frigidaire Refrigerator Screw
NIAB	241860105 Frigidaire Refrigerator Gasket-Coil Cover
NIA	242285301 Frigidaire Clip
NI	218515401 Frigidaire Refrigerator Clip
NI	5304455650 Frigidaire Refrigerator Screw
NIA	241842301 Frigidaire Refrigerator Thermistor Cap
NIB	241953902 Frigidaire Refrigerator Screw
NIC	241969001 Frigidaire Refrigerator Cap
NIAA	241860104 Frigidaire Refrigerator Coil Cover Gasket
1	5304503130 Frigidaire Refrigerator Cover
2	218249809 Frigidaire Refrigerator Seal
3	241860111 Frigidaire Refrigerator Evaporator Gasket
4	241860112 Frigidaire Refrigerator Evaporator Gasket
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	5304508010 Frigidaire Refrigerator Spring
8	215474201 Frigidaire Refrigerator Washer
9	5304508006 Frigidaire Refrigerator Bushing
10	5304508187 Frigidaire Refrigerator Air Tower
10A	241860402 Frigidaire Refrigerator Evaporator Coil Cover
13	MOTOR
14	242060202 Frigidaire Refrigerator Switch-Light/Lamp
15	5304525264 Frigidaire LED Light
15B	5304513664 Frigidaire Refrigerator S/A Pur-Led Light
15A	242202701 Frigidaire Refrigerator Lens
17	5304508008 Frigidaire Refrigerator Gasket
21C	218252201 Frigidaire Refrigerator Screw
21	241732101 Frigidaire Refrigerator Screw
21A	242015001 Frigidaire Refrigerator Screw
25	240383407 Frigidaire Refrigerator Screw
30	241778702 Frigidaire Refrigerator Bracket-Anti Tip
35	5304508044 Frigidaire Refrigerator Hinge Assembly
35A	5304508045 Frigidaire Refrigerator Hinge Assembly
37	5304519618 Frigidaire Refrigerator Cabinet Corner Trim
38A	241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38	241761301 Frigidaire Upper Bracket Hinge
40A	242099810 Frigidaire Refrigerator Upper Hinge Cover
40	COVER-UPPER HINGE, GRAY, RH
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
50	5304510441 Frigidaire Refrigerator Main Power Board
50AA	241891610 Frigidaire Refrigerator Power Board
54	807854301 Frigidaire Refrigerator Support
58	241853202 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
63	216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
72	5304501186 Frigidaire Refrigerator Toe Grille Assembly
81	134154100 Frigidaire Screw 10-32 x 0.375 Co
89	5304520905 Frigidaire Assembly Cover Refrigerator
90	240597220 Frigidaire Sensor
91	5304508041 Frigidaire Refrigerator Cover
92	241710601 Frigidaire Refrigerator Screw
94	5303918775 Frigidaire Refrigerator Thermistor
96	241860601 Frigidaire Refrigerator Evaporator Fan Mount Shroud
97	241860110 Frigidaire Refrigerator Gasket-Coil Cover
100	242157601 Frigidaire Refrigerator Cover
101	242157801 Frigidaire Refrigerator Cover
107	241963102 Frigidaire Refrigerator Duct-Air
121	241860103 Frigidaire Refrigerator Gasket-Evaporator
122	241860117 Frigidaire Gasket
123	5304508007 Frigidaire Refrigerator Bracket
124	242006903 Frigidaire Refrigerator Air Duct
126	5304515677 Frigidaire Package of 4 Screws
