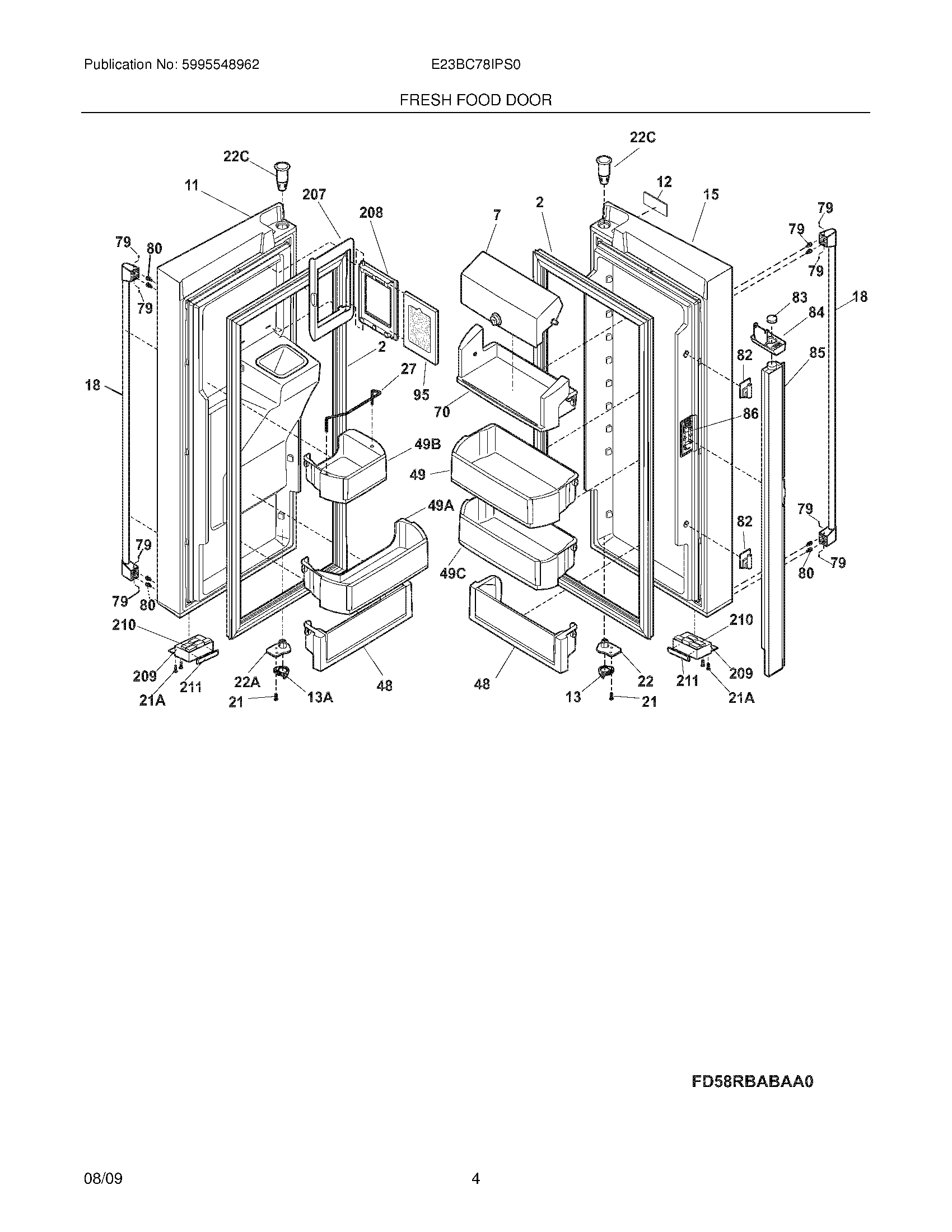

E23BC78IPS0 05 – FRESH FOOD DOOR

Products

Position	Product
NI	242015001 Frigidaire Refrigerator Screw
NI	241788402 Frigidaire Harness-WIRING
NI	241995401 Frigidaire Refrigerator Divider-Dairy Compt
NI	241836401 Frigidaire Refrigerator Door Latch
NI	241836301 Frigidaire Refrigerator Knob-Dairy Door
NI	WCI 7241926001
NI	WCI 7241891101
NI	WCI 75303918450
NI	5304453707 Frigidaire Oven Screw
2	GASKET-DR
11	WCI 7241988015
12	241603101 Frigidaire Refrigerator Label-Nameplate
13	241868401 Frigidaire Refrigerator Door Stop
13A	241868402 Frigidaire Refrigerator Door Stop
15	WCI 7241988014
18	242052504 Frigidaire Refrigerator Three-Piece Door Handle Set
21	242017501 Frigidaire Refrigerator Screw
22A	242075602 Frigidaire Refrigerator Cam
22C	241760401 Frigidaire Refrigerator Bearing
27	241752702 Frigidaire Refrigerator Retainer
48	241804303 Frigidaire Refrigerator Door Bin
49B	241906302 Frigidaire Refrigerator Door Bin
49	WCI 7241804004
49A	WCI 7241896002
49C	WCI 7241896102
70	241895805 Frigidaire Refrigerator Butter-Cheese Door
79	218755401 Frigidaire Refrigerator Screw Set
80	218755504 Frigidaire Refrigerator Shoulder Screw
82	241779401 Frigidaire Refrigerator Flipper Hinge Mullion
83	241812201 Frigidaire Refrigerator Magnet
84	5303918644 Frigidaire Refrigerator FDBM Mullion Guide Kit
85	241778808 Frigidaire Refrigerator White Mullion Assembly with Heater
86	241779802 Frigidaire Door Hinge Mullion Flipper
95	WCI 7241754001
207	241934901 Frigidaire Refrigerator Filter Housing
208	241935001 Frigidaire Refrigerator Air Filter Door
209	242291001 Frigidaire Refrigerator Housing
210	241779101 Frigidaire Refrigerator Magnet
211	241979601 Frigidaire Refrigerator Bumper
