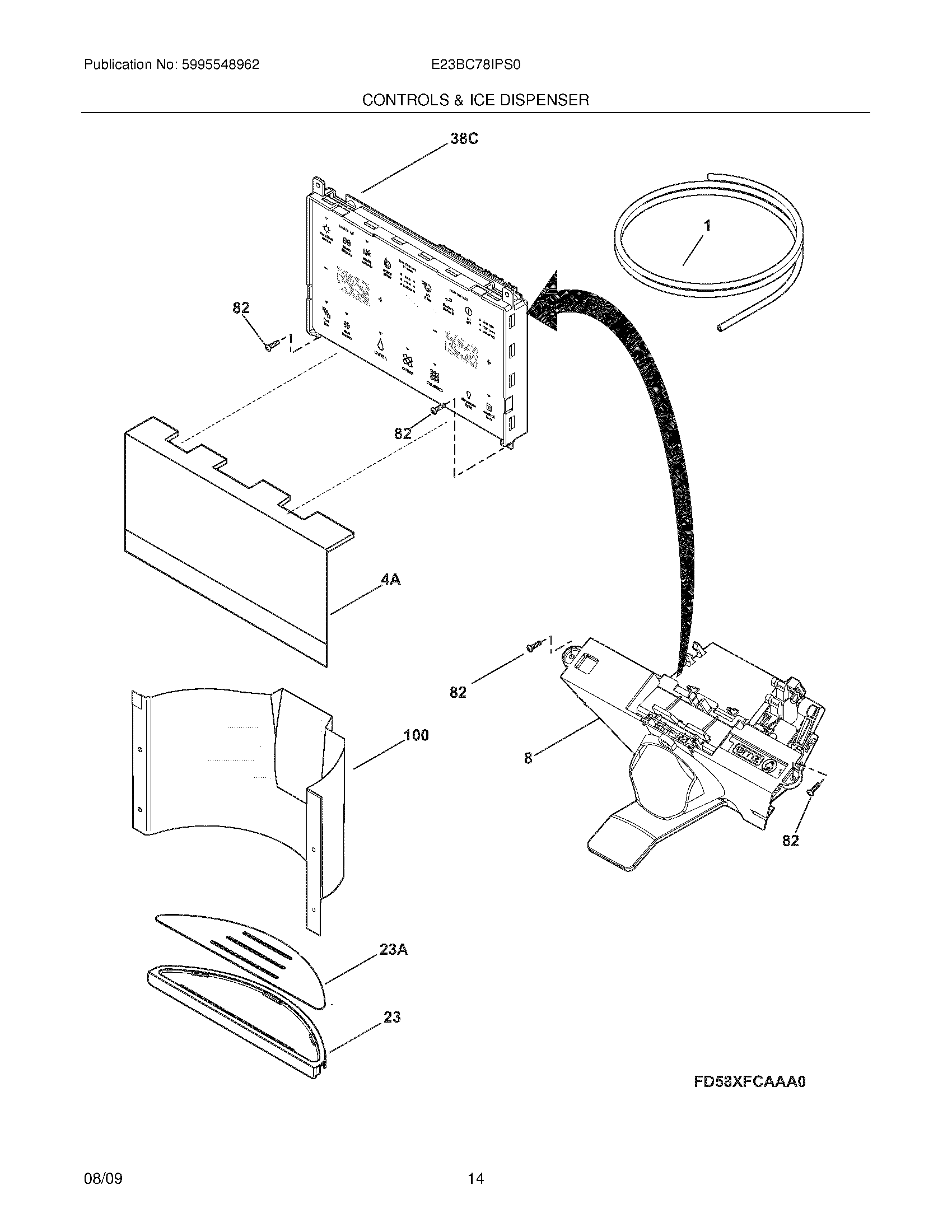

E23BC78IPS0 13 – CONTROLS & ICE DISPENSER

E23BC78IPS0 13 – CONTROLS & ICE DISPENSER

Written by

in

E23BC78IPS0 13 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NIWCI 7242016001
NI241920101 Frigidaire Refrigerator Water Inlet Tube
NI241510902 Frigidaire Refrigerator Dispenser Harness
NI241965907 Frigidaire Refrigerator Water Tube
NI218976425 Frigidaire Refrigerator Water Inlet Tube
NIWCI 75303918450
1WCI 7218976426
4A241912101 Frigidaire Refrigerator Trim
8242100024 Frigidaire Refrigerator Dispenser Module
23A241987001 Frigidaire Refrigerator Drip Tray
23241912301 Frigidaire Refrigerator Drip Tray
38CWCI 7241836010
82241953902 Frigidaire Refrigerator Screw
100241912201 Frigidaire Sump Liner
