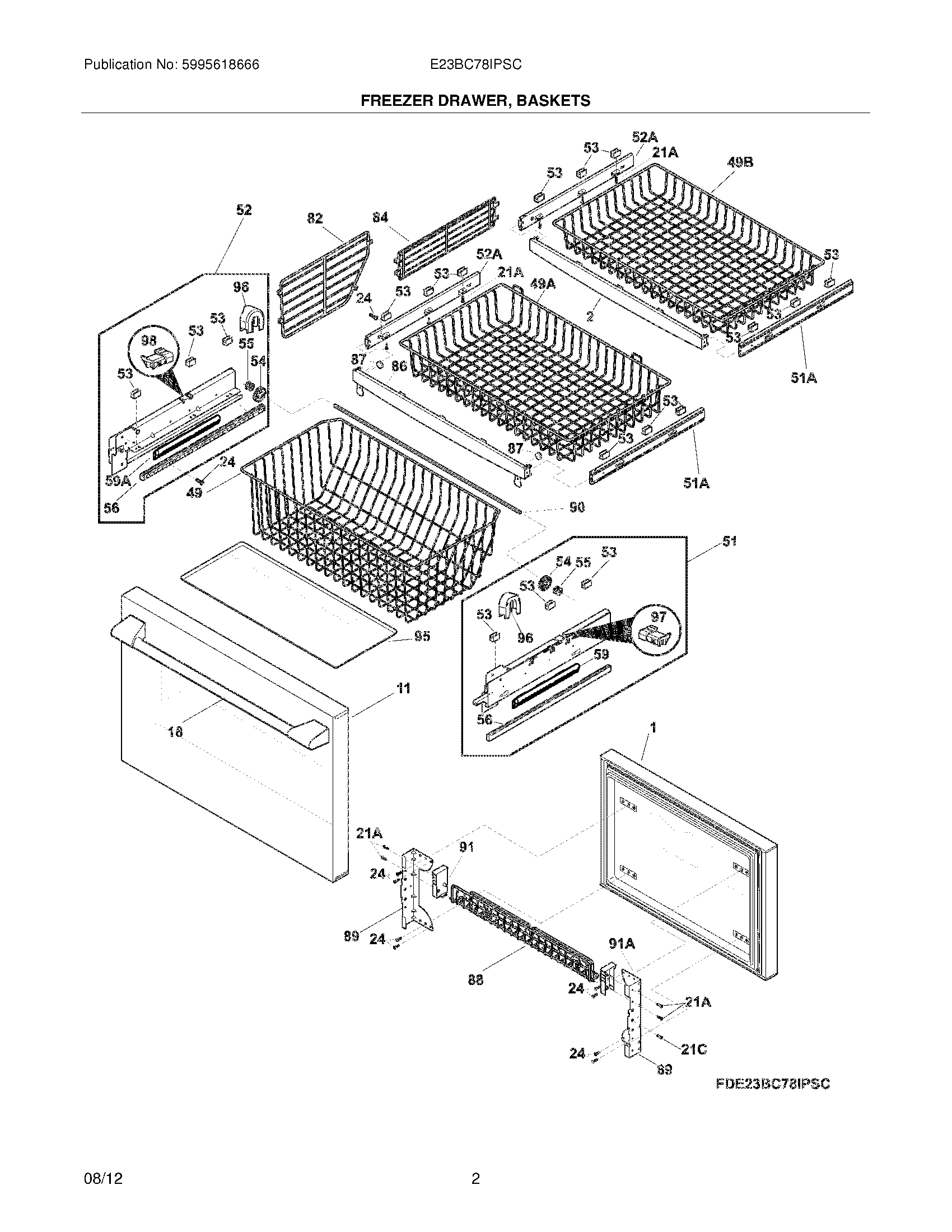

E23BC78IPSC 03 – FREEZER DRAWER, BASKETS

E23BC78IPSC 03 – FREEZER DRAWER, BASKETS

Written by

in

E23BC78IPSC 03 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NI242039701 Frigidaire Refrigerator Screw
NI218755504 Frigidaire Refrigerator Shoulder Screw
NI5304467131 Frigidaire Refrigerator Wrench
NI242011101 Frigidaire Refrigerator Pin-Lock
NI241701902 Frigidaire Refrigerator 3/32" Screwdriver
NI218755402 Frigidaire Refrigerator Set Screw
NI241899703 Frigidaire Refrigerator Screw
NI241979601 Frigidaire Refrigerator Bumper
1GASKET
25304507340 Frigidaire Refrigerator Trim
11DRAWER, STAINLESS, FREEZER
18242052504 Frigidaire Refrigerator Three-Piece Door Handle Set
21C5304497384 Frigidaire Refrigerator Plate
21C242146401 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
245304515677 Frigidaire Package of 4 Screws
49BWCI 241831304
49AWCI 241780804
49WCI 242027002
51WCI 241883605
51A241894221 Frigidaire Refrigerator Assembly-Slide
52A241894222 Frigidaire Refrigerator Slide Assembly
52WCI 241883705
53WCI 241824201
54241770201 Frigidaire Refrigerator Pinion
55241770301 Frigidaire Guard
56WCI 242163802
56WCI 242163801
595304474655 Frigidaire Refrigerator Self-Close Assembly
59A5304474656 Frigidaire Refrigerator Self-Close Assembly
82242027102 Frigidaire Divider
84WCI 241780903
86241953202 Frigidaire Refrigerator Bar Assembly
87241812202 Frigidaire Refrigerator Magnet
88241824009 Frigidaire Refrigerator Tilt Out Rack
89241972302 Frigidaire Refrigerator Drawer Bracket (Freezer)
90241770705 Frigidaire Bar
91A241824101 Frigidaire Refrigerator Cap
91241824102 Frigidaire Refrigerator Door Rack Cap
95WCI 241770811
96241973501 Frigidaire Refrigerator Cover Pinion White
97241926401 Frigidaire Refrigerator Actuator
98241926402 Frigidaire Refrigerator Actuator
