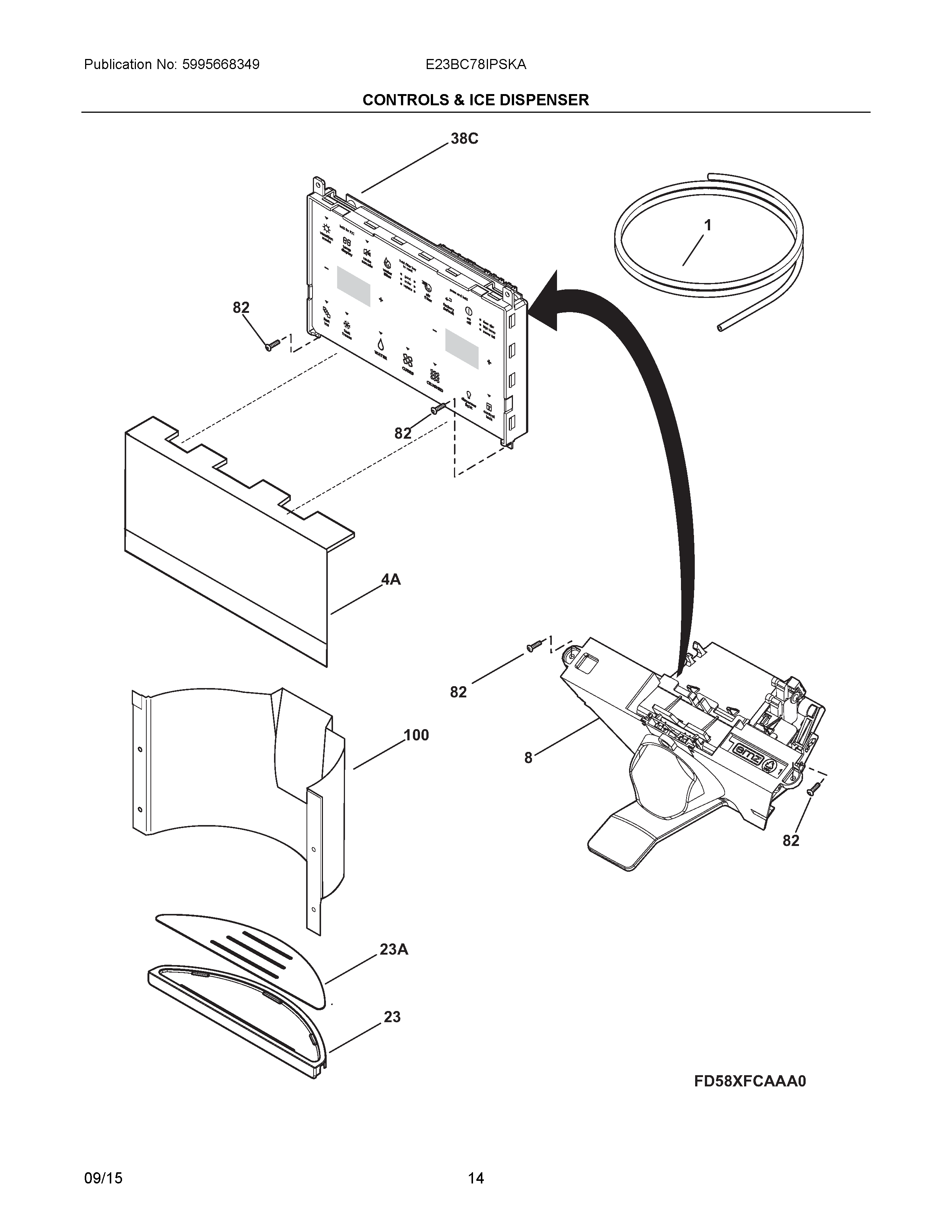

E23BC78IPSKA 07 – CONTROLS & ICE DISPENSER

E23BC78IPSKA 07 – CONTROLS & ICE DISPENSER

Written by

in

E23BC78IPSKA 07 – CONTROLS & ICE DISPENSER

Products

PositionProduct
NIE242220113 Frigidaire Refrigerator Water Tube
NIC241965907 Frigidaire Refrigerator Water Tube
NIWCI 242040801
NID242220112 Frigidaire Refrigerator Water Tube
NI5303918484 Frigidaire Dispenser
NI241503901 Frigidaire Refrigerator P-1 Tube Adapter
NIB241964707 Frigidaire Refrigerator Water Tube
NIA241920106 Frigidaire Fill Tube Kit
NIF242200102 Frigidaire Refrigerator Clip
NI241806601 Frigidaire Refrigerator Water Connector
NI241510904 Frigidaire Refrigerator Dispenser Harness
1218976435 Frigidaire Refrigerator Water Inlet Tube
4A241912101 Frigidaire Refrigerator Trim
8242100024 Frigidaire Refrigerator Dispenser Module
23A241987001 Frigidaire Refrigerator Drip Tray
23241912301 Frigidaire Refrigerator Drip Tray
38C242041123 Frigidaire Refrigerator Control Board
82241953902 Frigidaire Refrigerator Screw
100241912201 Frigidaire Sump Liner
