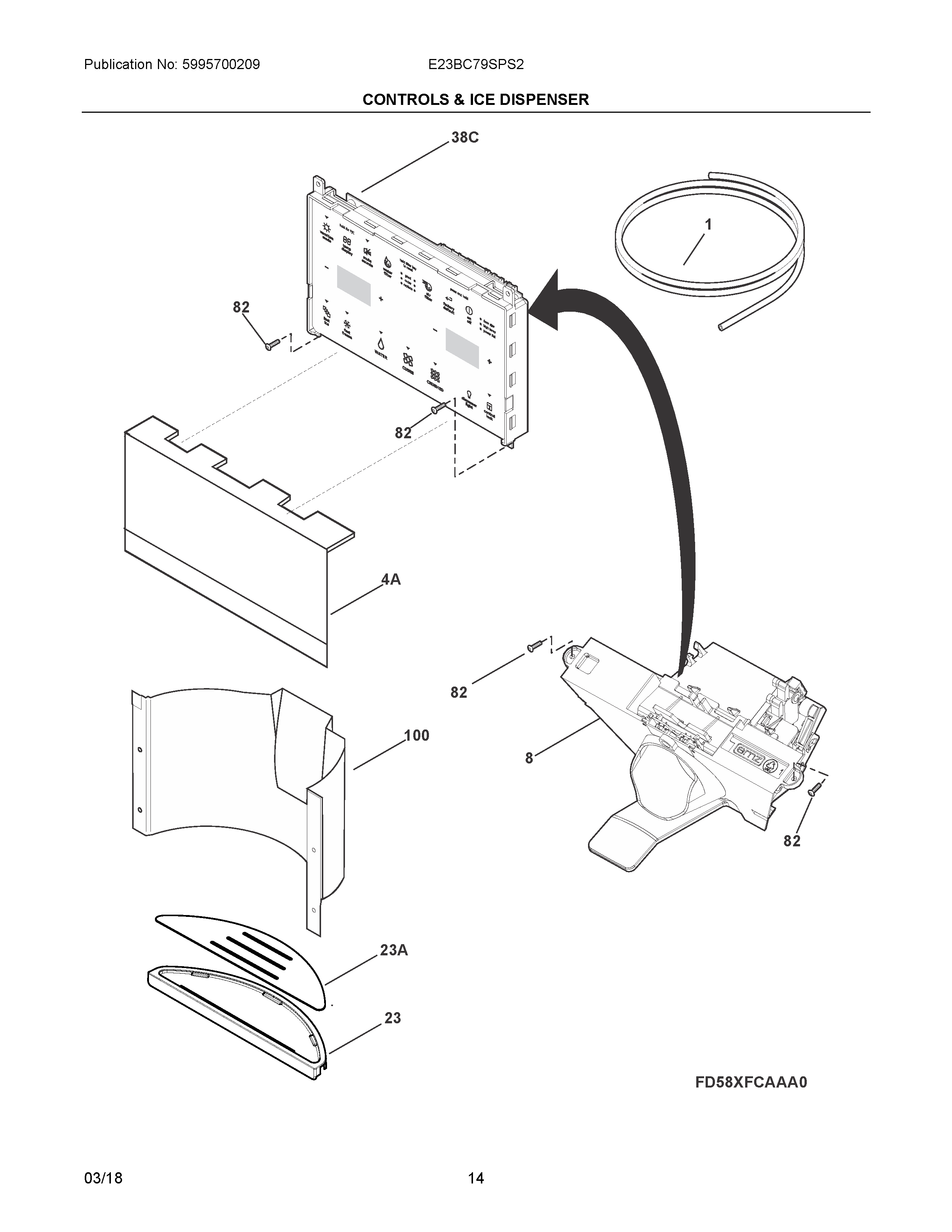

E23BC79SPS2 07 – CONTROLS & ICE DISPENSER

Products

Position	Product
NI	WCI 242040801
NI	241510904 Frigidaire Refrigerator Dispenser Harness
NIE	242200102 Frigidaire Refrigerator Clip
NIB	241920106 Frigidaire Fill Tube Kit
NIC	241964707 Frigidaire Refrigerator Water Tube
NID	241965907 Frigidaire Refrigerator Water Tube
1A	242220119 Frigidaire Refrigerator Water Tube
1	218976435 Frigidaire Refrigerator Water Inlet Tube
4A	241912101 Frigidaire Refrigerator Trim
8	242100024 Frigidaire Refrigerator Dispenser Module
23A	241987001 Frigidaire Refrigerator Drip Tray
23	241912301 Frigidaire Refrigerator Drip Tray
38C	5304510412 Frigidaire Refrigerator Control Assembly
82	241953902 Frigidaire Refrigerator Screw
100	241912201 Frigidaire Sump Liner
