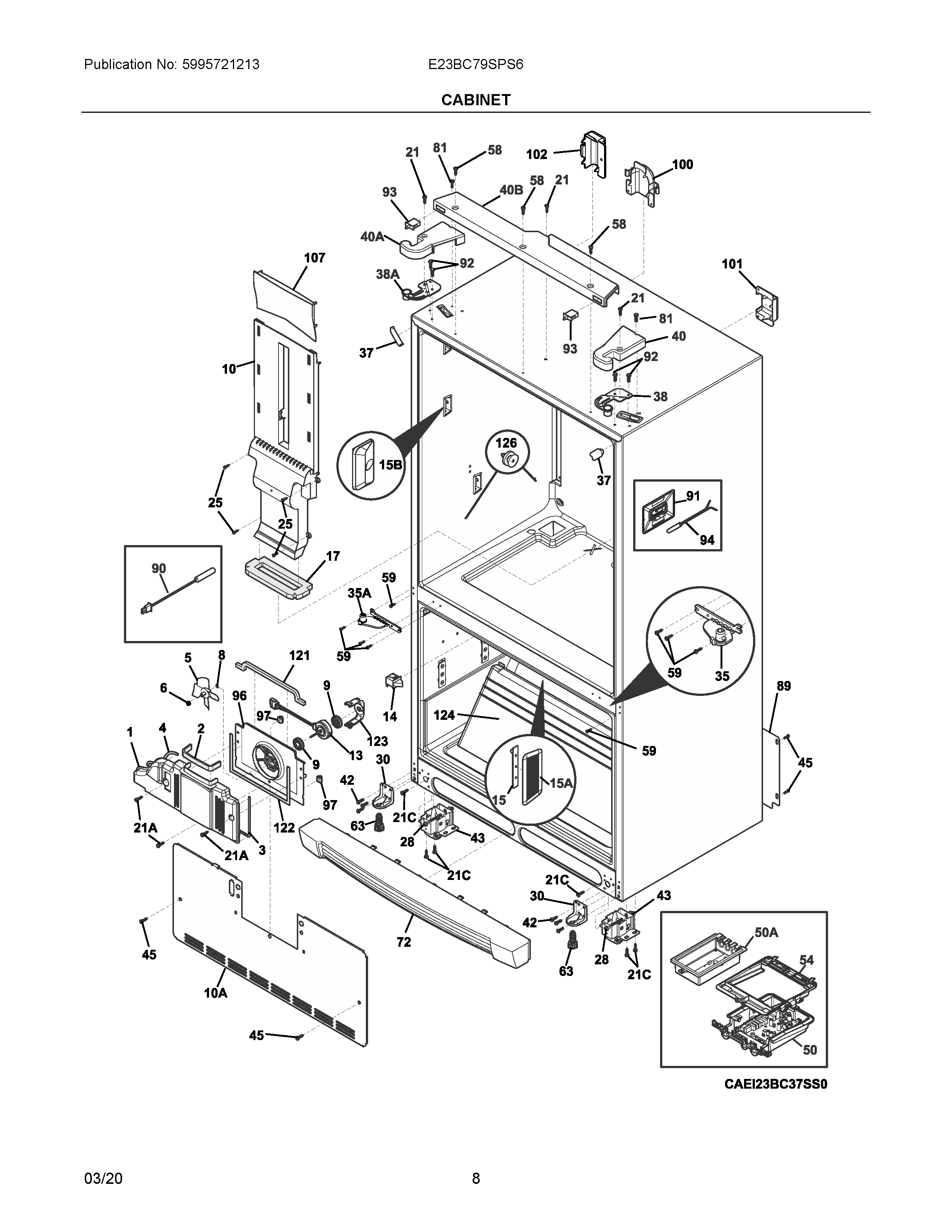

E23BC79SPS6 04 – CABINET

E23BC79SPS6 04 – CABINET

Written by

in

E23BC79SPS6 04 – CABINET

Products

PositionProduct
NIAA241860104 Frigidaire Refrigerator Coil Cover Gasket
NI5304453707 Frigidaire Oven Screw
NIAB241860105 Frigidaire Refrigerator Gasket-Coil Cover
NIA242285301 Frigidaire Clip
NIA5304521649 Frigidaire Refrigerator Wiring Harness
NI218362501 Frigidaire Refrigerator Screw
NIBA218515401 Frigidaire Refrigerator Clip
NI240494001 Frigidaire Refrigerator Plug Button
NI5304455650 Frigidaire Refrigerator Screw
NIA241842301 Frigidaire Refrigerator Thermistor Cap
NIB241953902 Frigidaire Refrigerator Screw
NIC241969001 Frigidaire Refrigerator Cap
15304503130 Frigidaire Refrigerator Cover
2218249809 Frigidaire Refrigerator Seal
3241860111 Frigidaire Refrigerator Evaporator Gasket
4241860112 Frigidaire Refrigerator Evaporator Gasket
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
65304508010 Frigidaire Refrigerator Spring
8215474201 Frigidaire Refrigerator Washer
95304508006 Frigidaire Refrigerator Bushing
10A241860402 Frigidaire Refrigerator Evaporator Coil Cover
105304508375 Frigidaire Refrigerator Tower-Air
13MOTOR
14242060202 Frigidaire Refrigerator Switch-Light/Lamp
15A242202701 Frigidaire Refrigerator Lens
15B5304508199 Frigidaire Refrigerator Light Assembly
155304525264 Frigidaire LED Light
175304508008 Frigidaire Refrigerator Gasket
21C218252201 Frigidaire Refrigerator Screw
21241732101 Frigidaire Refrigerator Screw
21A242015001 Frigidaire Refrigerator Screw
25240383407 Frigidaire Refrigerator Screw
30241778702 Frigidaire Refrigerator Bracket-Anti Tip
35A5304508045 Frigidaire Refrigerator Hinge Assembly
355304508044 Frigidaire Refrigerator Hinge Assembly
37242161206 Frigidaire Refrigerator Cabinet Corner Trim
38A241761302 Frigidaire Refrigerator Bracket-Upper Hinge
38241761301 Frigidaire Upper Bracket Hinge
40A5304504482 Frigidaire Refrigerator Left Hand Upper Hinge Cover Gray
40B241862405 Frigidaire Refrigerator Upper Hinge Cover
405304504483 Frigidaire Refrigerator Right Hand Upper Gray Hinge Cover
42240578902 Frigidaire Screw Mounting Hinge
435304499445 Frigidaire Refrigerator Roller Assembly
45241500303 Frigidaire Refrigerator Screw
50AA241891610 Frigidaire Refrigerator Power Board
505304513665 Frigidaire Refrigerator Main Power S/A Board
54807854301 Frigidaire Refrigerator Support
58241853202 Frigidaire Refrigerator Screw
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
63216396900 Frigidaire Dryer Adjustable Leveling Foot Leg
725304501186 Frigidaire Refrigerator Toe Grille Assembly
81134154100 Frigidaire Screw 10-32 x 0.375 Co
895304520905 Frigidaire Assembly Cover Refrigerator
90240597220 Frigidaire Sensor
915304508041 Frigidaire Refrigerator Cover
92241710601 Frigidaire Refrigerator Screw
93241835505 Frigidaire Refrigerator Light Switch
945303918775 Frigidaire Refrigerator Thermistor
95241530501 Frigidaire Refrigerator Humidity Sensor
97241860110 Frigidaire Refrigerator Gasket-Coil Cover
100242157601 Frigidaire Refrigerator Cover
101242157801 Frigidaire Refrigerator Cover
102242157501 Frigidaire Refrigerator Cover
107241963102 Frigidaire Refrigerator Duct-Air
121241860103 Frigidaire Refrigerator Gasket-Evaporator
122241860117 Frigidaire Gasket
1235304508007 Frigidaire Refrigerator Bracket
124242006903 Frigidaire Refrigerator Air Duct
1265304515677 Frigidaire Package of 4 Screws
