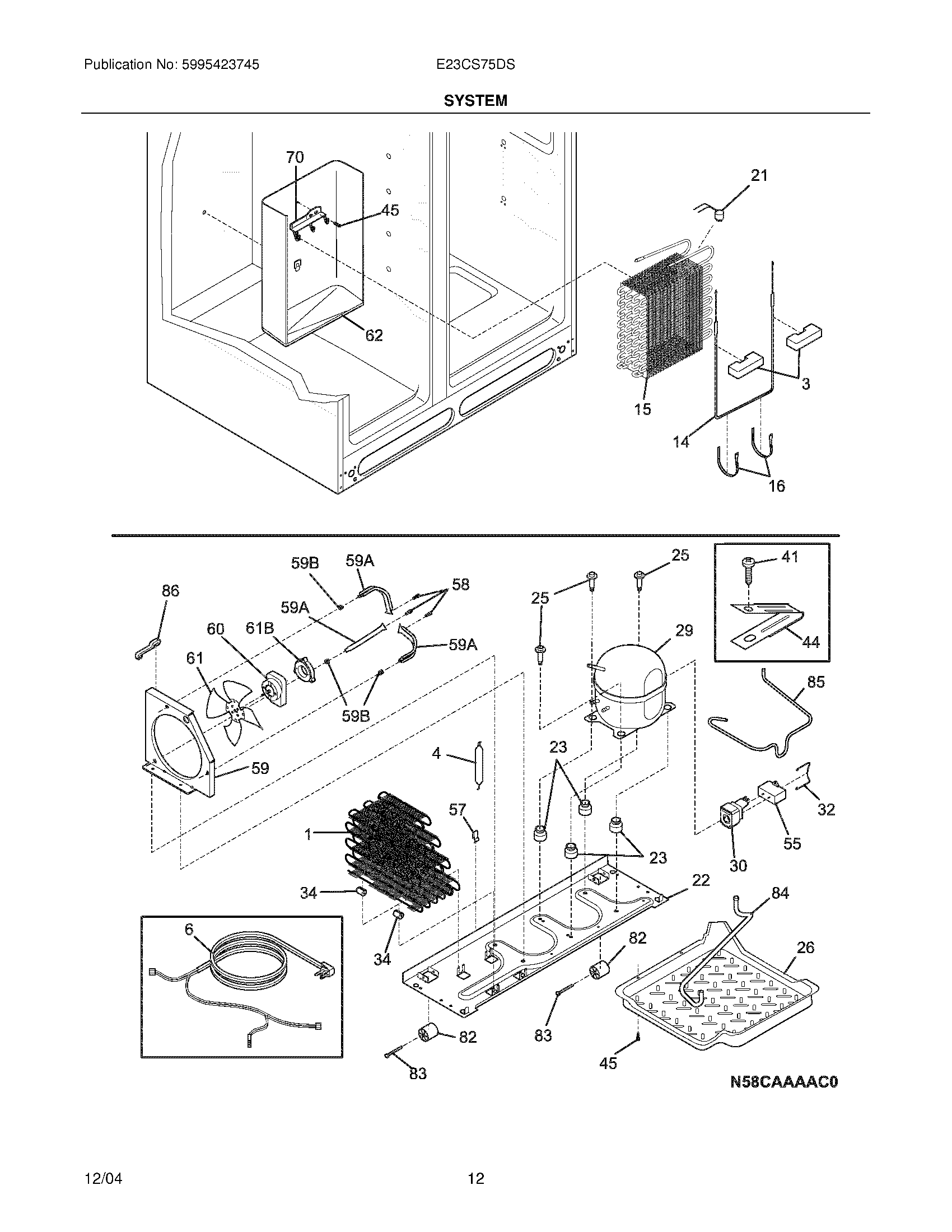

E23CS75DSS3 13 – SYSTEM

E23CS75DSS3 13 – SYSTEM

Written by

in

E23CS75DSS3 13 – SYSTEM

Products

PositionProduct
NI218252201 Frigidaire Refrigerator Screw
NI240346701 Frigidaire Refrigerator Foam Seal Tape
NIWCI 5303918222
NI241510802 Frigidaire Refrigerator Wiring Harness
NI240359403 Frigidaire Refrigerator Fan Shroud Screw
NIWCI 241520401
NIWCI 5303918300
NIWCI 241543701
NIWCI 240569501
15304526057 Frigidaire Refrigerator Condenser
3218679614 Frigidaire Refrigerator Evaporator Coil Block
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 241601701
14242044113 Frigidaire Refrigerator Defrost Heater Assembly
155303918284 Frigidaire Refrigerator Evaporator Kit P-1
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
215303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22WCI 240330008
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25Screw-compressor mtg,hex washer head ,
26WCI 241509201
295304475102 Frigidaire Refrigerator Compressor Kit
30297237702 Frigidaire Refrigerator Start Relay
32241544101 Frigidaire Refrigerator Clamp
34240405201 Frigidaire Refrigerator Grommet
41240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455650 Frigidaire Refrigerator Screw
55297286803 Frigidaire Refrigerator Run Capacitor
57240542601 Frigidaire Clip-WIRING Harness
58240569202 Frigidaire Refrigerator Screw
59WCI 240315501
59A240346501 Frigidaire Refrigerator Support Bracket
59BWCI 240346601
605304448483 Frigidaire Refrigerator Condenser Fan Motor
61241639502 Frigidaire Refrigerator Condenser Fan Blade
61BWCI 240564001
625304481642 Frigidaire Refrigerator Trough
70218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
825304418225 Frigidaire Refrigerator Roller P-1
835304455655 Frigidaire Refrigerator Rivet
84241957901 Frigidaire Refrigerator Tube-Drain
85241856901 Frigidaire Refrigerator Tube-Connector
86240409302 Frigidaire Refrigerator Condenser Tube Spacer
