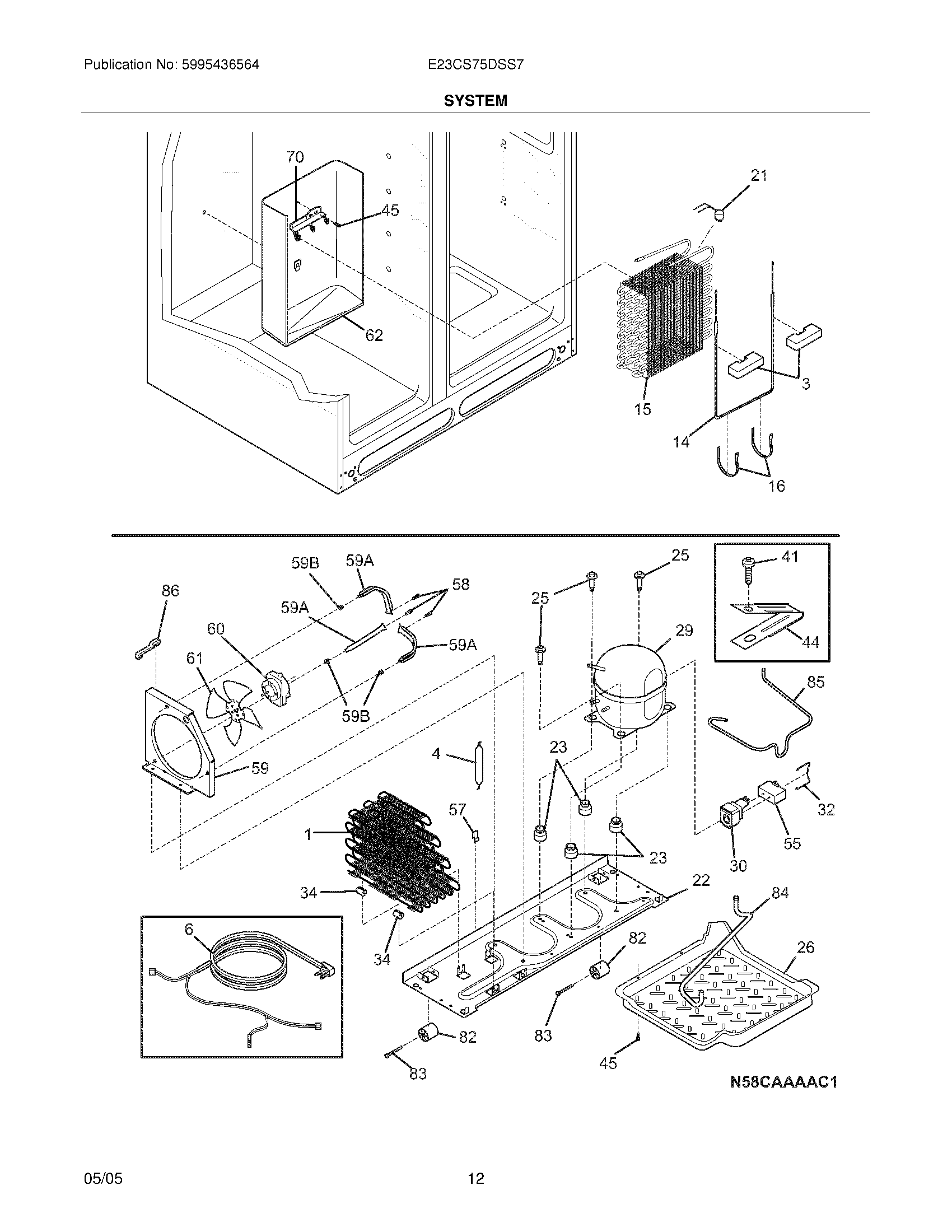

E23CS75DSS7 13 – SYSTEM

E23CS75DSS7 13 – SYSTEM

Written by

in

E23CS75DSS7 13 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	WCI 241635601
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	WCI 5303918222
NI	241510802 Frigidaire Refrigerator Wiring Harness
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	WCI 241520401
NI	WCI 5303918300
1	5304526057 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	242044113 Frigidaire Refrigerator Defrost Heater Assembly
15	5303918284 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22	WCI 240330008
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	Screw-compressor mtg,hex washer head ,
26	241697502 Frigidaire Pan-Defrost Drain
29	5304475102 Frigidaire Refrigerator Compressor Kit
30	297237702 Frigidaire Refrigerator Start Relay
32	241544101 Frigidaire Refrigerator Clamp
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
55	297286803 Frigidaire Refrigerator Run Capacitor
57	240542601 Frigidaire Clip-WIRING Harness
58	241953902 Frigidaire Refrigerator Screw
59B	WCI 240346601
59A	240346501 Frigidaire Refrigerator Support Bracket
59	241946105 Frigidaire Refrigerator Condenser Shroud
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304481642 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241957901 Frigidaire Refrigerator Tube-Drain
85	241856901 Frigidaire Refrigerator Tube-Connector
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
