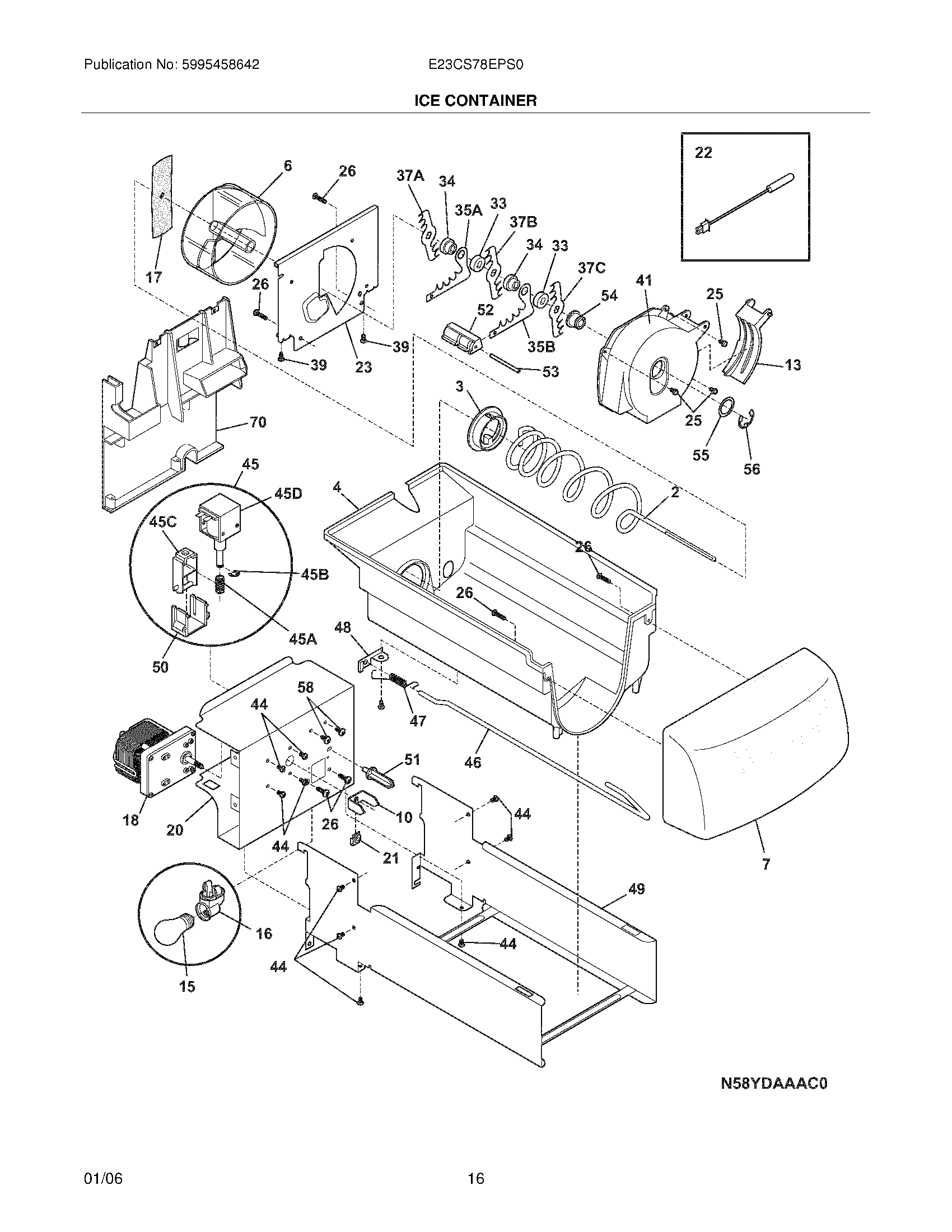

E23CS78EPS0 17 – ICE CONTAINER

E23CS78EPS0 17 – ICE CONTAINER

Written by

in

E23CS78EPS0 17 – ICE CONTAINER

Products

Position	Product
NI	240562101 Frigidaire Refrigerator P-1 Insulation
NI	WCI 5304404364
NI	241914702 Frigidaire Refrigerator Ice Container Assembly
NI	215005101 Frigidaire Refrigerator Screw
NI	241522901 Frigidaire Refrigerator Electrical Harness
NI	241519401 Frigidaire Refrigerator Clip
NI	WCI 241551601
2	241684701 Frigidaire Refrigerator Ice Auger
3	241685201 Frigidaire Refrigerator Drive Cam
4	241515202 Frigidaire Refrigerator Container
6	241685101 Frigidaire Refrigerator Ice Dispenser Drum
7	241515301 Frigidaire Refrigerator Cover
15	316538904 Frigidaire Oven Lamp Light
16	241559801 Frigidaire Light Socket Refrigerator
17	241684503 Frigidaire Ice Crusher Blade
18	5304462594 Frigidaire Refrigerator Motor-Auger
20	WCI 5304404332
21	241726501 Frigidaire Refrigerator Drive Bar
22	240597220 Frigidaire Sensor
23	241684001 Frigidaire Refrigerator Plate-Front
25	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
26	215503203 Frigidaire Refrigerator Door Handle Screw
33	241684802 Frigidaire Refrigerator Spacer
34	241689802 Frigidaire Refrigerator Spacer
35A	241684303 Frigidaire Refrigerator Fixed Blade
35B	241684203 Frigidaire Refrigerator Fixed Blade
37B	241684108 Frigidaire Washer Poly V-Belt
37C	241684109 Frigidaire Ice Crusher Blade
37A	241684107 Frigidaire Refrigerator Ice Crusher Blade
39	241690501 Frigidaire Refrigerator Screw
41	241885001 Frigidaire Refrigerator Ice Crusher Housing
44	WCI 218359200
45D	241675803 Frigidaire Refrigerator Freezer Ice Dispenser Solenoid
45B	241676001 Frigidaire Refrigerator E-Ring Solenoid
45C	241676101 Frigidaire Refrigerator Solenoid-Actuator
45	241675704 Frigidaire Refrigerator Solenoid Assembly
45A	241675902 Frigidaire Refrigerator Solenoid Spring
46	WCI 5304436635
47	WCI 5304404342
48	241684602 Frigidaire Refrigerator Control Rod Bracket
49	WCI 5304436702
50	241675601 Frigidaire Refrigerator Solenoid Guide
51	WCI 5304404336
52	241684901 Frigidaire Refrigerator Spacer-Fixed Blades
53	241690402 Frigidaire Refrigerator Pin-Spiral
54	241685001 Frigidaire Auger Nut
55	241690306 Frigidaire Refrigerator Washer
56	241690201 Frigidaire Refrigerator E-Ring
58	WCI 5304404331
70	WCI 241504601
