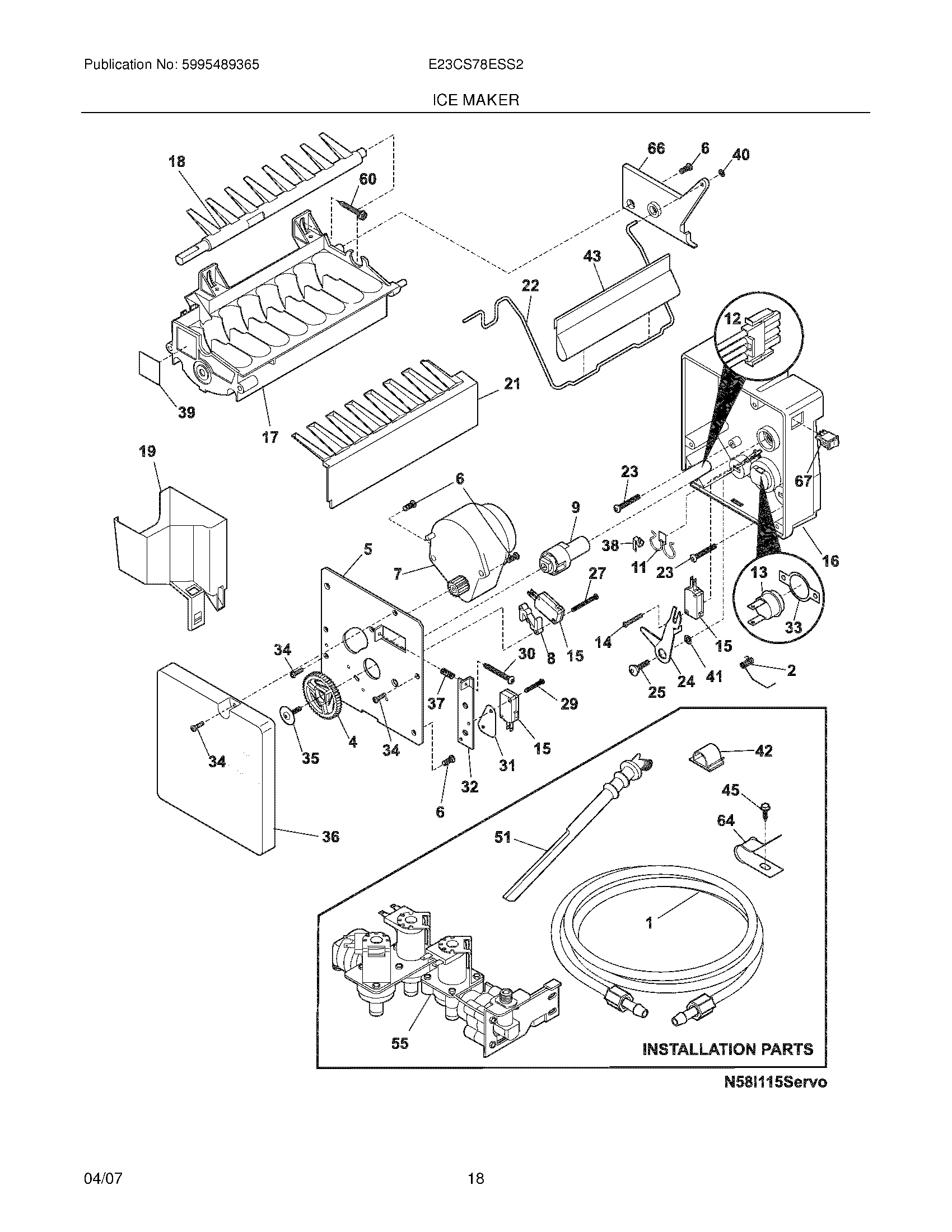

E23CS78ESS2 19 – ICE MAKER

Products

Position	Product
NI	218976901 Frigidaire Refrigerator P1-Water Inlet Tube
NI	241806601 Frigidaire Refrigerator Water Connector
NI	240363602 Frigidaire Refrigerator Shoulder Screw
NI	5304456660 Frigidaire Screw
NI	WCI 218976917
NI	240561701 Frigidaire Refrigerator Seal
NI	5304456689 Frigidaire Refrigerator Washer
NI	241583301 Frigidaire Refrigerator P-1 Deflector-Air
NI	Adapter-water supply,nut & sleeve ,
NI	218976903 Frigidaire Refrigerator Water Inlet Tube P-1
NI	5303918344 Frigidaire Refrigerator Kit Ice Maker
NI	Wiring Harness,ice maker ,internal ,
NI	240542901 Frigidaire Water Valve Cap
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
1	218976409 Frigidaire Refrigerator Water Tube
2	WCI 5304456650
4	WCI 5304458380
5	WCI 5304458383
6	WCI 5304458386
7	WCI 5304458382
8	WCI 5304458388
9	WCI 5304456662
11	5304458400 Frigidaire Refrigerator Thermal Cutoff
12	5304458379 Frigidaire Refrigerator Wiring Harness
13	5304456665 Frigidaire Refrigerator Thermostat
14	WCI 5304458384
15	5304456667 Frigidaire Refrigerator Micro Switch
16	WCI 5304458395
17	241798231 Frigidaire Refrigerator Ice Maker Assembly
18	WCI 5304458377
19	WCI 5304458378
21	5304458390 Frigidaire Refrigerator Ice Stripper
22	WCI 5304458375
23	WCI 5304458394
24	WCI 5304458391
25	WCI 5304456676
27	WCI 5304458385
29	WCI 5304458393
30	WCI 5304458387
31	WCI 5304458381
32	5304456681 Frigidaire Plate-VALVE SWITCH
33	WCI 5304458403
34	5304456678 Frigidaire Screw
35	5304456684 Frigidaire Screw
36	WCI 5304458376
37	WCI 5304456682
38	WCI 5304458398
39	WCI 5304458399
40	WCI 5304458401
41	WCI 5304458389
42	218515403 Frigidaire Refrigerator Clip-Grille
43	241720601 Frigidaire Refrigerator Extension
45	5304455650 Frigidaire Refrigerator Screw
51	241796406 Frigidaire Refrigerator Water Fill Tube
55	242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
60	5304455651 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
66	WCI 5304458374
67	5304465210 Frigidaire Refrigerator Switch Kit
