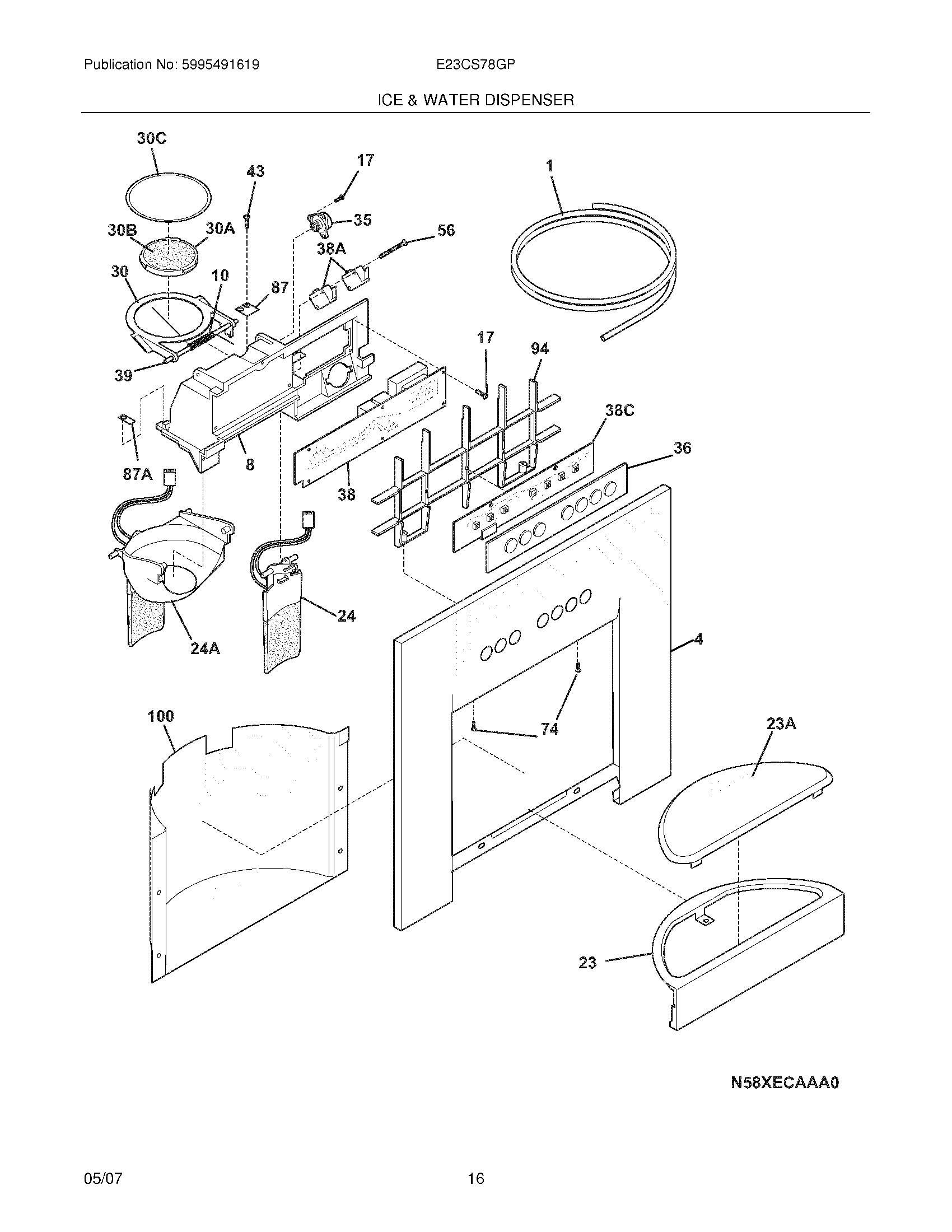

E23CS78GPS2 15 – ICE & WATER DISPENSER

Products

Position	Product
NI	5304453707 Frigidaire Oven Screw
NI	WCI 241686201
NI	218515403 Frigidaire Refrigerator Clip-Grille
NI	218976418 Frigidaire Refrigerator Water Inlet Tube
NI	218976421 Frigidaire Refrigerator Water Inlet Tube
NI	5303918256 Frigidaire Refrigerator Heater Kit Dispenser
NI	241850615 Frigidaire Ice Maker Fill Tube Assembly
NI	240561701 Frigidaire Refrigerator Seal
NI	241510902 Frigidaire Refrigerator Dispenser Harness
NI	WCI 241533401
1	218976409 Frigidaire Refrigerator Water Tube
4	WCI 241533207
8	WCI 241680504
10	241688901 Frigidaire Refrigerator Torsion Spring
17	241679801 Frigidaire Screw
23	241531102 Frigidaire Refrigerator Drip Tray
23A	WCI 241531601
24A	241682304 Frigidaire Refrigerator Actuator-Ice
24	241685704 Frigidaire Refrigerator Actuator
30A	241688501 Frigidaire Refrigerator Door Center
30	241688401 Frigidaire Ice Door Bracket
30C	241688701 Frigidaire Refrigerator Door Seal
30B	241688601 Frigidaire Refrigerator Door Insulation
35	241689301 Frigidaire Refrigerator Rotary Damper
36	241533501 Frigidaire Refrigerator Button
38C	WCI 241527501
38C	WCI 241680001
38	241527601 Frigidaire Refrigerator Board Switch
38A	241689106 Frigidaire Refrigerator Micro Switch
39	241688801 Frigidaire Refrigerator Pin-Hinge
43	WCI 215296301
56	241689201 Frigidaire Refrigerator Screw-Micro Switch
74	WCI 241720001
87	241688302 Frigidaire Refrigerator Bearing Plate
87A	241688301 Frigidaire Refrigerator Bearing Plate
94	WCI 241533301
100	WCI 241530402
