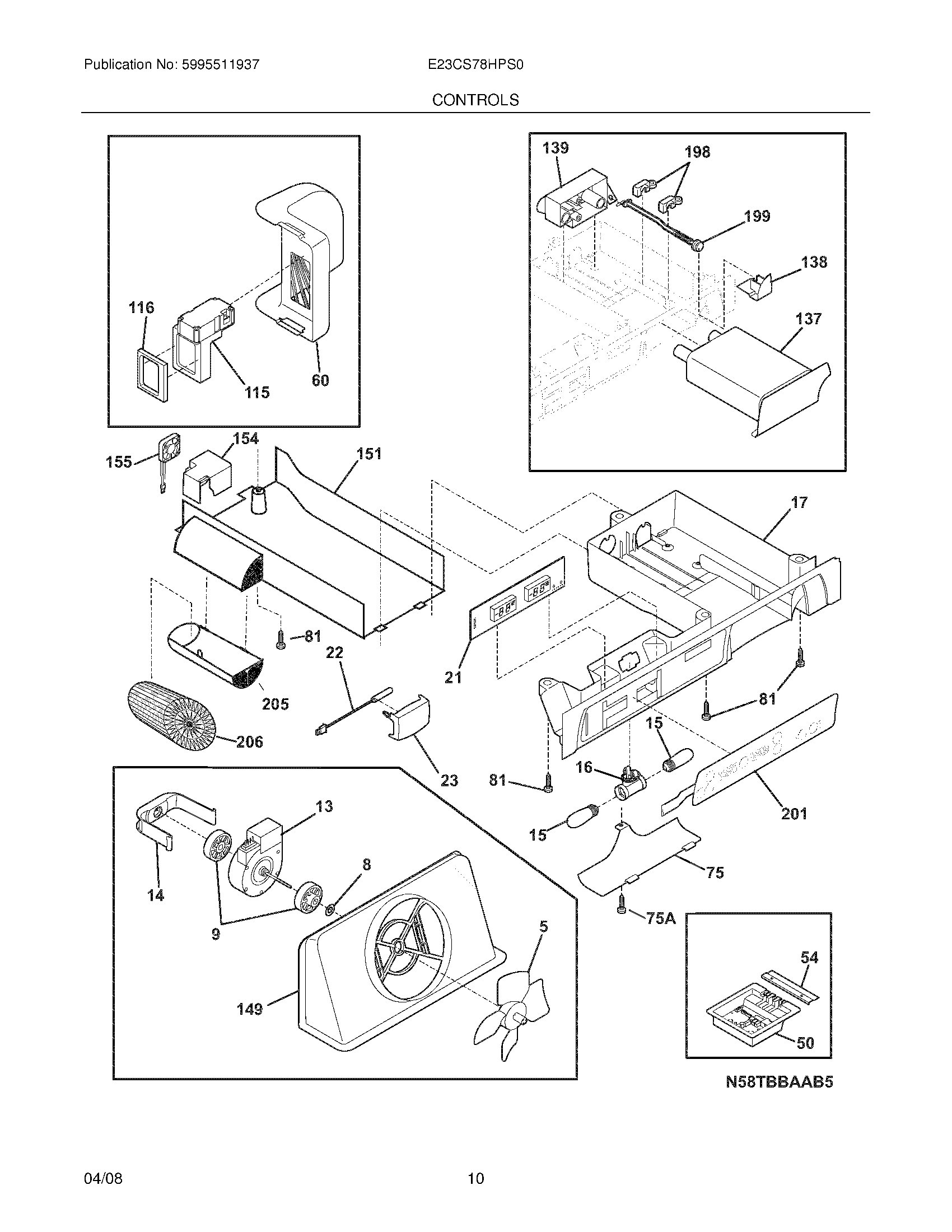

E23CS78HPS0 11 – CONTROLS

Products

Position	Product
NI	WCI 7241510501
NI	WCI 7241532501
NI	WCI 7241524802
NI	241510802 Frigidaire Refrigerator Wiring Harness
NI	3205266 Frigidaire Refrigerator Edge Protector
NI	5304455649 Frigidaire Refrigerator Screw
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	215474201 Frigidaire Refrigerator Washer
9	241518301 Frigidaire Refrigerator Bushing
13	MOTOR,EVAPORATOR FAN
14	242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
15	5304517886 Frigidaire Refrigerator Light
16	241622802 Frigidaire Refrigerator Socket-Light
21	WCI 7241528201
22	240597220 Frigidaire Sensor
23	241512901 Frigidaire Refrigerator Cover-Sensor
50	WCI 7241511102
54	241532401 Frigidaire Refrigerator Channel
60	WCI 7241510301
75A	5304455650 Frigidaire Refrigerator Screw
75	WCI 7241517802
81	218843801 Frigidaire Refrigerator Screw
115	5303918899 Frigidaire Damper Control Assembly
116	241518601 Frigidaire Refrigerator Damper Seal
137	242227702 Frigidaire Refrigerator Bypass Water Filter
137	WCI 7240396405
139	240396002 Frigidaire Refrigerator Primary Base Water Filter
139	WCI 7240526901
149	242204504 Frigidaire SHROUD AssemblyY
149	WCI 7241528304
151	WCI 7241526001
154	WCI 7241525801
155	WCI 7241527202
155	WCI 7241526102
198	240397401 Frigidaire Refrigerator Retainer Assembly
199	240398401 Frigidaire Refrigerator Filter Release Spring
199	WCI 7240397501
201	WCI 7240596910
205	WCI 7241525901
206	WCI 7241504902
