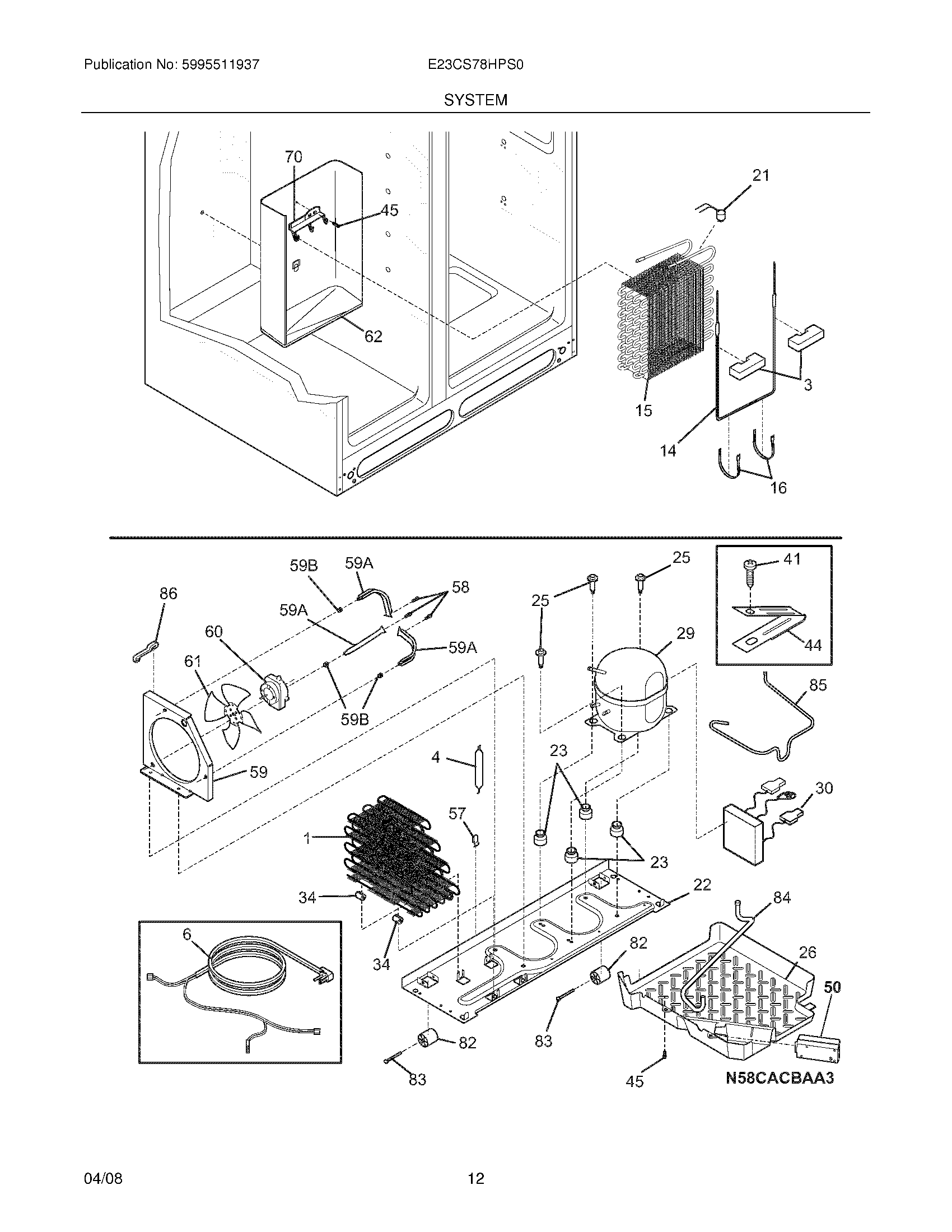

E23CS78HPS0 13 – SYSTEM

Products

Position	Product
NI	218252201 Frigidaire Refrigerator Screw
NI	240346701 Frigidaire Refrigerator Foam Seal Tape
NI	5303918327 Frigidaire Refrigerator Heat Exchanger Kit
NI	241510802 Frigidaire Refrigerator Wiring Harness
NI	WCI 7241520403
NI	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	WCI 7241636203
NI	WCI 75303918222
NI	WCI 7241527202
NI	5304453707 Frigidaire Oven Screw
1	5304526057 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4	WCI 7218944001
6	241516904 Frigidaire Refrigerator Service Cord
14	242044113 Frigidaire Refrigerator Defrost Heater Assembly
15	5303918284 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22	WCI 7240330011
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 7240491503
26	241697502 Frigidaire Pan-Defrost Drain
29	5304475104 Frigidaire Refrigerator Compressor Kit
30	241577501 Frigidaire Refrigerator Inverter
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	WCI 7215174700
45	5304455650 Frigidaire Refrigerator Screw
57	240542601 Frigidaire Clip-WIRING Harness
58	241953902 Frigidaire Refrigerator Screw
59	WCI 7240315502
59A	240346501 Frigidaire Refrigerator Support Bracket
59B	WCI 7240346601
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304481642 Frigidaire Refrigerator Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241957901 Frigidaire Refrigerator Tube-Drain
85	241856901 Frigidaire Refrigerator Tube-Connector
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
