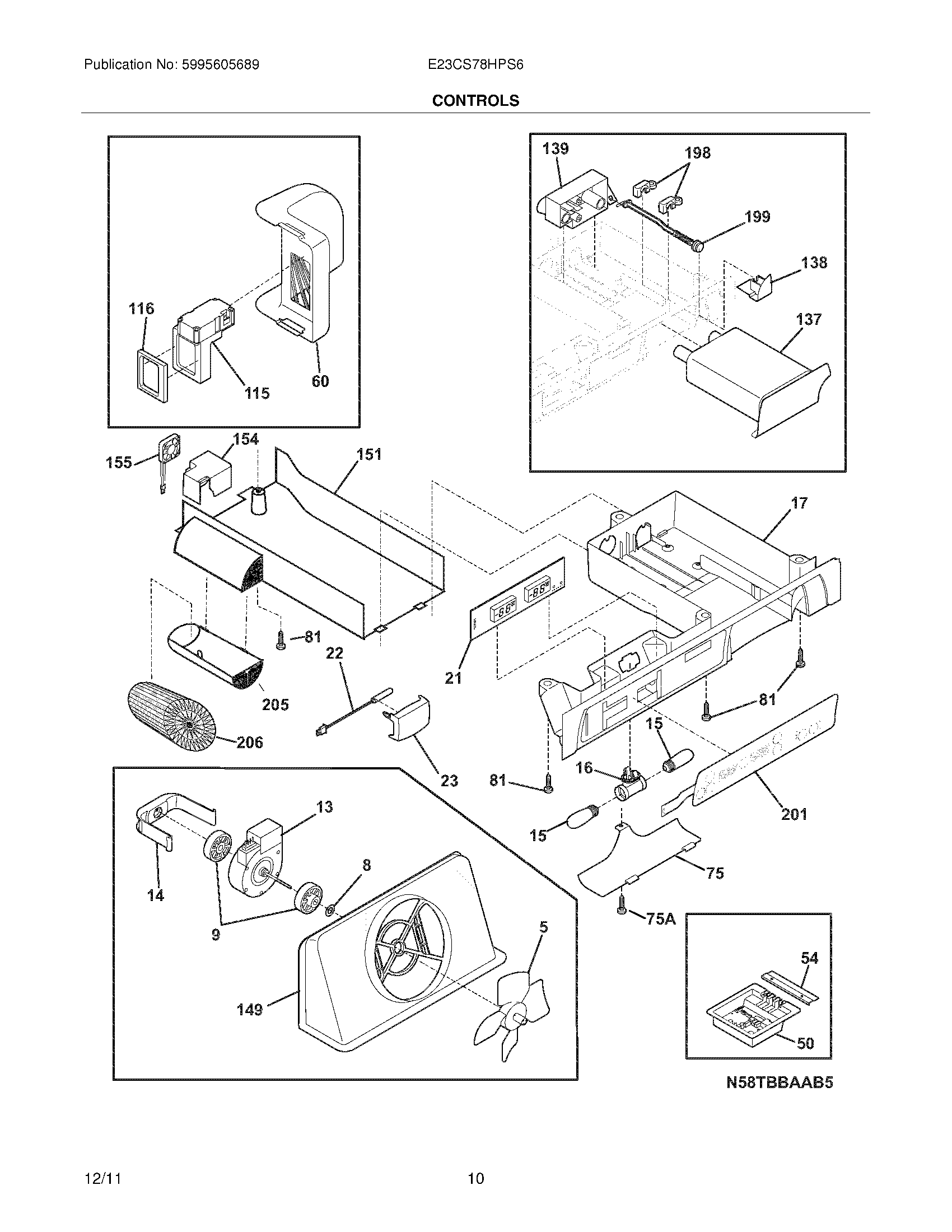

E23CS78HPS6 11 – CONTROLS

E23CS78HPS6 11 – CONTROLS

Written by

in

E23CS78HPS6 11 – CONTROLS

Products

PositionProduct
NIWCI 241510501
NI3205266 Frigidaire Refrigerator Edge Protector
NI5304455649 Frigidaire Refrigerator Screw
NI241510802 Frigidaire Refrigerator Wiring Harness
NIWCI 241532501
NIWCI 241537401
NIWCI 241524802
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
8215474201 Frigidaire Refrigerator Washer
9241518301 Frigidaire Refrigerator Bushing
13MOTOR,EVAPORATOR FAN
14242135301 Frigidaire Refrigerator Evaporator Motor Clip, Freezer
155304517886 Frigidaire Refrigerator Light
16241622802 Frigidaire Refrigerator Socket-Light
17WCI 241516201
21241528204 Frigidaire Refrigerator Temperature Control
22240597220 Frigidaire Sensor
23241512901 Frigidaire Refrigerator Cover-Sensor
50WCI 241511112
54241532401 Frigidaire Refrigerator Channel
60WCI 241510301
75WCI 241517802
75A5304455650 Frigidaire Refrigerator Screw
81218843801 Frigidaire Refrigerator Screw
1155303918899 Frigidaire Damper Control Assembly
116241518601 Frigidaire Refrigerator Damper Seal
137242227702 Frigidaire Refrigerator Bypass Water Filter
137EWF2CBPA Frigidaire Refrigerator Pure Advantage Water Filter
138WCI 240397301
139240396002 Frigidaire Refrigerator Primary Base Water Filter
139240527001 Frigidaire Refrigerator O-Ring N
149241528303 Frigidaire Refrigerator Seal
149242204504 Frigidaire SHROUD AssemblyY
151WCI 241526001
154WCI 241525801
155WCI 241527202
155WCI 241526102
198240397401 Frigidaire Refrigerator Retainer Assembly
199WCI 240397501
199240398401 Frigidaire Refrigerator Filter Release Spring
201WCI 240596910
205WCI 241525901
206AFCB Frigidaire Refrigerator Air Filter
