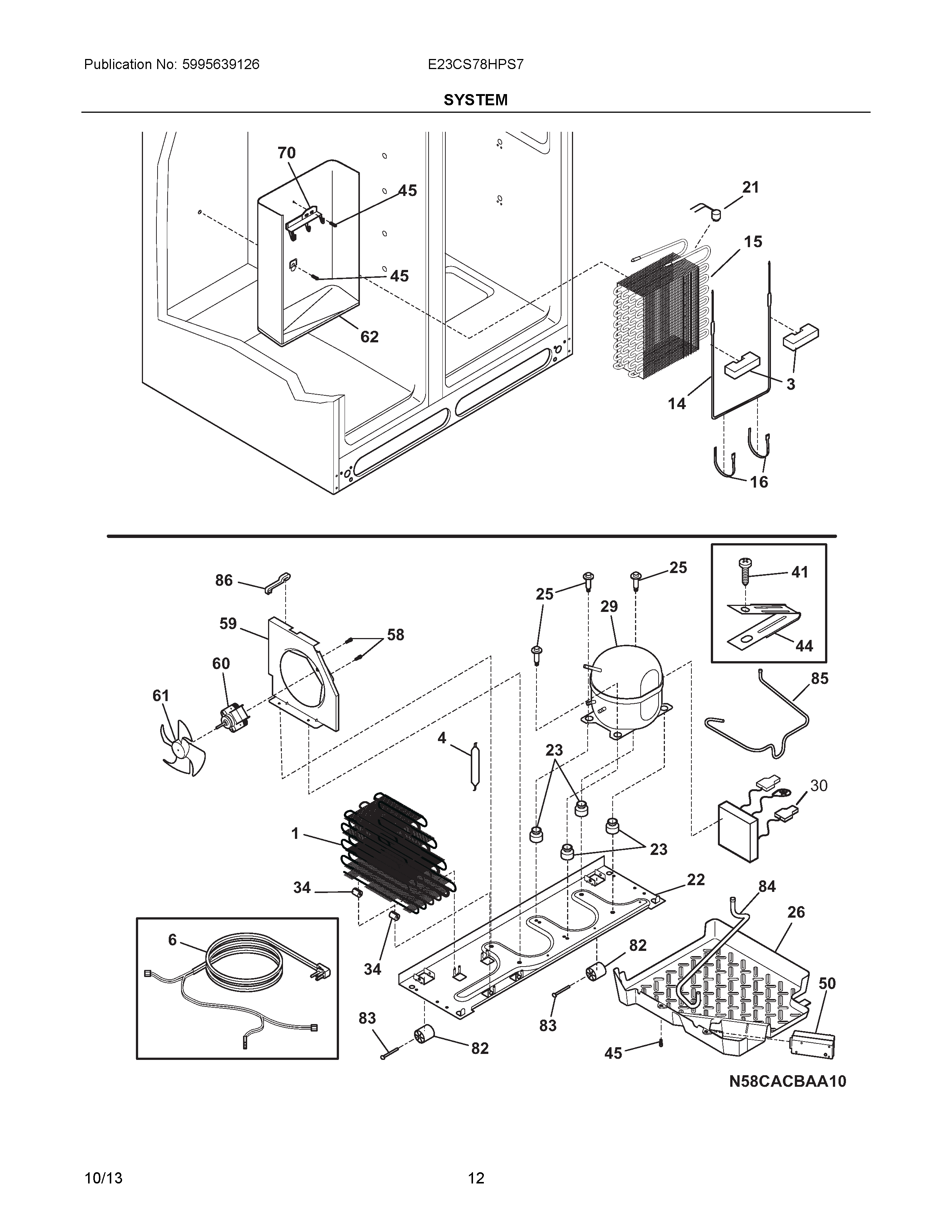

E23CS78HPS7 07 – SYSTEM

Products

Position	Product
NIA	218252201 Frigidaire Refrigerator Screw
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
NIA	5304453707 Frigidaire Oven Screw
NI	WCI 5303918222
NI	5303918327 Frigidaire Refrigerator Heat Exchanger Kit
NIB	WCI 241520403
NID	HARNESS-WIRING, MACHINE COMPT
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIC	WCI 241527202
NIA	241510802 Frigidaire Refrigerator Wiring Harness
1	5304526057 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	242044113 Frigidaire Refrigerator Defrost Heater Assembly
15	5303918284 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5303918214 Frigidaire Refrigerator Defrost Thermostat Kit
22	WCI 240330012
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
25	WCI 240491503
26	241697502 Frigidaire Pan-Defrost Drain
29	5304475104 Frigidaire Refrigerator Compressor Kit
30	241577505 Frigidaire Refrigerator Inverter
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	5304455650 Frigidaire Refrigerator Screw
50	WCI 241635501
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	5304532798 Frigidaire Refrigerator Drain Trough
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
84	241830905 Frigidaire Lower Drain Tube
85	TUBE-CONNECTOR, SUCTION
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
