E23CS78HSS0 19 – ICE MAKER

E23CS78HSS0 19 – ICE MAKER

Written by

in

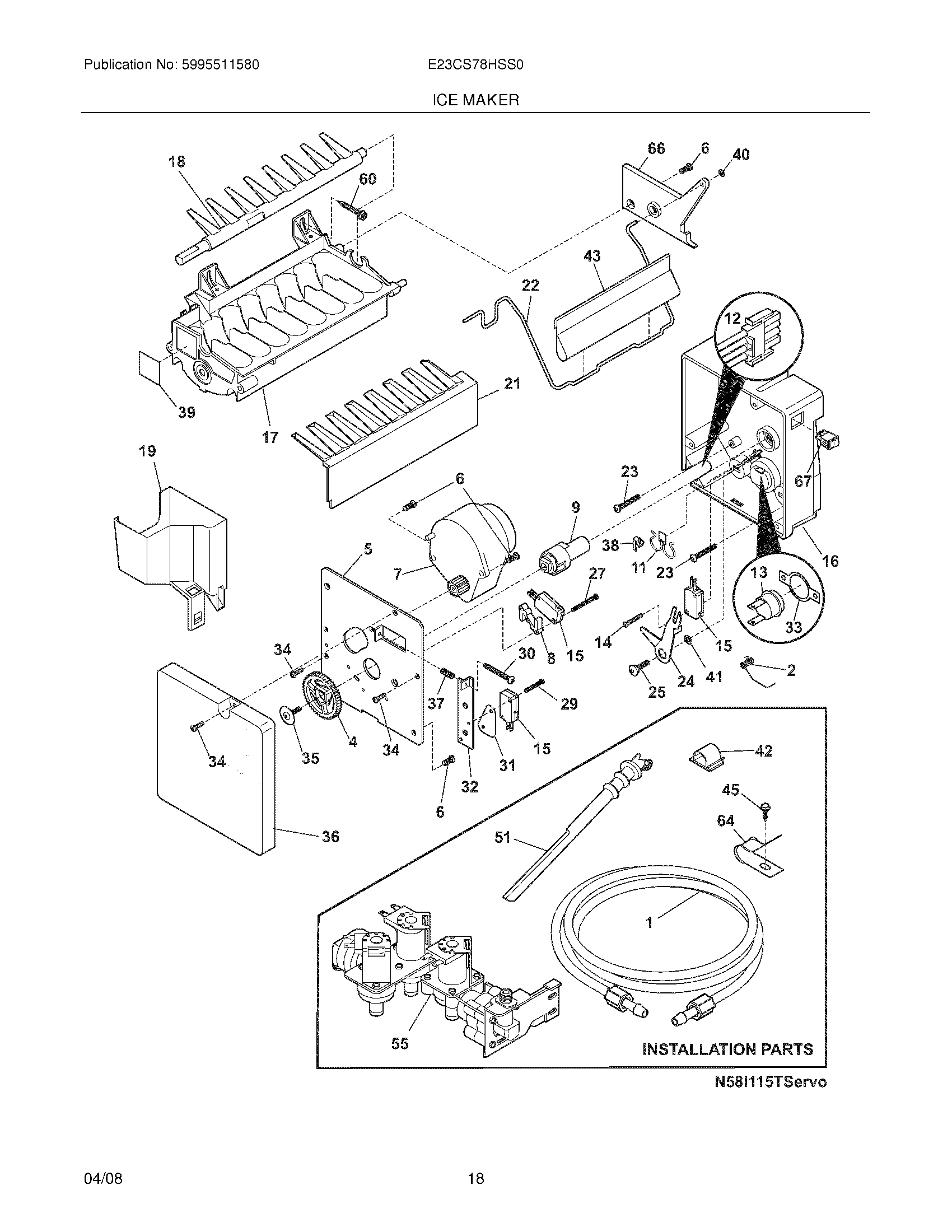

E23CS78HSS0 19 – ICE MAKER

Products

Position	Product
NI	240542901 Frigidaire Water Valve Cap
NI	5304456660 Frigidaire Screw
NI	5304456689 Frigidaire Refrigerator Washer
NI	241806601 Frigidaire Refrigerator Water Connector
NI	240363602 Frigidaire Refrigerator Shoulder Screw
NI	218976421 Frigidaire Refrigerator Water Inlet Tube
NI	241583301 Frigidaire Refrigerator P-1 Deflector-Air
NI	5303918344 Frigidaire Refrigerator Kit Ice Maker
NI	218976418 Frigidaire Refrigerator Water Inlet Tube
NI	241850615 Frigidaire Ice Maker Fill Tube Assembly
NI	WCI 7240352601
NI	240561701 Frigidaire Refrigerator Seal
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
1	218976409 Frigidaire Refrigerator Water Tube
2	WCI 75304459922
4	WCI 75304458380
5	WCI 75304458383
6	WCI 75304458386
7	WCI 75304458382
8	WCI 75304458388
9	WCI 75304456662
11	5304458400 Frigidaire Refrigerator Thermal Cutoff
12	5304458379 Frigidaire Refrigerator Wiring Harness
13	5304456665 Frigidaire Refrigerator Thermostat
14	WCI 75304458384
15	5304456667 Frigidaire Refrigerator Micro Switch
16	WCI 75304458395
17	241798231 Frigidaire Refrigerator Ice Maker Assembly
18	WCI 75304458377
19	WCI 75304458378
21	5304458390 Frigidaire Refrigerator Ice Stripper
22	WCI 75304458375
23	WCI 75304458394
24	WCI 75304458391
25	WCI 75304456676
27	WCI 75304458385
29	WCI 75304458393
30	WCI 75304458387
31	WCI 75304458381
32	5304456681 Frigidaire Plate-VALVE SWITCH
33	WCI 75304458403
34	5304456678 Frigidaire Screw
35	5304456684 Frigidaire Screw
36	WCI 75304458376
37	WCI 75304456682
38	WCI 75304458398
39	WCI 75304458399
40	WCI 75304458401
41	WCI 75304458389
42	218515403 Frigidaire Refrigerator Clip-Grille
43	241720601 Frigidaire Refrigerator Extension
45	5304455650 Frigidaire Refrigerator Screw
51	241796406 Frigidaire Refrigerator Water Fill Tube
55	242252702 Frigidaire Refrigerator Water Inlet Valve Triple Solenoid
60	5304455651 Frigidaire Refrigerator Screw
64	5304455846 Frigidaire Refrigerator Clamp
66	WCI 75304458374
67	5304465210 Frigidaire Refrigerator Switch Kit
