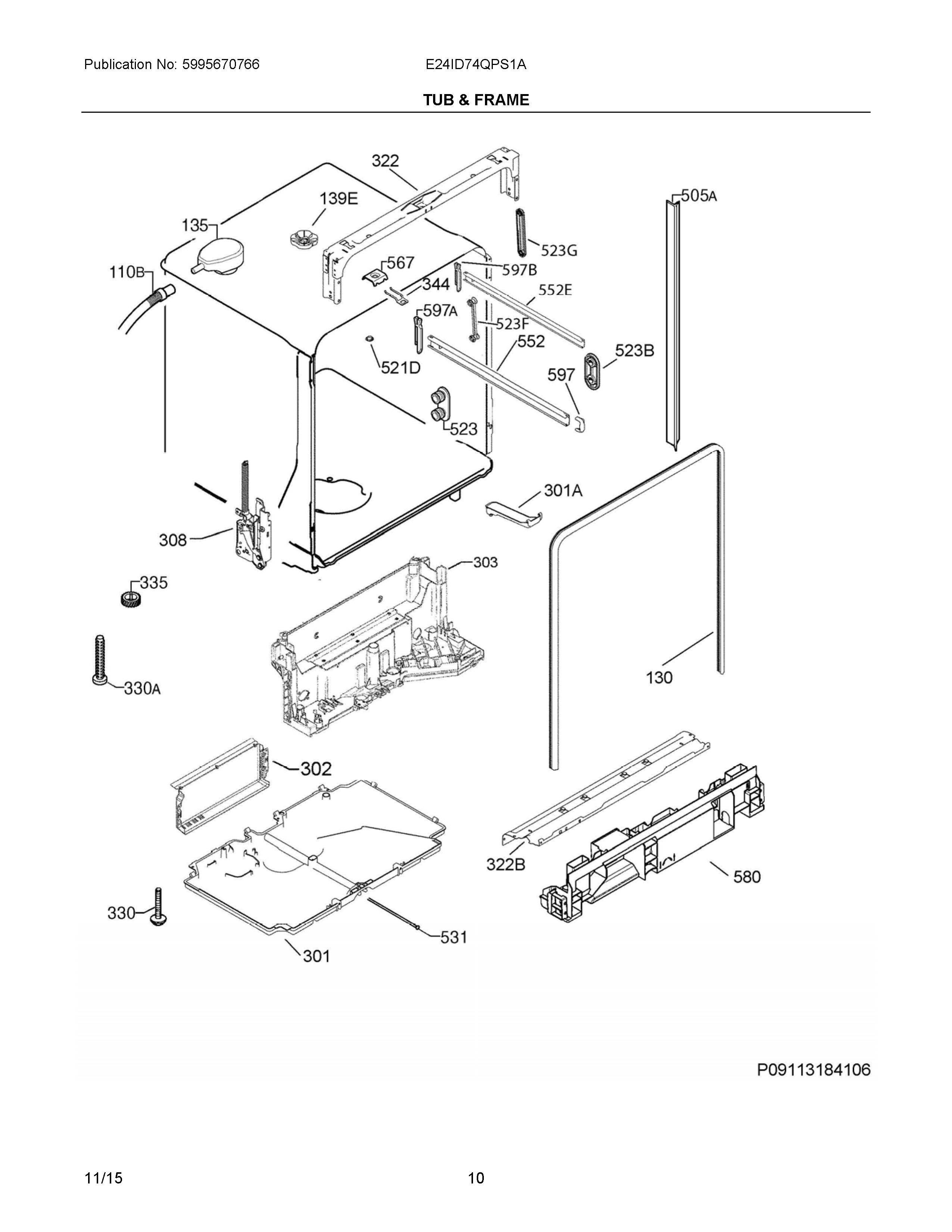

E24ID74QPS1A 06 – TUB & FRAME

E24ID74QPS1A 06 – TUB & FRAME

Written by

in

E24ID74QPS1A 06 – TUB & FRAME

Products

PositionProduct
NIWCI A00081801
NI405531515 Frigidaire Dishwasher Mounting Kit
NI405530687 Frigidaire Screw
NI117427700 Frigidaire Dishwasher Clip
110BWCI 117281421
130117158011 Frigidaire Dishwasher Door Seal Gasket
135WCI 117145823
139E807240301 Frigidaire Dishwasher Nut
301A405513837 Frigidaire Dishwasher OVERFlow Hose
301807104203 Frigidaire Dishwasher Tray
302A00075002 Frigidaire Dishwasher Cover
303WCI 807104103
308405528816 Frigidaire Dishwasher Hinge Assembly
322B117156109 Frigidaire Cross Piece
322A00166801 Frigidaire Dishwasher Crossbar
330117368700 Frigidaire Dishwasher Foot
330A117363200 Frigidaire Dishwasher Foot
335152714200 Frigidaire Dishwasher COG
344152234405 Frigidaire Dishwasher Latch
505A808470401 Frigidaire Dishwasher Trim
521D152657610 Frigidaire PLUG
523FROLLER KIT, TUB, TOP LH-RH
523405526079 Frigidaire Dishwasher Roller Assembly
523GA00204701 Frigidaire Dishwasher Holder
523B152122010 Frigidaire Dishwasher Holder
531A00021003 Frigidaire Dishwasher Screw
552E807085002 Frigidaire Rail
552A00212701 Frigidaire Dishwasher Rail
567152323603 Frigidaire Dishwasher Bracket
580WCI 807104305
597B807070701 Frigidaire Dishwasher Stop Assembly
597A646123406 Frigidaire Dishwasher Stop
597152047941 Frigidaire Dishwasher STOP
