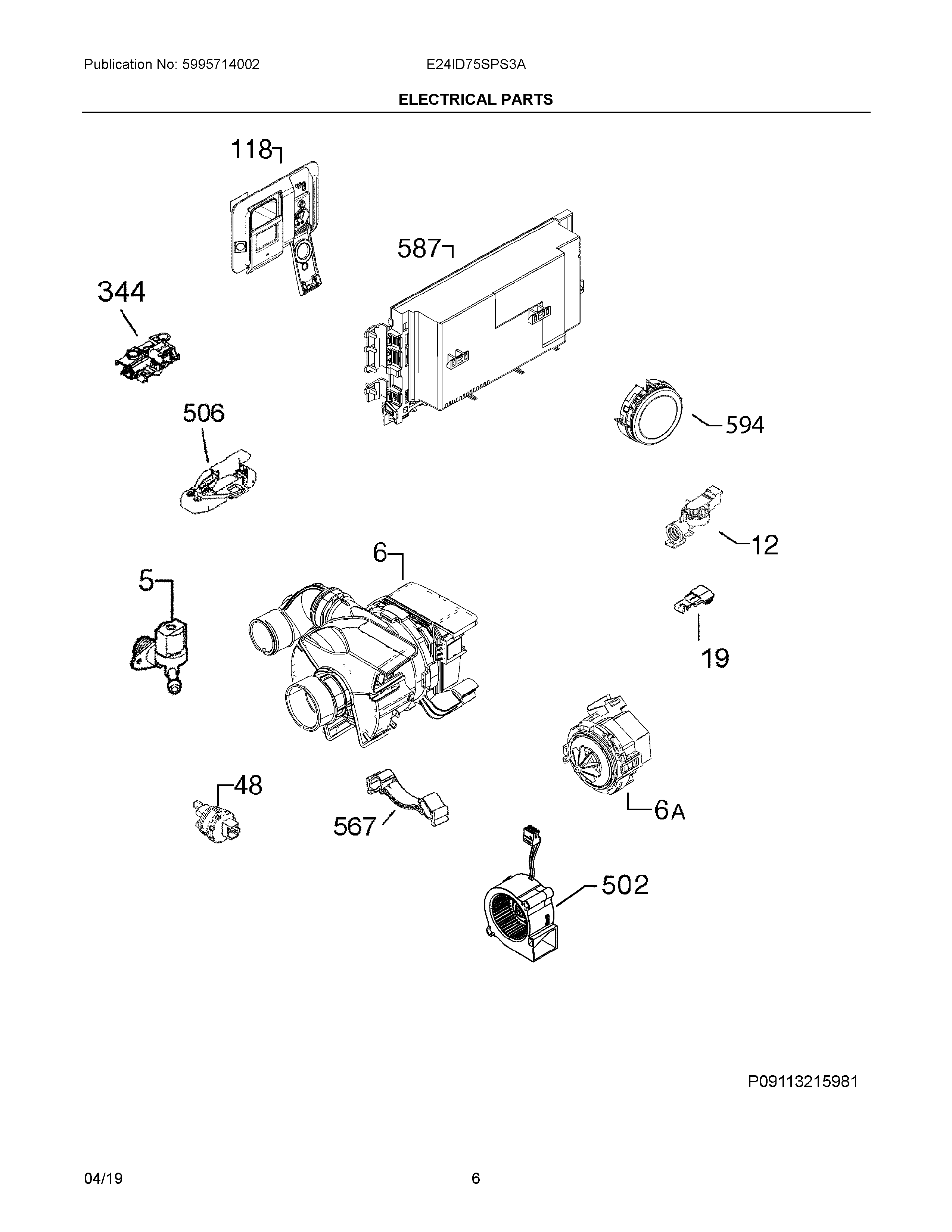

E24ID75SPS3A 04 – ELECTRICAL PARTS

Products

Position	Product
NI	A04233303 Frigidaire Dishwasher Harness
NI	A02719801 Frigidaire Dishwasher Harness
NI	A00233431 Frigidaire Dishwasher Harness
NI	807555203 Frigidaire Dishwasher Harness
5	807445905 Frigidaire Dishwasher Valve
6	A00223923 Frigidaire Dishwasher Pump Assembly
6A	A18005103 Frigidaire Dishwasher Drain Pump
12	A00055408 Frigidaire Dishwasher Switch
19	5304529477 Frigidaire Dishwasher Lamp
48	A00040106 Frigidaire Dishwasher Sensor
118	DISPENSER
344	111315040 Frigidaire Dishwasher Door Lock
502	A05660402 Frigidaire Dishwasher Assembly-Blower
506	A00056506 Frigidaire Switch Assembly
567	117302400 Frigidaire Dishwasher Support
587	CONTROL ASSEMBLY
594	5304521592 Frigidaire Dishwasher Light Internal
