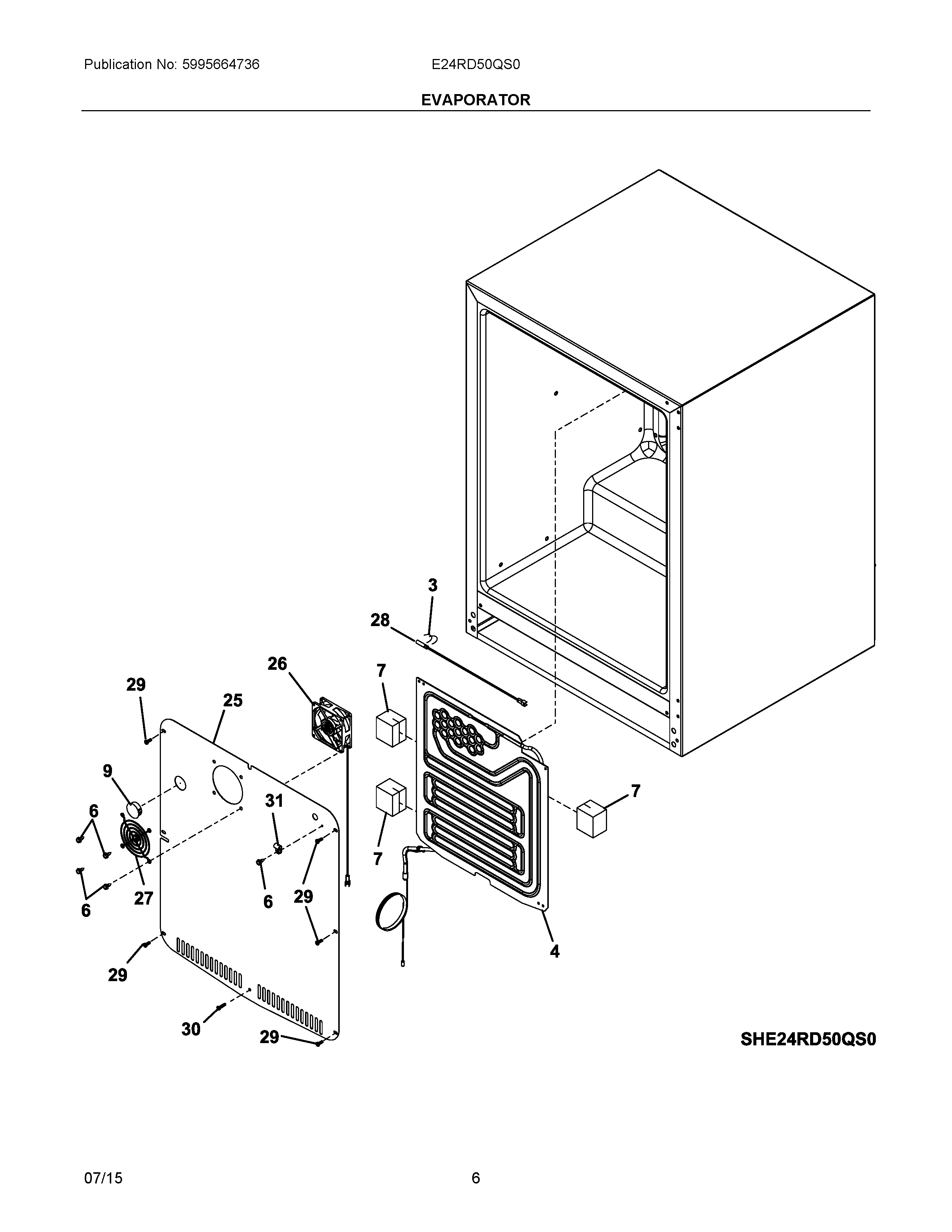

E24RD50QS0 04 – EVAPORATOR

E24RD50QS0 04 – EVAPORATOR

Written by

in

E24RD50QS0 04 – EVAPORATOR

Products

PositionProduct
3CABLE TIE
45304496756 Frigidaire Refrigerator Evaporator Assembly
6SCREW, HEX WASHER HEAD, #10 X 1/2"
7SUPPORT, EVAPORATOR, FOAM BLOCK
9WCI 5304496758
25WCI 5304496759
26MOTOR, EVAPORATOR FAN
27GUARD, FAN
285304496746 Frigidaire Refrigerator Sensor
29WCI 5304496747
30SCREW, KAPPET, #8-18 X 1"
31CLAMP, "P" STYLE
