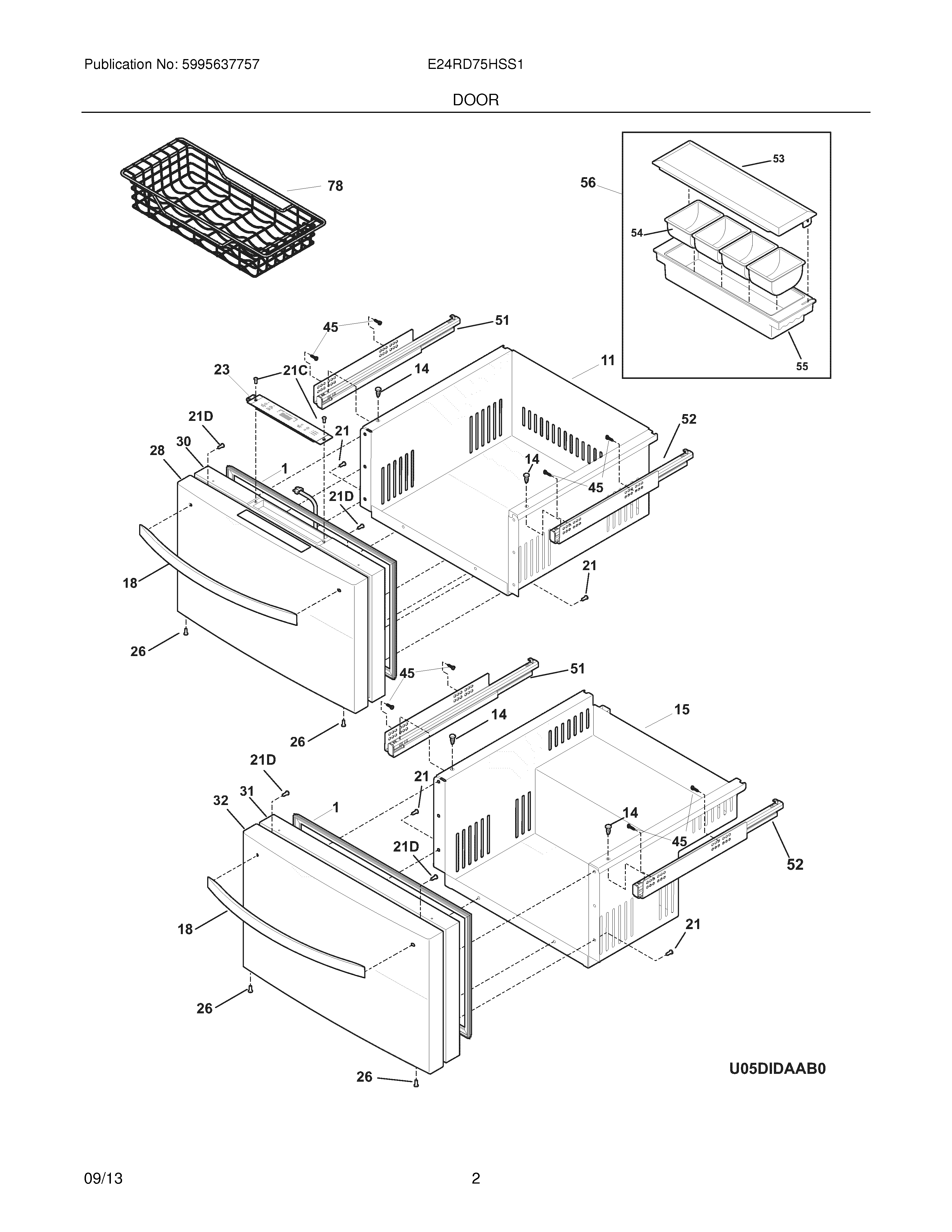

E24RD75HSS1 03 – DOOR

Products

Position	Product
NI	218515401 Frigidaire Refrigerator Clip
NI	SEAL, DRAWER
1	WCI 242038301
11	WCI 241965802
14	PLUG-BUTTON, BLACK
15	WCI 241966802
18	WCI 242073801
21	218362501 Frigidaire Refrigerator Screw
21C	SCREW, #8-32 X 3/8, FLAT HEAD
21D	241548003 Frigidaire Refrigerator Screw
23	BOARD-CONTROL, TEMP CONTROL
26	SCREW-#10-16 HILO PHIL PAN HD
28	WCI 241997901
30	FRONT, TOP DRAWER, W/UI HARNESS
31	FRONT-DRAWER, BOTTOM DRAWER
32	WCI 241998003
45	SCREW, TRUSS HD QUAD, #10-16 X .500, SILVER MIST
51	RAIL-SHELF, FULL ACCESS, LEFT
52	RAIL-SHELF, FULL ACCESS
53	WCI 241965701
54	WCI 241964401
55	WCI 241965602
56	TRAY-CONDIMENT, COMPLETE ASSEMBLY
78	BASKET-SLIDING, UC
