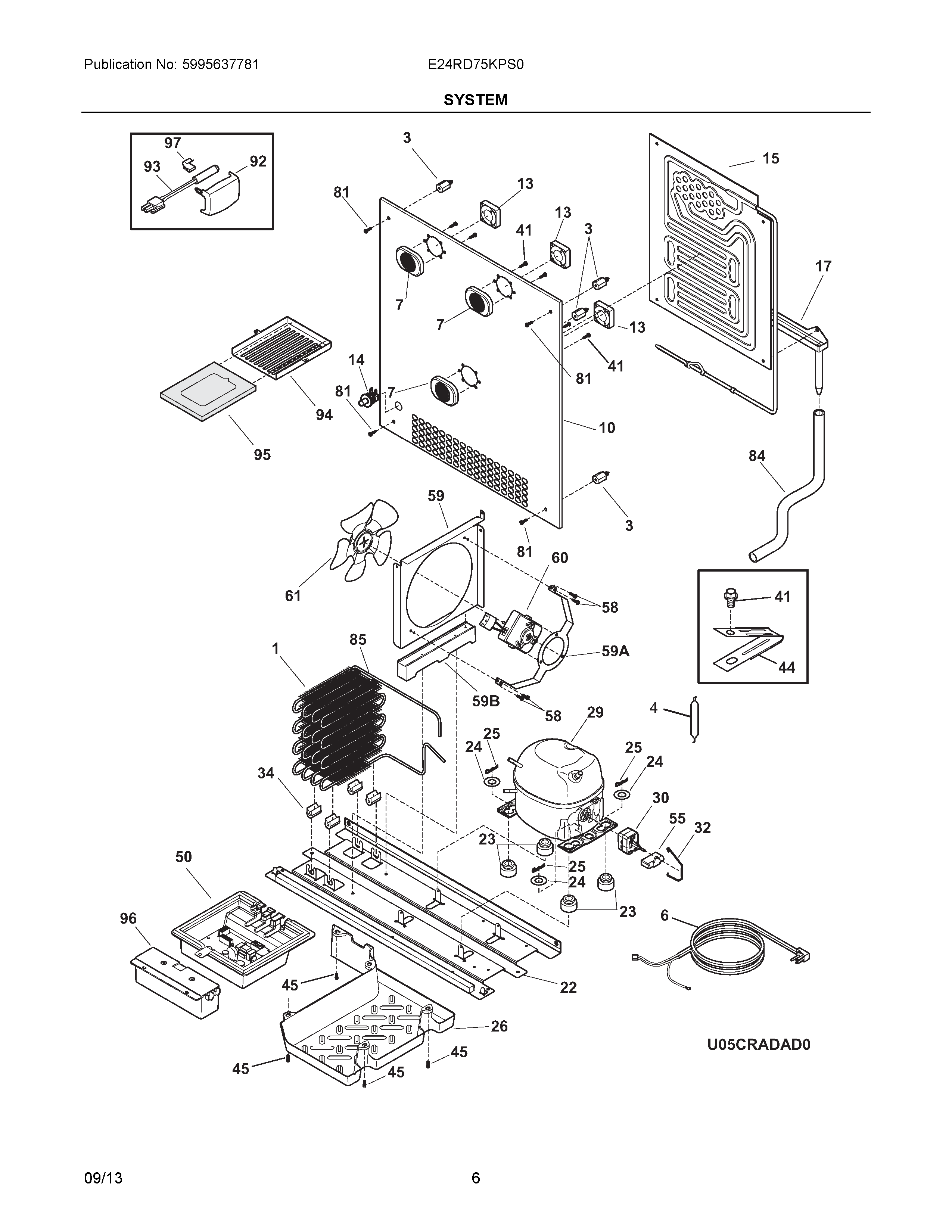

E24RD75KPS0 04 – SYSTEM

Products

Position	Product
NIE	WCI 241900201
NIA	WCI 241984501
NIA	WCI 241932601
NIA	WCI 241900401
NI	5304464772 Frigidaire Refrigerator Wire Tie
NI	240542601 Frigidaire Clip-WIRING Harness
NI	SCREW, #8-18 X 1/2
NI	WCI 241739251
NIG	WCI 241961801
NIB	241532401 Frigidaire Refrigerator Channel
NIF	241900701 Frigidaire Refrigerator Intermediate Harness
NIB	WASHER, NYLON
NI	218515401 Frigidaire Refrigerator Clip
NID	HARNESS-WIRING, MACHINE COMPT
NIA	218252201 Frigidaire Refrigerator Screw
NIB	240396801 Frigidaire Refrigerator Tube Clamp
NIA	HARNESS-WIRING, SECONDARY, DRAWER HARNESS
NIC	241961201 Frigidaire Refrigerator Wiring Harness
NIB	RETAINER, WIRE
NIA	240359403 Frigidaire Refrigerator Fan Shroud Screw
1	WCI 241931201
3A	SPACER-EVAP, 1"
3	SPACER-EVAP, 1/2"
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
7	WCI 241960301
10	WCI 241960101
13	WCI 241981801
14	241911704 Frigidaire Refrigerator Switch
15	EVAPORATOR, W/HEAT EXCHANGER
17	WCI 241889801
22	WCI 241888101
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037701 Frigidaire Refrigerator Clip-Compressor Mtg
26	WCI 241889901
29	COMPRESSOR, W/ELECTRICALS
30	WCI 241707717
32	5304497418 Frigidaire Refrigerator Clip
34	240405201 Frigidaire Refrigerator Grommet
41	240433204 Frigidaire Refrigerator Screw
44	5304456288 Frigidaire Refrigerator Clamp
45	154518001 Frigidaire Refrigerator Screw
50	WCI 241511116
55	5304464438 Frigidaire Compressor Run Capacitor
58	241953902 Frigidaire Refrigerator Screw
59	SHROUD, COND FAN MOTOR
59B	SUPPORT, COND SHROUD
59A	WCI 241889601
60	297279500 Frigidaire Refrigerator Condenser Fan Motor
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
81	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
84	TUBE-DRAIN, LOWER
85	WCI 241898101
92	COVER-SENSOR, BLACK
93	240597220 Frigidaire Sensor
94	241904001 Frigidaire HOUSING
95	EAFCBF Frigidaire Refrigerator PureAdvantage Carbon Air Filter
96	WCI 241900001
97	241519401 Frigidaire Refrigerator Clip
