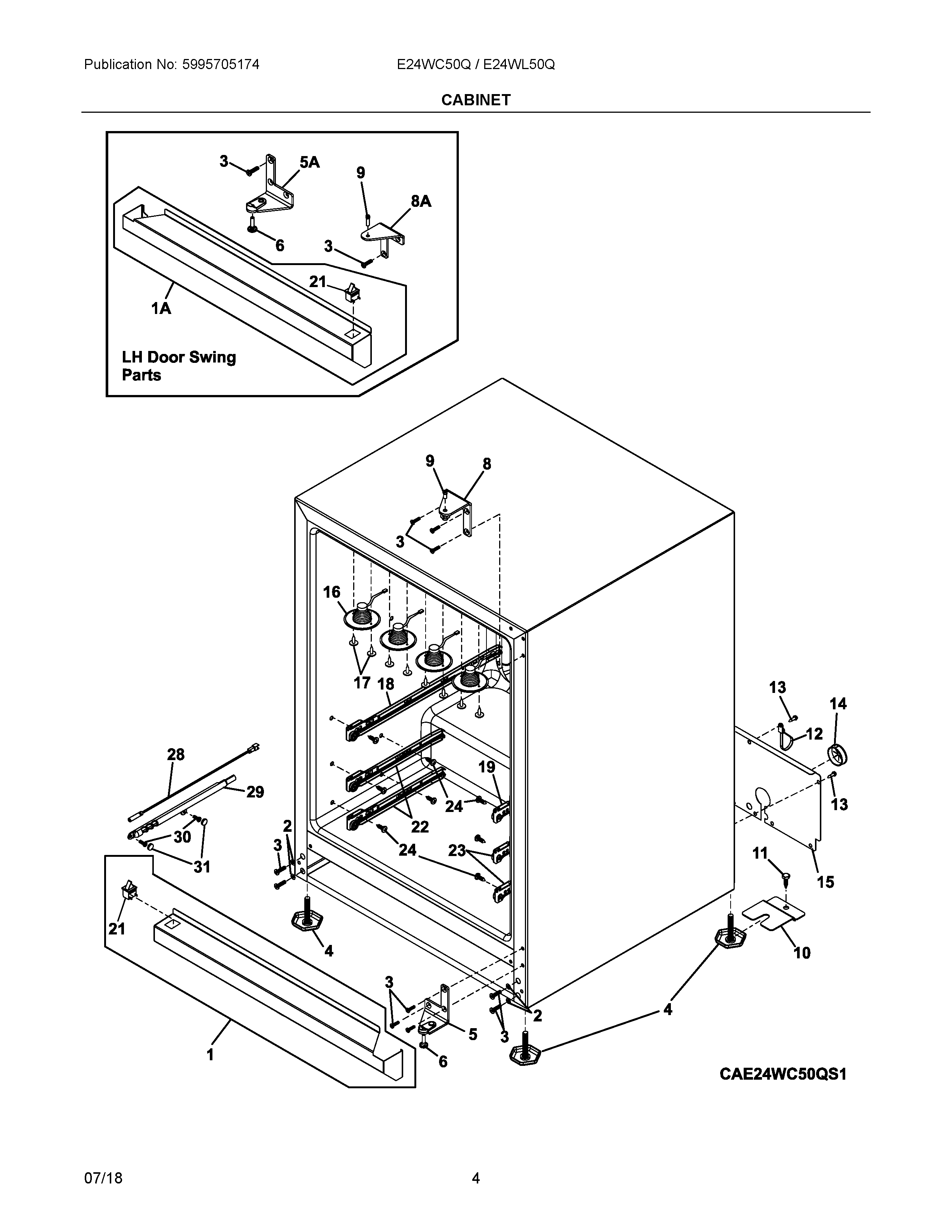

E24WC50QS1 03 – CABINET

Products

Position	Product
1	WCI 5304518414
2	WASHER, FLAT, #10 COUNTERSUNK
3	SCREW, PH CNTRSNK HD, #10-32 X 3/4"
4	LEG, LEVELER
5	HINGE, DOOR BOTTOM, RH SWING
6	PIN, BOTTOM HINGE
8	HINGE, DOOR TOP, RH SWING
9	5304496824 Frigidaire Refrigerator Pin
10	BRACKET, ANTI-TIP
11	SCREW, LAG, HEX HEAD, 5/16-18 X 1"
12	CABLE TIE, MOUNT, (PACK OF 10)
13	SCREW, HEX WASHER HEAD, #10 X 1/2"
14	GROMMET, HEYCO
15	COVER, ACCESS
16	5304520842 Frigidaire Refrigerator Light Assembly
17	SCREW, PH FLAT HEAD, #4 X 1/2"
18	SLIDE, OUTER, 400MM, LH
19	SLIDE, OUTER, 400MM, RH
21	5304507946 Frigidaire Refrigerator Switch
22	SLIDE, OUTER, 250MM, LH
23	SLIDE, OUTER, 250MM, RH
24	241953905 Frigidaire Screw
28	5304496830 Frigidaire Refrigerator Sensor
29	COVER, SENSOR, BLACK
30	SCREW, KAPPET, #8-18 X 1"
31	CAP, SNAP, BLACK
