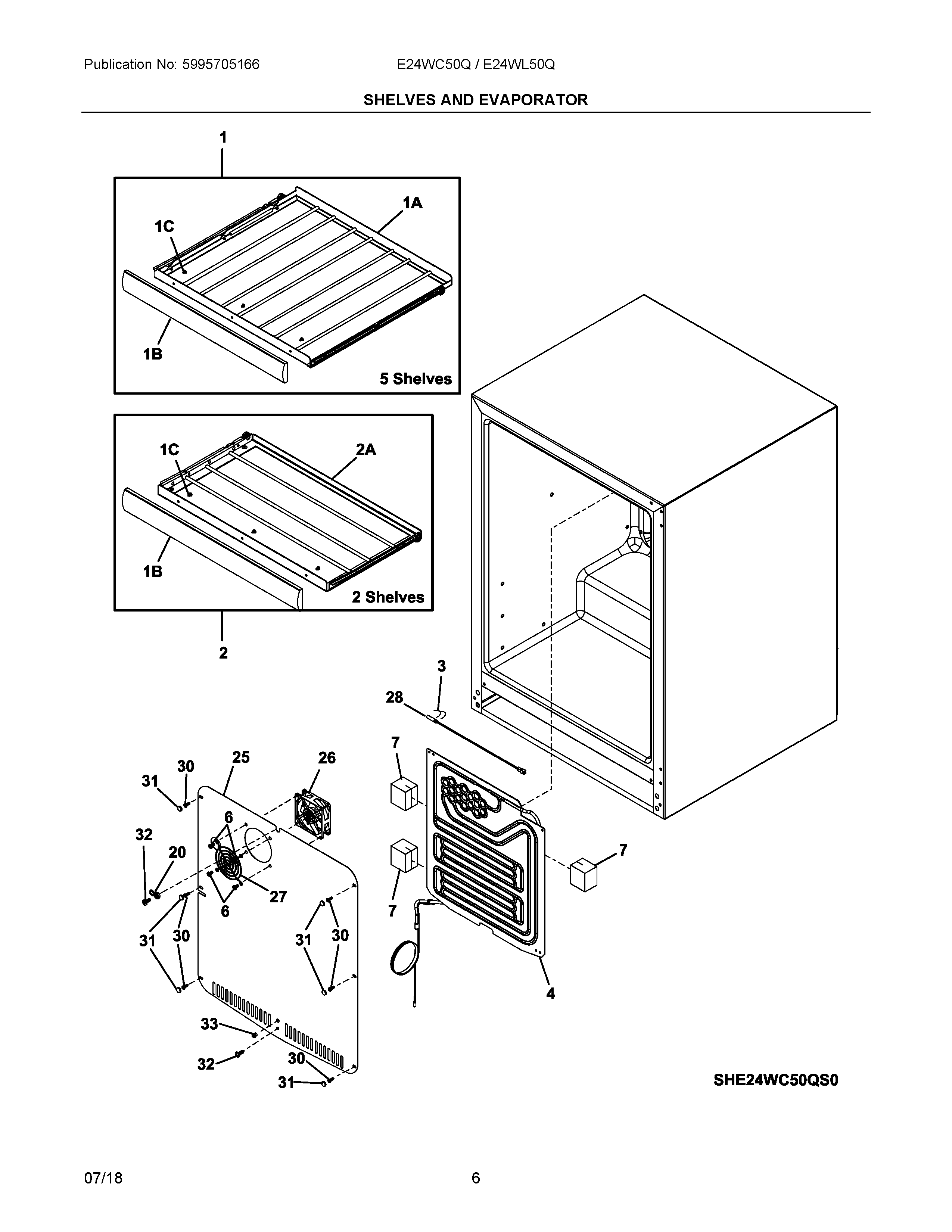

E24WL50QS0 04 – SHELVES AND EVAPORATOR

Products

Position	Product
1	SHELF ASSEMBLY, WINE, BLACK, COMPLETE
1A	SHELF, WINE, W/SLIDES
1B	TRIM, SHELF, WOOD
1C	SCREW, TYPE AB, #6
2A	SHELF, WINE, SHORT, W/SLIDES
2	SHELF ASSEMBLY, WINE, BLACK, COMPLETE, SHORT
3	CABLE TIE
4	5304496756 Frigidaire Refrigerator Evaporator Assembly
6	SCREW, HEX WASHER HEAD, #10 X 1/2"
7	SUPPORT, EVAPORATOR, FOAM BLOCK
20	COVER, SCREW, PLASTIC, BLACK
25	COVER, EVAPORATOR COIL, BLACK
26	MOTOR, EVAPORATOR FAN
27	GUARD, FAN
28	5304496746 Frigidaire Refrigerator Sensor
30	SCREW, KAPPET, #8-18 X 1"
31	CAP, SNAP, BLACK
32	241690501 Frigidaire Refrigerator Screw
33	RIVNUT, HEX, #10-32
