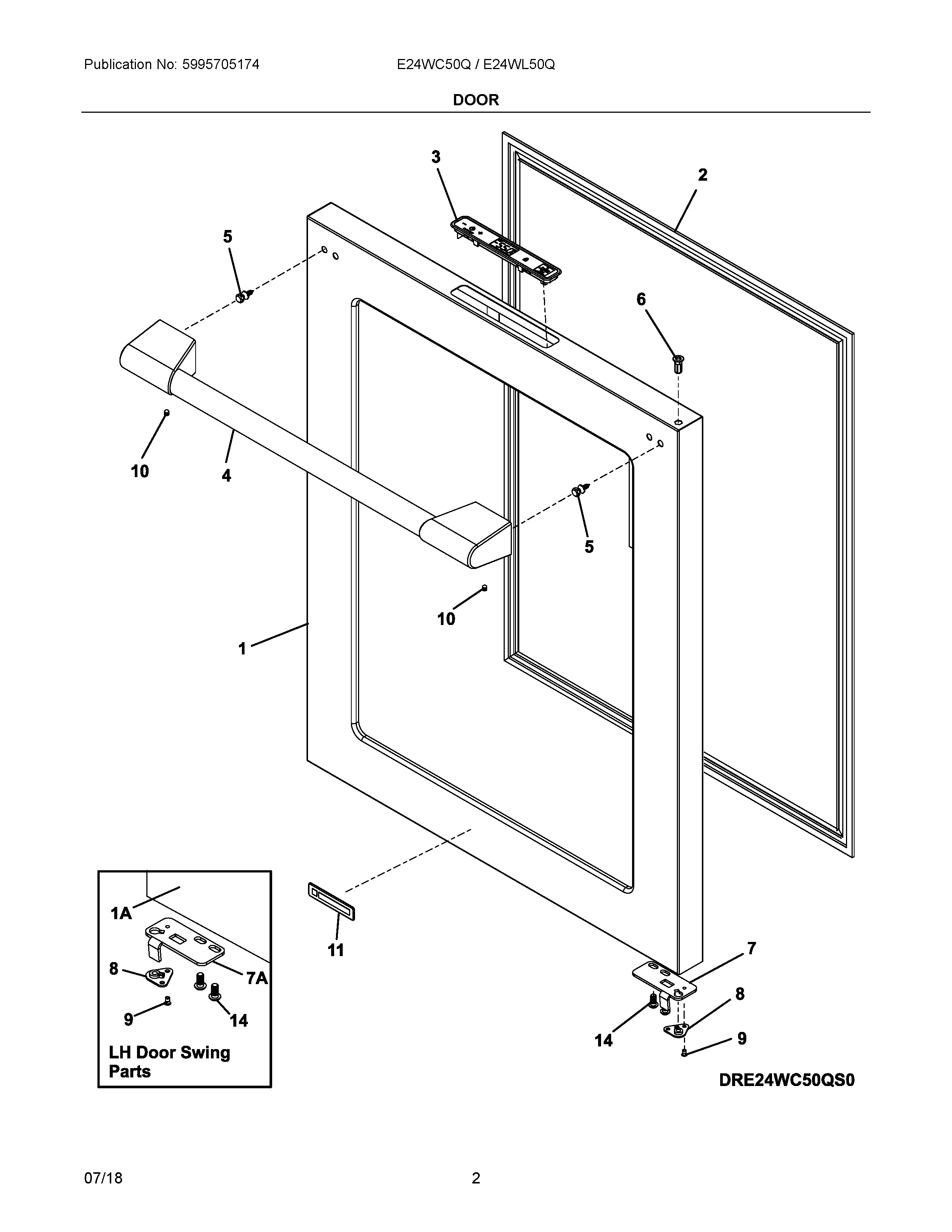

E24WL50QS1 02 – DOOR

Products

Position	Product
1A	DOOR ASSEMBLY, LH SWING
2	GASKET, MAGNETIC, BLACK
3	USER INTERFACE, ASSEMBLY
4	HANDLE, DOOR/DRAWER, STAINLESS
5	218755504 Frigidaire Refrigerator Shoulder Screw
6	BUSHING, HINGE PIN, GREY, UPPER
7A	STOP, DOOR, LH SWING
8	5304496812 Frigidaire Refrigerator Cam Assembly
9	RIVET, POP, 1/8", STEEL
10	SCREW, SET, #10-32 X 1/4", CONE POINT
11	241603101 Frigidaire Refrigerator Label-Nameplate
14	SCREW, BUTTON HEAD, 1/4-20 X 1/2", WHITE
