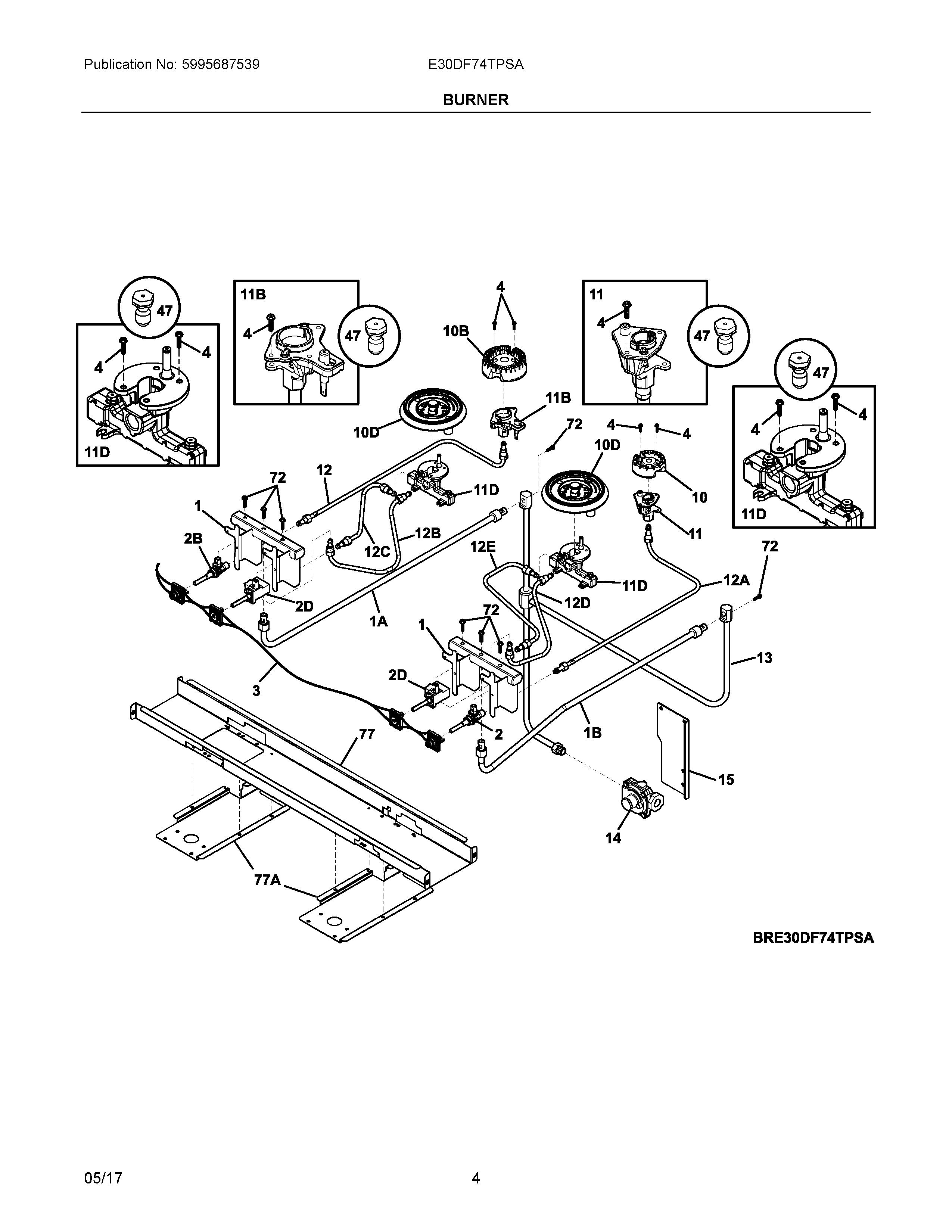

E30DF74TPSA 03 – BURNER

Products

PositionProduct
NIWCI 5304509841
NI316566901 Frigidaire Oven Sleeve
NI316021109 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1MANIFOLD, TUBE, 30", 4 VALVE
1ATUBE, MANIFOLD, LH, INTERCONNECT
1B318305404 Frigidaire Tube
25304506548 Frigidaire Oven Valve
2B5304506549 Frigidaire Oven Valve
2D316272310 Frigidaire Oven Valve
3HARNESS ASSEMBLY, IGNITION, W/SWITCHES
4316540900 Frigidaire Oven Screw
10D5304501023 Frigidaire Burner Assembly
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
11B316543204 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
11D316440100 Frigidaire Igniter and Orifice Assembly
12ETUBE, BURNER, RIGHT FRONT, DUAL SIMMER
12A318366727 Frigidaire Tube
12DTUBE, BURNER, RIGHT FRONT, DUAL MAIN
12CTUBE, BURNER, LEFT FRONT, DUAL SIMMER
12BTUBE, BURNER, LEFT FRONT, DUAL MAIN
12WCI 318366728
13WCI 318360601
14WCI 318122708
15WCI 5304498464
47LP CONVERSI
72316215600 Frigidaire Oven Screw
77AWCI 318363803
77318355502 Frigidaire Oven Bracket
