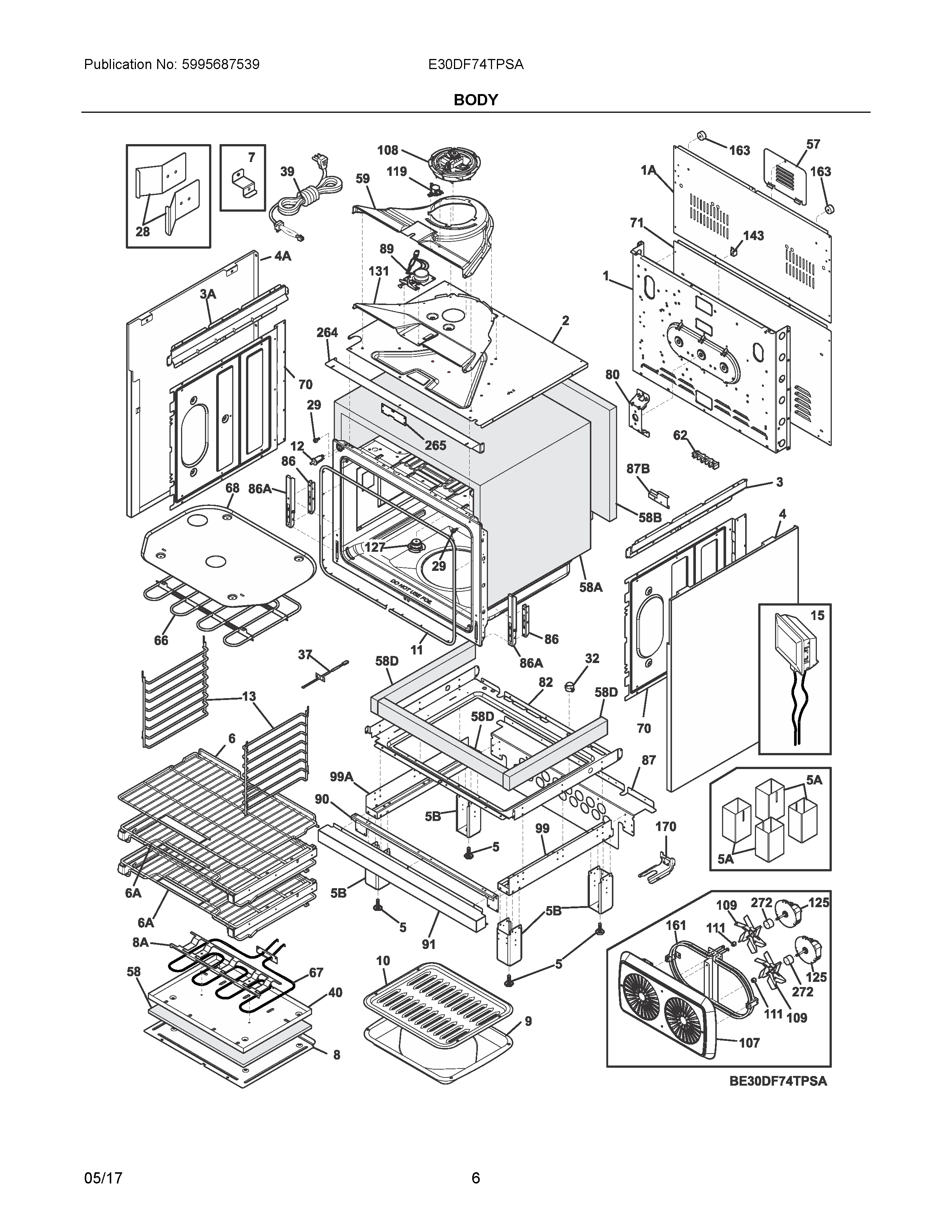

E30DF74TPSA 04 – BODY

E30DF74TPSA 04 – BODY

Written by

in

E30DF74TPSA 04 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIA318946400 Frigidaire Oven Bulb
NIA807597603 Frigidaire Oven Screw
NIAWCI 5304481623
NIC316001017 Frigidaire Screw
NIWCI 5304509812
NIB5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NIAAScrew,cup pt ,8-18 x 0.375 ,chrome
NIA316205500 Frigidaire Oven Nut
1139017306 Frigidaire Oven Panel
1APANEL, BACK, UPPER
2139078200 Frigidaire Shield
3PANEL, RH SIDE, UPPER
3APANEL, LH SIDE, UPPER
4PANEL, BODY SIDE, RH
4APANEL, BODY SIDE, LH
5318175506 Frigidaire Oven Screw
5ACOVER, LEG, (4)
5BSUPPORT, LEG, (4)
6AGLIDE RACK, ASSEMBLY, NICKEL, W/HANDLE
6808713913 Frigidaire Rack Assembly
7BRACKET, MAIN BACK, (4)
8A318313601 Frigidaire Oven Bracket
8318359500 Frigidaire Oven Panel
9316081901 Frigidaire Oven Baking Pan
10316082001 Frigidaire Oven Insert
11807545502 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
13808713901 Frigidaire Ladder Assembly
15WCI 139001800
28WCI 318369301
29316517600 Frigidaire Oven Spacer
32BUSHING, POWER CORD, SNAP TIE
37SENSOR
39CORD, RANGE POWER, 4 WIRE
40318297303 Frigidaire Oven Box
57316283600 Frigidaire Oven Cover
58318294912 Frigidaire Insullation
58A139001700 Frigidaire Insulation
58D139020301 Frigidaire INSULATION
58BWCI 139020202
59139078002 Frigidaire Oven Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
665304521861 Frigidaire Element
675304521880 Frigidaire Element
68WCI 807890404
70139000601 Frigidaire Oven Shield
71WCI 139077200
80139021101 Frigidaire Bracket Assembly
82139008201 Frigidaire Shield
86318561100 Frigidaire Receptacle
86AWCI 809138301
87WCI 5304509833
87B5304508575 Frigidaire Bracket
895304528836 Frigidaire Motor
90WCI 5304498481
91WCI 5304498466
99AWCI 5304498480
99WCI 5304498479
107WCI 139001502
108318575612 Frigidaire Oven Cooling Fan Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119807144901 Frigidaire Thermostat
125139008600 Frigidaire Oven Motor
127139042600 Frigidaire Tube Assembly
131139078102 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
1615304522063 Frigidaire Element
163318531700 Frigidaire Oven Spacer
170WCI 316112008
264WCI 807057101
265WCI 807050701
272139021700 Frigidaire Oven Tube
