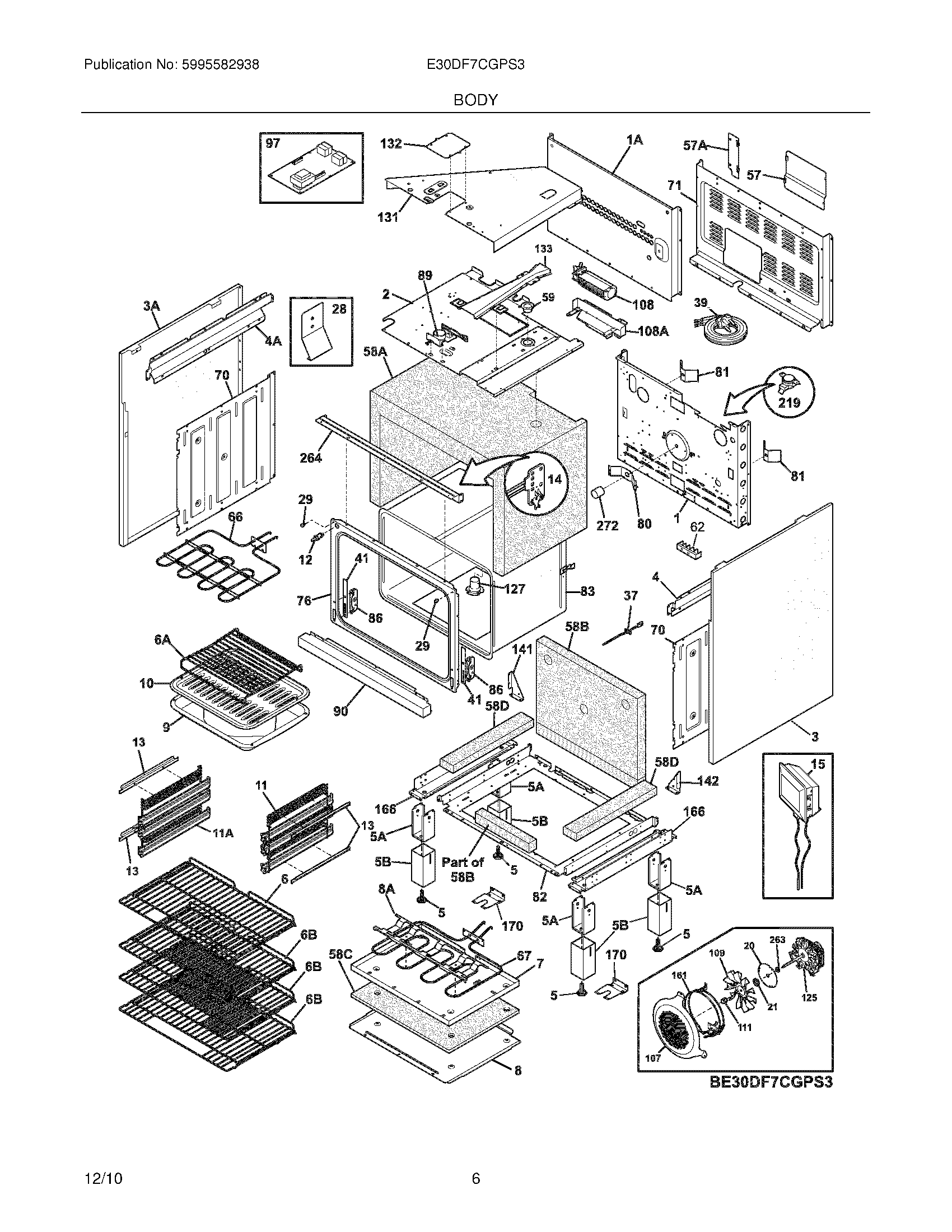

E30DF7CGPS3 07 – BODY

Products

Position	Product
NI	5303300265 Frigidaire Oven Screw
NI	SCREW-SHOULDER
NI	5303323129 Frigidaire Oven Screw
NI	WCI 5303325978
NI	3201861 Frigidaire Screw
NI	5304461333 Frigidaire Oven Screw
NI	WCI 318231886
NI	5303211311 Frigidaire Refrigerator Screw
NI	WCI 318370390
NI	WCI 318402212
NI	5304436875 Frigidaire Oven Screw
NI	SCREW,TRUSS HEAD,8-18 X 0.375
NI	08002868 Frigidaire 0 Screw Assembly
NI	5303323139 Frigidaire Oven Screw
NI	318165800 Frigidaire Oven Door Glass Spacer with Screw
NI	5304453707 Frigidaire Oven Screw
NI	5304415832 Frigidaire Oven Screw
1	WCI 318259220
1A	WCI 318353109
2	WCI 318258922
3A	WCI 318352703
3	WCI 318352702
4A	WCI 318356003
4	WCI 318356002
5B	WCI 318352404
5A	WCI 318368800
5	318175506 Frigidaire Oven Screw
6B	318345405 Frigidaire Oven Shelf
6	WCI 318240104
6A	WCI 318365800
7	318297303 Frigidaire Oven Box
8A	318313601 Frigidaire Oven Bracket
8	318359500 Frigidaire Oven Panel
9	318138801 Frigidaire Oven Pan
10	316082001 Frigidaire Oven Insert
11A	WCI 318240015
11	WCI 318240014
12	316445501 Frigidaire Oven Switch
13	WCI 318603913
14	WCI 318903401
15	WCI 318241006
20	WCI 318389400
21	318389000 Frigidaire Oven Seal
28	WCI 318369301
29	316517600 Frigidaire Oven Spacer
37	SENSOR
39	WCI 318113111
41	5304517729 Frigidaire Oven Spacer
57A	WCI 318394603
57	WCI 318362600
58B	WCI 318285079
58C	318294912 Frigidaire Insullation
58A	WCI 318386100
58D	318372018 Frigidaire Insulation
59	318072577 Frigidaire Duct
62	5304409888 Frigidaire Oven Terminal Block with Hardware
66	318255806 Frigidaire Oven Element
67	318254916 Frigidaire Oven Range Bake Element
70	WCI 318259105
71	WCI 318300903
76	WCI 318056232
80	WCI 5303320846
81	WCI 318192400
82	WCI 318258770
83	WCI 318261428
86	318241406 Frigidaire Receptacle
89	318261229 Frigidaire Oven Motor
90	WCI 318355001
97	316455704 Frigidaire Oven Control Board
107	318906601 Frigidaire Oven Cover
108	318073028 Frigidaire Oven Motor
108	WCI 318251300
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
125	5304463302 Frigidaire Convection Motor
127	WCI 318357001
131	WCI 318272901
132	318003000 Frigidaire Plate
133	WCI 318347800
141	WCI 318368402
142	WCI 318368403
161	318255511 Frigidaire Oven Heating Element
166	WCI 318352501
170	WCI 318335701
219	WCI 318003633
263	316008401 Frigidaire Washer P-1
264	WCI 318257723
272	WCI 318249409
