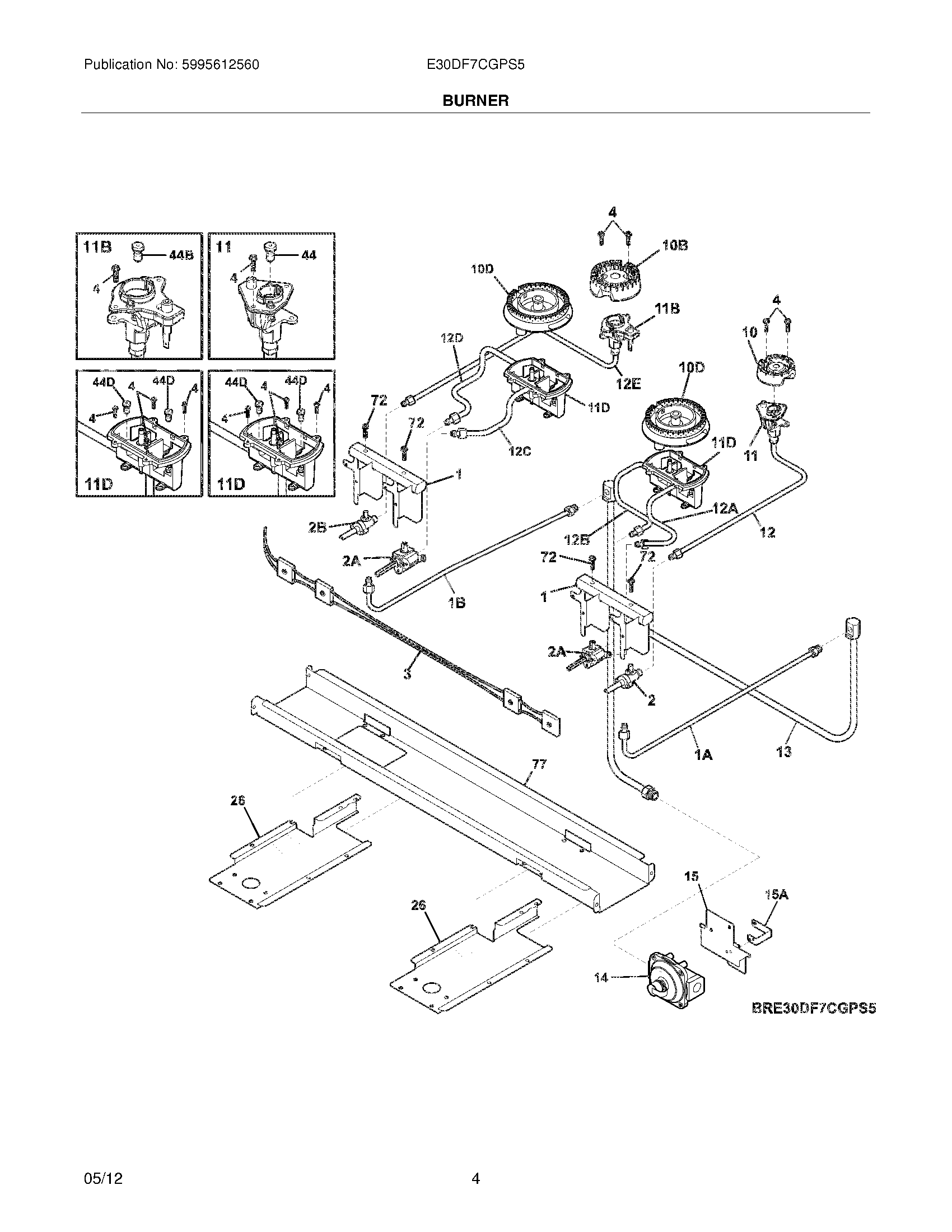

E30DF7CGPS5 05 – BURNER

E30DF7CGPS5 05 – BURNER

Written by

in

E30DF7CGPS5 05 – BURNER

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NIWCI 318199778
NIWCI 318186925
NI5304480396 Frigidaire Screw
NI5304453707 Frigidaire Oven Screw
1WCI 318357801
1B318305404 Frigidaire Tube
1ATUBE, MANIFOLD, LH, INTERCONNECT
2BWCI 316520703
2WCI 316520700
2A316574900 Frigidaire Oven Valve
3318232634 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10DWCI 316525401
10B316438600 Frigidaire Range Sealed Burner, 14K
11DWCI 316525103
11B316543204 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12AWCI 318366731
12DWCI 318366730
12BWCI 318366732
12EWCI 318366728
12318366727 Frigidaire Tube
12CWCI 318366729
13WCI 318360601
14WCI 318122708
15AWCI 318376200
15WCI 318376102
26WCI 318363803
44316527504 Frigidaire Oven Orifice
44DWCI 316523509
44DWCI 316523512
44B316527511 Frigidaire Oven Orifice
72316215600 Frigidaire Oven Screw
77318355502 Frigidaire Oven Bracket
