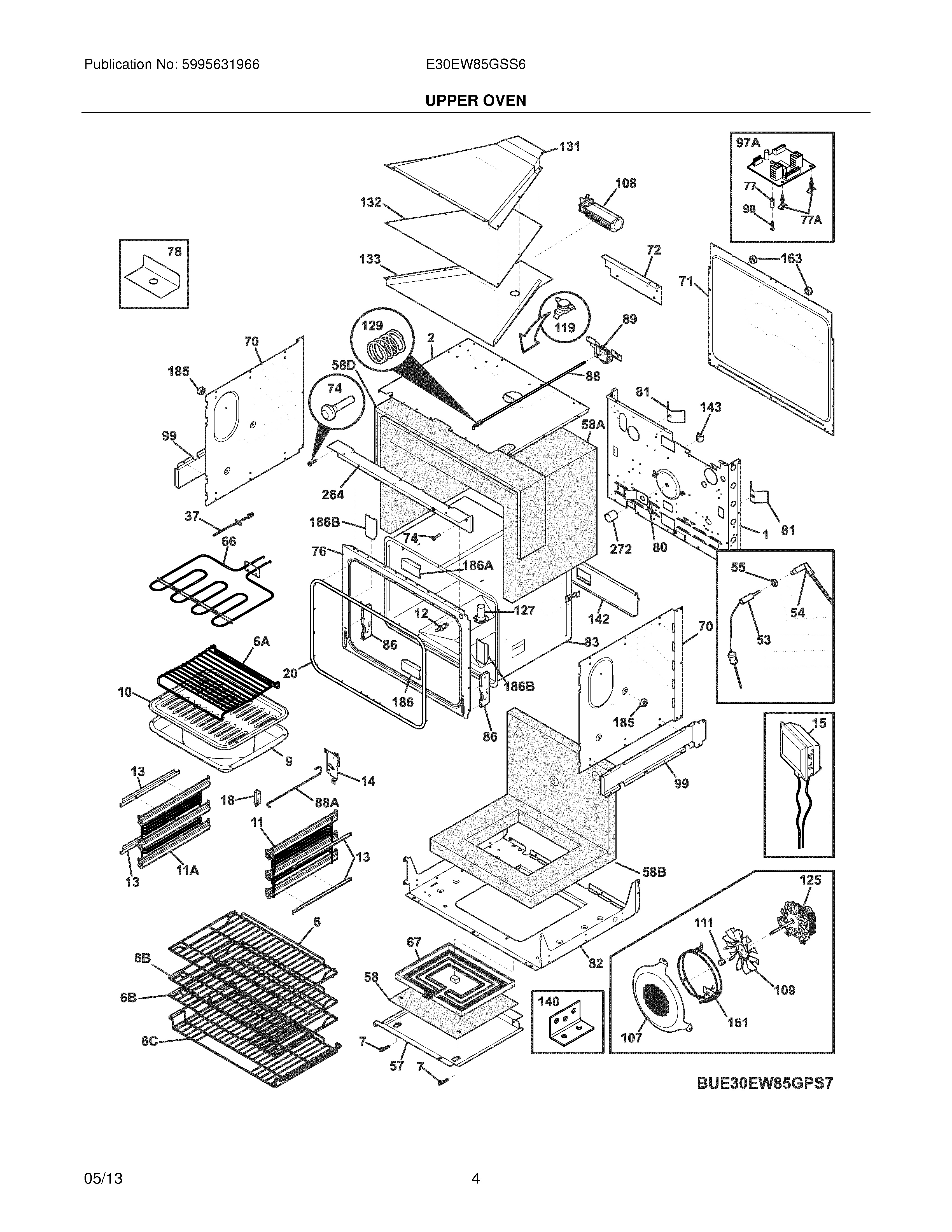

E30EW85GSS6 05 – UPPER OVEN

E30EW85GSS6 05 – UPPER OVEN

Written by

in

E30EW85GSS6 05 – UPPER OVEN

Products

PositionProduct
NIWCI 318341201
NI318946400 Frigidaire Oven Bulb
NI5303323129 Frigidaire Oven Screw
NIWCI 318373001
NIWCI 5304400192
NIPlate,covering ,probe
NIOVEN RACK LUBRICANT
NIFoam seal,(3)
NIWCI 318268004
NIWCI 318231870
NIWCI 318578378
NIWCI 5304456367
NIWCI 5304481623
NI5303324184 Frigidaire Wall Oven Range Screw
NI5304436875 Frigidaire Oven Screw
NI5303211311 Frigidaire Refrigerator Screw
NI318167300 Frigidaire Clip
NI5304415832 Frigidaire Oven Screw
NI5303323139 Frigidaire Oven Screw
NI5303323277 Frigidaire Oven Screw
1WCI 318259220
2WCI 318376700
6BWCI 318345408
6AWCI 318365800
6CWCI 318345409
6WCI 318240104
7318368300 Frigidaire PIN
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
11WCI 318240018
11AWCI 318240019
12808136601 Frigidaire Oven Switch
13WCI 318603913
14318562200 Frigidaire Sensor Assembly
15WCI 318241006
18318562300 Frigidaire Oven Bracket
20WCI 318239001
37SENSOR
535304503737 Frigidaire Black Meat Temperature Probe
54318601206 Frigidaire Receptacle Assembly
55316247700 Frigidaire Oven Nut
57WCI 318361610
58WCI 318330501
58DWCI 318362124
58BWCI 318594324
58AWCI 318594300
66318255806 Frigidaire Oven Element
67318601604 Frigidaire Oven Bake Element
70WCI 318259114
71WCI 318376800
72WCI 318377100
74WCI 318283600
76WCI 318056241
77A316114100 Frigidaire Oven Spacer
77Spacer,control
78WCI 318243603
80WCI 5303320846
81WCI 318192400
82WCI 318258775
83WCI 318386001
86318241406 Frigidaire Receptacle
88WCI 318250203
88AWCI 318376505
89318095965 Frigidaire Oven Motor
97A316519200 Frigidaire Oven Control Board
985303297477 Frigidaire Oven Screw
99WCI 318372600
107318906601 Frigidaire Oven Cover
108WCI 318073019
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
1255304463302 Frigidaire Convection Motor
127WCI 318357003
1295303311164 Frigidaire Oven Spring
131WCI 318376911
132WCI 318237603
133WCI 318237501
140WCI 318399313
142WCI 318123910
143318172904 Frigidaire Bracket
161WCI 318255512
163Spacer,(4)
185318531800 Frigidaire Oven Spacer
186WCI 318236901
186WCI 318237001
186WCI 318237101
264WCI 318278611
272WCI 318249412
