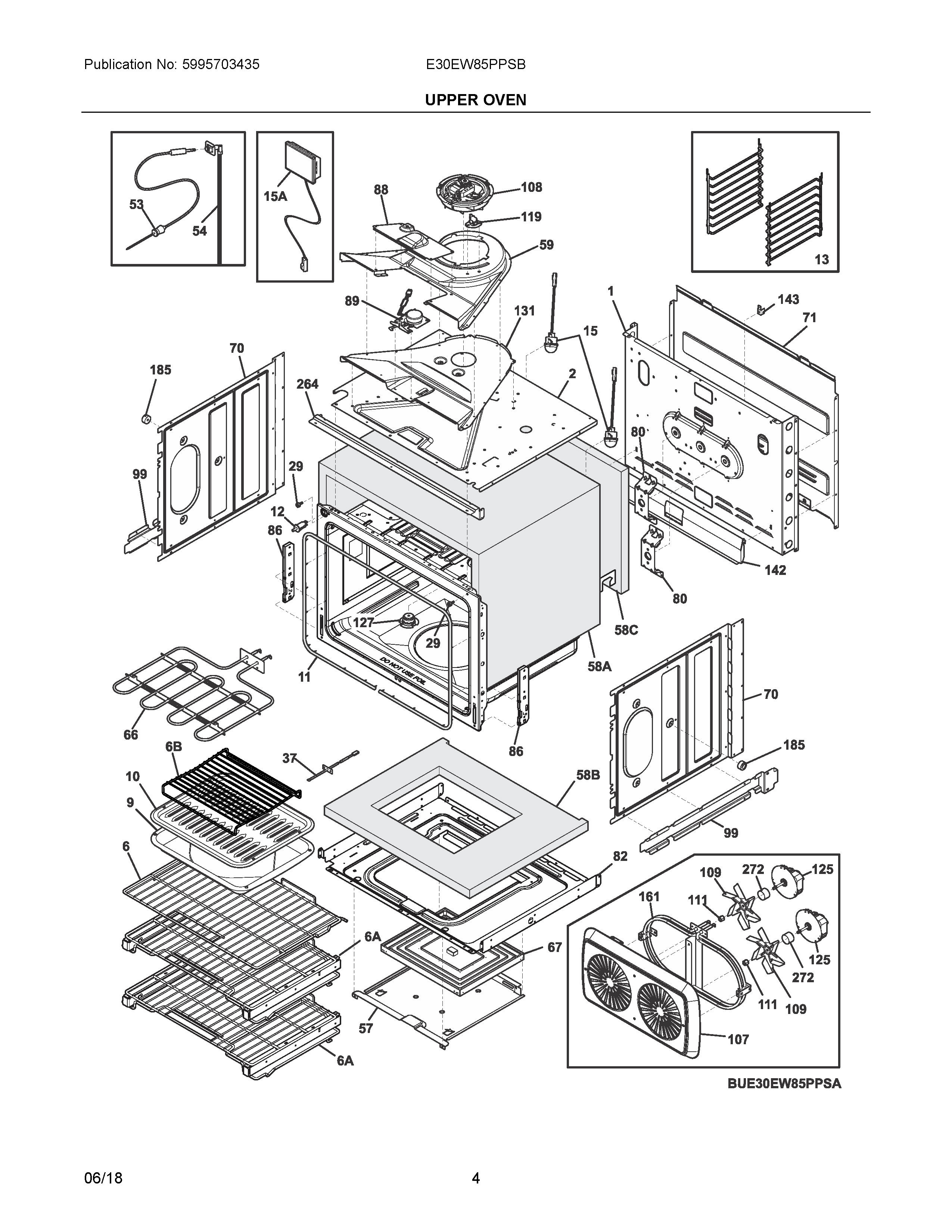

E30EW85PPSB 03 – UPPER OVEN

E30EW85PPSB 03 – UPPER OVEN

Written by

in

E30EW85PPSB 03 – UPPER OVEN

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	318946500 Frigidaire Oven Light Bulb Range/Wall
NI	807597603 Frigidaire Oven Screw
NIB	5303323130 Frigidaire Oven Screw
NIA	WCI 318231870
NIA	316418900 Frigidaire Oven Screw
NIA	WCI 318579001
NIA	318946400 Frigidaire Oven Bulb
NI	5304501346 Frigidaire Harness
NI	5303289910 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
1	WCI 139017304
2	139028107 Frigidaire Shield
6B	WCI 318219500
6	808713913 Frigidaire Rack Assembly
6A	808713906 Frigidaire Glade Rack
9	316081901 Frigidaire Oven Baking Pan
10	316082001 Frigidaire Oven Insert
11	807545504 Frigidaire Oven Seal
12	808136601 Frigidaire Oven Switch
13	808713901 Frigidaire Ladder Assembly
15AA	WCI 139001800
15	5304528790 Frigidaire Lamp Assembly Appliance
29	316517601 Frigidaire Bumper
37	SENSOR
53	5304503737 Frigidaire Black Meat Temperature Probe
54	139017203 Frigidaire Assembly Receptacle
57	807988901 Frigidaire Oven Panel
58B	807989001 Frigidaire Insulation
58C	139021400 Frigidaire Insulation
58A	139001700 Frigidaire Insulation
59	139027600 Frigidaire Oven Duct
66	5304521861 Frigidaire Element
67	318601604 Frigidaire Oven Bake Element
70	139000601 Frigidaire Oven Shield
71	139020000 Frigidaire Shield
80	139021101 Frigidaire Bracket Assembly
82	807988802 Frigidaire Shield
86	139026900 Frigidaire Receptacle
88	5304506964 Frigidaire Oven Cover
89	139021302 Frigidaire Oven Motor
99	139005201 Frigidaire Bracket
107	WCI 139001502
108	318575614 Frigidaire Oven Wall Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
119	318578506 Frigidaire Oven High Limit Thermostat
125	139008504 Frigidaire Oven Motor
127	139042600 Frigidaire Tube Assembly
131	139027700 Frigidaire Oven Duct
142	5304507678 Frigidaire Shield
143	318172904 Frigidaire Bracket
161	5304522063 Frigidaire Element
185	318531800 Frigidaire Oven Spacer
264	139017601 Frigidaire Oven Trim
272	139021700 Frigidaire Oven Tube
