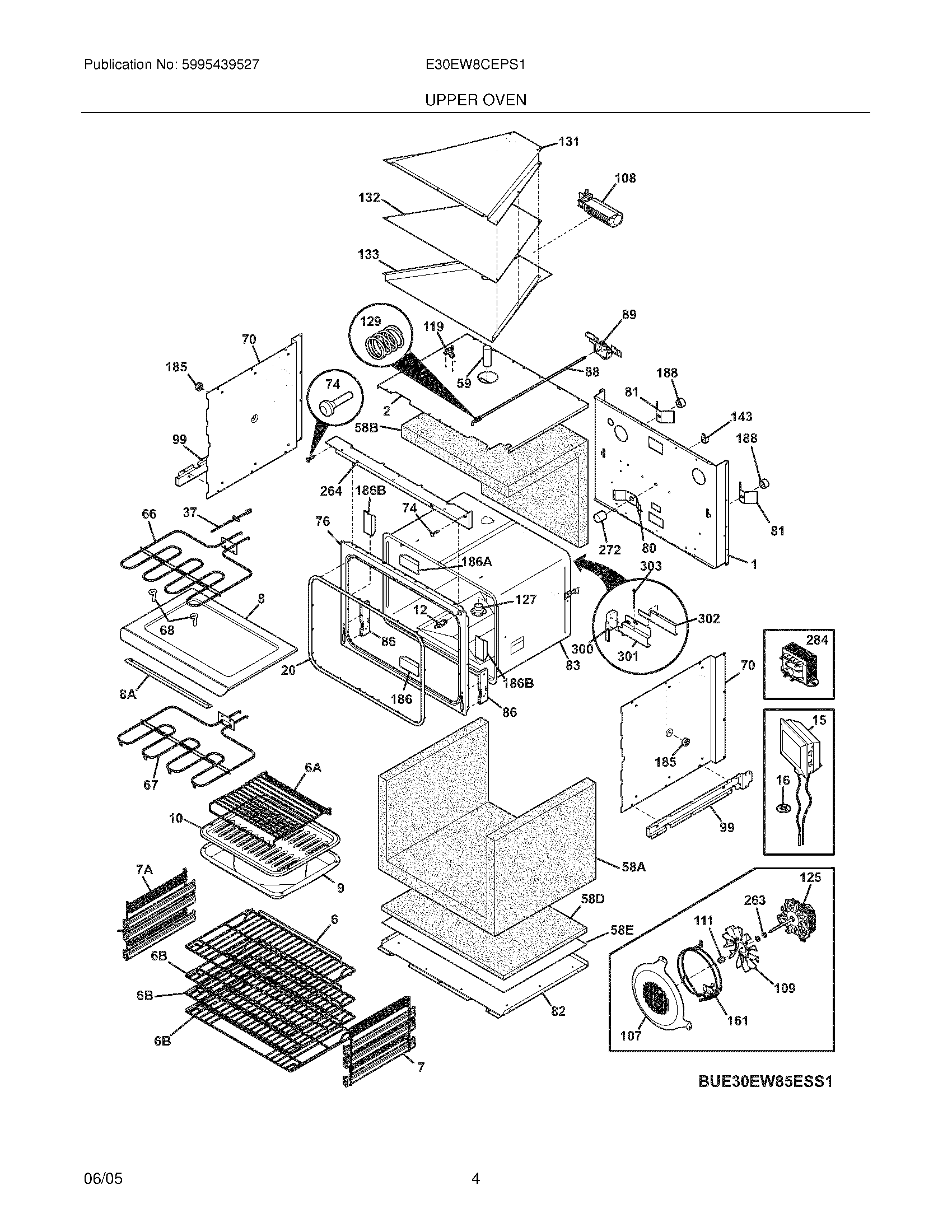

E30EW8CEPS1 05 – UPPER OVEN

E30EW8CEPS1 05 – UPPER OVEN

Written by

in

E30EW8CEPS1 05 – UPPER OVEN

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NIWCI 318052197
NI318167300 Frigidaire Clip
NI3201861 Frigidaire Screw
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 5304437044
NIWCI 318120711
NICLIP-WIRE
NIWCI 5303320422
NISCREW,TRUSS HEAD,8-18 X 0.375
NI5304436875 Frigidaire Oven Screw
NIPlate,covering ,probe
1WCI 318066413
2WCI 318236400
6AWCI 318219500
6WCI 318240100
6BWCI 318240200
7WCI 318240002
7AWCI 318240003
8WCI 318262002
8AWCI 318318600
9318138801 Frigidaire Oven Pan
10316082001 Frigidaire Oven Insert
12316445501 Frigidaire Oven Switch
15WCI 318241000
16WCI 318283500
20WCI 318239000
37316217002 Frigidaire Oven Temperature Probe
58BWCI 318133787
58AWCI 318133788
58DWCI 318133789
58EWCI 318235701
59WCI 318072561
66318255807 Frigidaire Oven Element
67318254906 Frigidaire Oven Range Bake Element 3400W
685304403015 Frigidaire Oven Support
70WCI 318236300
74WCI 5304435878
76WCI 318056211
80WCI 5303320846
81WCI 318192400
82WCI 318072310
83WCI 318236003
86318241406 Frigidaire Receptacle
88WCI 318250202
89WCI 318095950
99WCI 318278000
107WCI 318219402
108WCI 318073019
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004900 Frigidaire Thermal Switch
125WCI 5303316994
125Washer,motor ,RH ,convection
125WCI 316136300
127318317100 Frigidaire Adapter Assembly
1295303311164 Frigidaire Oven Spring
131WCI 318237401
132WCI 318237600
133WCI 318237500
143318172904 Frigidaire Bracket
161318255511 Frigidaire Oven Heating Element
185318531800 Frigidaire Oven Spacer
186Bracket,oven ,lower
186WCI 318237000
186WCI 318237100
188SCREW, 8 X 5/8, SPARK MODULE
188318531702 Frigidaire Oven Spacer
263316008401 Frigidaire Washer P-1
264WCI 318278601
272WCI 318249400
284WCI 318302000
284WCI 318244500
300WCI 318089801
301WCI 318234600
302WCI 318278200
303WCI 318228400
