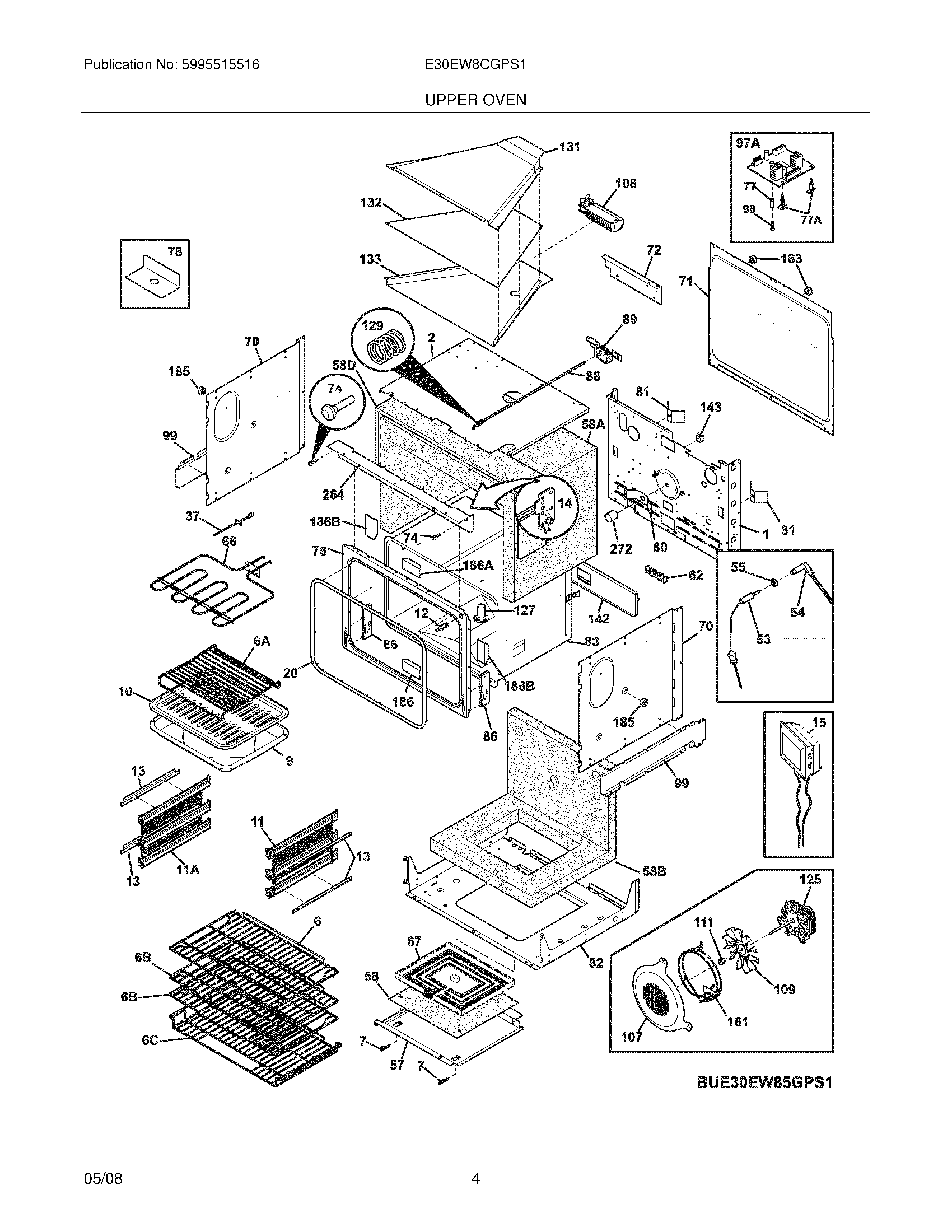

E30EW8CGPS1 05 – UPPER OVEN

E30EW8CGPS1 05 – UPPER OVEN

Written by

in

E30EW8CGPS1 05 – UPPER OVEN

Products

Position	Product
NI	5303323277 Frigidaire Oven Screw
NI	131243700 Frigidaire Screw
NI	WCI 7318532107
NI	5304461333 Frigidaire Oven Screw
NI	WCI 75303316982
NI	WCI 75304435874
NI	318167300 Frigidaire Clip
NI	5303323129 Frigidaire Oven Screw
NI	5303324184 Frigidaire Wall Oven Range Screw
NI	WCI 7318373001
NI	5304415832 Frigidaire Oven Screw
NI	5303323139 Frigidaire Oven Screw
NI	WCI 75304456367
NI	5304436875 Frigidaire Oven Screw
NI	WCI 7318231838
NI	134178901 Frigidaire Screw
1	WCI 7318259220
2	WCI 7318376700
6A	WCI 7318365800
6B	318345405 Frigidaire Oven Shelf
6	WCI 7318240103
6C	WCI 7318345410
7	318368300 Frigidaire PIN
9	316081901 Frigidaire Oven Baking Pan
10	316082001 Frigidaire Oven Insert
11	WCI 7318240014
11A	WCI 7318240015
12	316445501 Frigidaire Oven Switch
13	WCI 7318603913
14	WCI 7318903403
15	WCI 7318241002
20	WCI 7318239001
37	316217002 Frigidaire Oven Temperature Probe
53	5304504202 Frigidaire Red Meat Temperature Probe
54	318601206 Frigidaire Receptacle Assembly
55	316247700 Frigidaire Oven Nut
57	WCI 7318361610
58D	WCI 7318362124
58B	WCI 7318362100
58A	WCI 7318386100
58	WCI 7318330501
66	318255806 Frigidaire Oven Element
67	318601604 Frigidaire Oven Bake Element
70	WCI 7318259102
71	WCI 7318376800
72	WCI 7318377100
74	WCI 7318283600
76	WCI 7318056241
77A	316114100 Frigidaire Oven Spacer
77	316247900 Frigidaire Oven Spacer
78	WCI 7318243601
80	WCI 75303320846
81	WCI 7318192400
82	WCI 7318258730
83	WCI 7318386001
86	318241406 Frigidaire Receptacle
88	WCI 7318250203
89	318095965 Frigidaire Oven Motor
97A	316519200 Frigidaire Oven Control Board
98	5303297477 Frigidaire Oven Screw
99	WCI 7318372600
107	318906601 Frigidaire Oven Cover
108	WCI 7318073019
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
125	WCI 7318398200
127	Adapter Assembly,w/vent tube ,and catalyst
129	5303311164 Frigidaire Oven Spring
131	WCI 7318376911
132	WCI 7318237603
133	WCI 7318237501
142	WCI 7318123910
143	318172904 Frigidaire Bracket
161	WCI 7318255507
163	Spacer,(4)
185	318531800 Frigidaire Oven Spacer
186B	WCI 7318237101
186A	WCI 7318237001
186	WCI 7318236901
264	WCI 7318278611
272	WCI 7318249403
