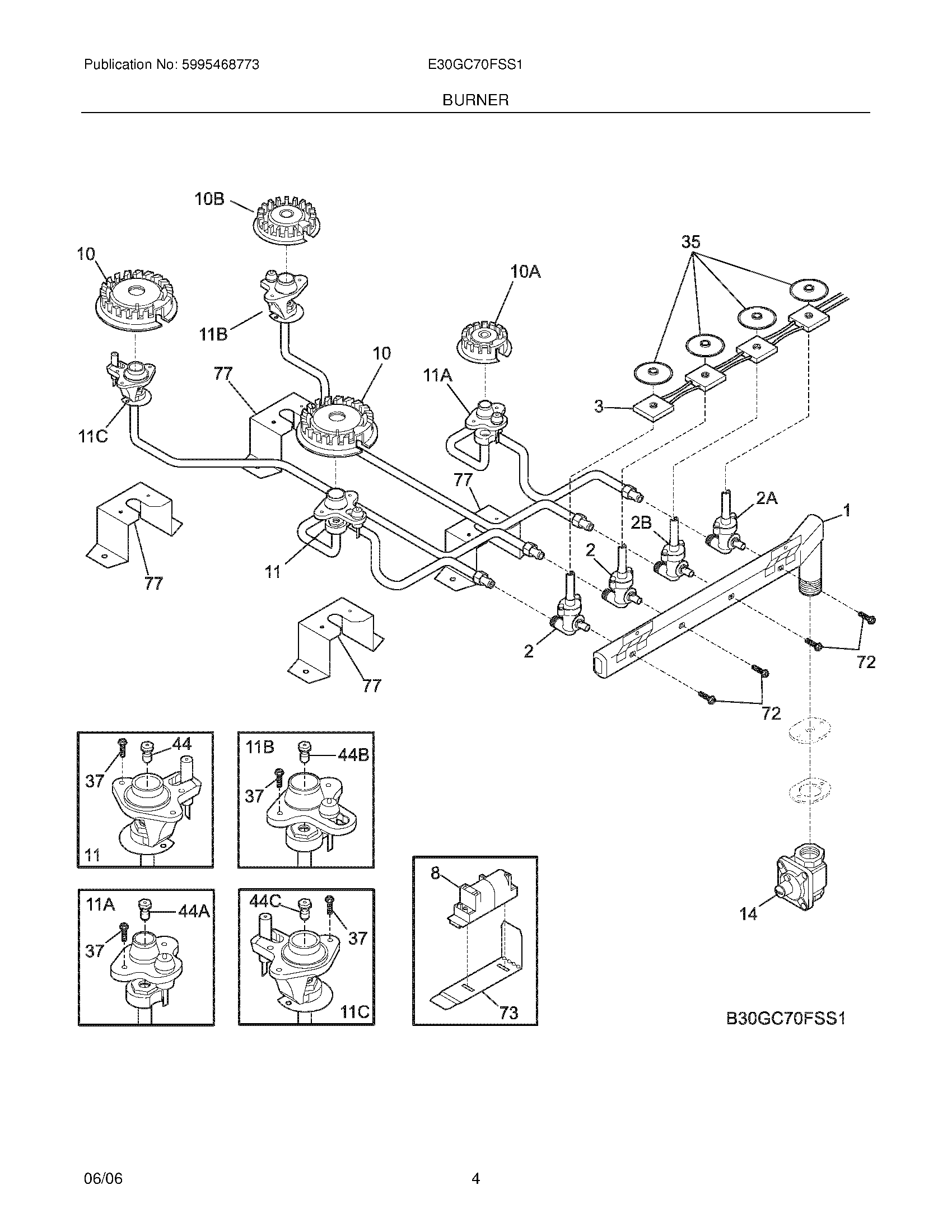

E30GC70FSS1 05 – BURNER

Products

Position	Product
NI	WCI 318199742
NI	316524400 Frigidaire Oven Screw
NI	WCI 318127428
NI	5303311174 Frigidaire Oven Screw
NI	5304403558 Frigidaire Oven Screw
NI	5303323137 Frigidaire Oven Screw
1	WCI 318177009
2B	WCI 318233910
2A	318233900 Frigidaire Oven Valve
2	WCI 318233940
3	318232604 Frigidaire Wiring Harness
8	5304505695 Frigidaire Oven Module
10	Burner,sealed ,17K
10A	WCI 316206400
10B	316212400 Frigidaire Oven Primary Burner
11C	WCI 318306236
11B	WCI 318221334
11	WCI 318306237
11A	WCI 318221332
14	5308007974 Frigidaire Pressure Regulator
35	WCI 318146301
37	316240600 Frigidaire Igniter Mounting Screw
44C	WCI 318362302
44	WCI 318362300
44A	WCI 316237903
44B	316237902 Frigidaire Orifice Top Burner
72	316215600 Frigidaire Oven Screw
73	WCI 318024201
77	WCI 318192606
