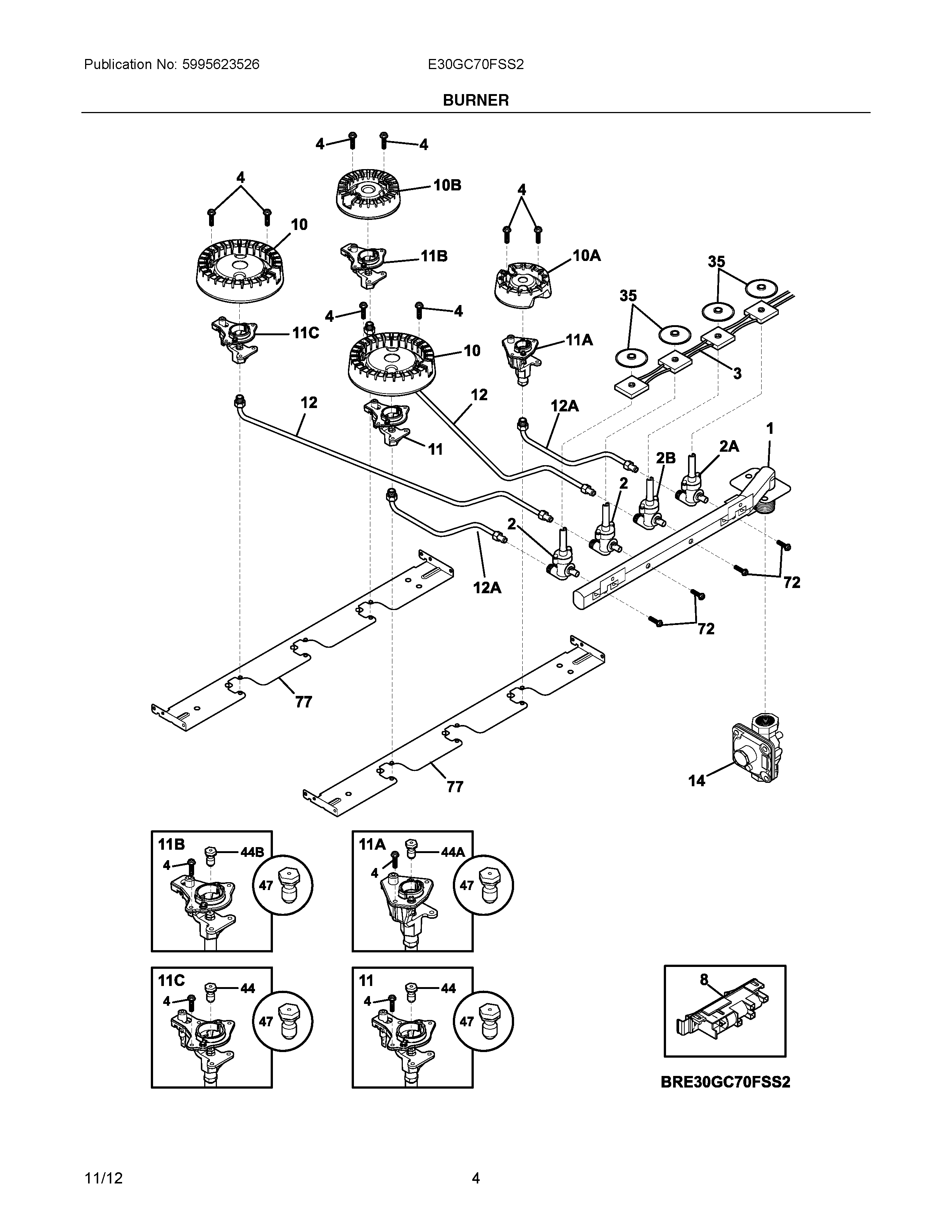

E30GC70FSS2 03 – BURNER

E30GC70FSS2 03 – BURNER

Written by

in

E30GC70FSS2 03 – BURNER

Products

PositionProduct
NIWCI 318199779
NI5303323140 Frigidaire Oven Screw
NIA5303323137 Frigidaire Oven Screw
NI5303311174 Frigidaire Oven Screw
NIWCI 318024210
1WCI 318177020
2BWCI 318233910
2A318233900 Frigidaire Oven Valve
2WCI 318233940
3318232604 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
85304505695 Frigidaire Oven Module
10316438400 Frigidaire Range Sealed Burner, 16/17K
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
11B316540700 Frigidaire Igniter/Orifice Assembly
11C316543202 Frigidaire Igniter/Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
11316543203 Frigidaire Igniter Orifice Assembly
12AWCI 318560702
12WCI 318560700
145308007974 Frigidaire Pressure Regulator
35WCI 318146301
44B316527500 Frigidaire Oven Burner Orifice
44A316527504 Frigidaire Oven Orifice
44316527509 Frigidaire Oven 18.2K Burner Orifice
47WCI 318565423
72316215600 Frigidaire Oven Screw
77WCI 318564100
