E30GC70FSS3 03 – BURNER

E30GC70FSS3 03 – BURNER

Written by

in

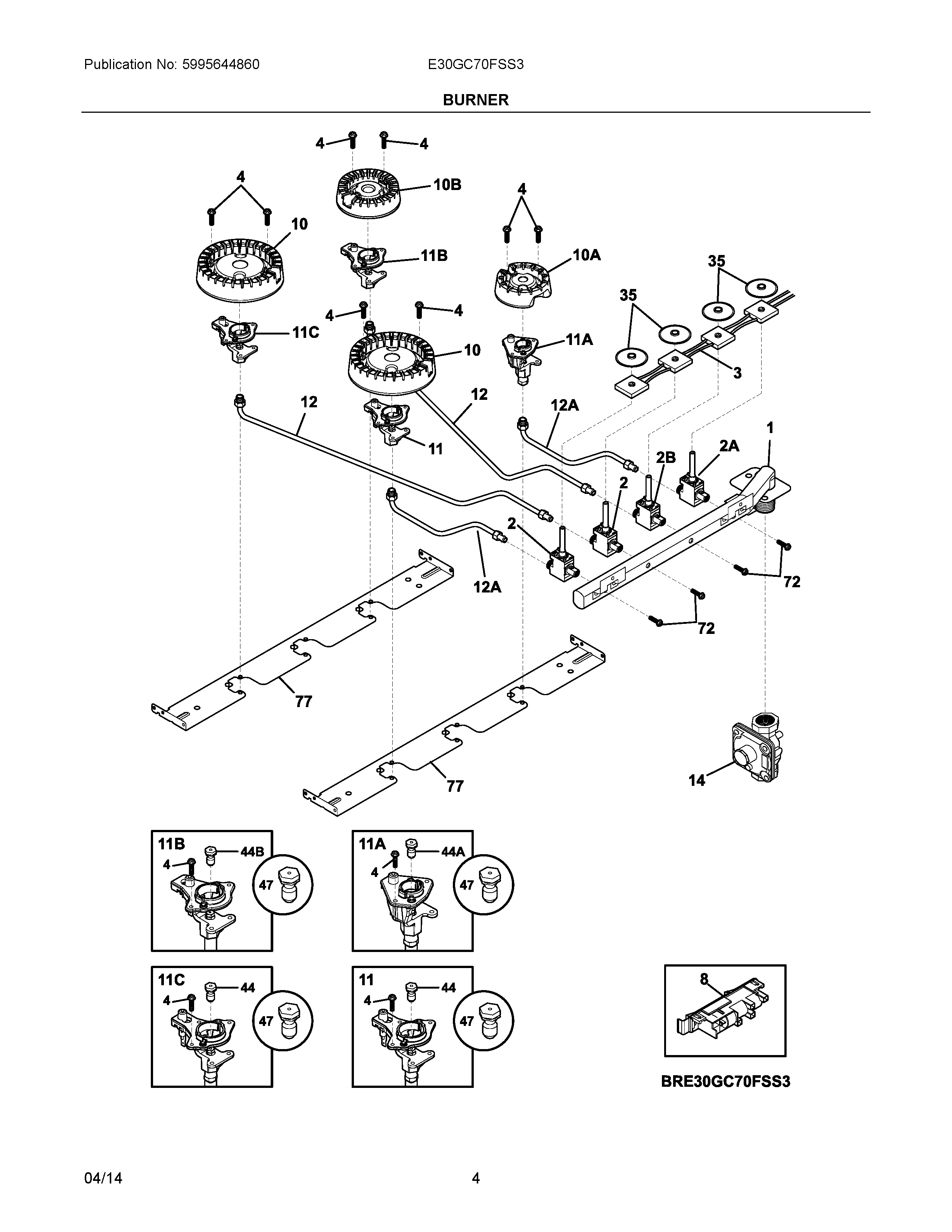

E30GC70FSS3 03 – BURNER

Products

PositionProduct
NIA5303323137 Frigidaire Oven Screw
NI5303323140 Frigidaire Oven Screw
NIWCI 318024210
NIWCI 318199779
NI5303311174 Frigidaire Oven Screw
1WCI 318177020
2316271304 Frigidaire Valve
2A316271305 Frigidaire Oven Valve
2B316271301 Frigidaire Oven Valve
3WCI 807209901
4316240600 Frigidaire Igniter Mounting Screw
85304505695 Frigidaire Oven Module
10B316558300 Frigidaire Oven 9.5L Sealed Burner
10316438400 Frigidaire Range Sealed Burner, 16/17K
10A316438200 Frigidaire Range Sealed Burner, 5K
11C316543202 Frigidaire Igniter/Orifice Assembly
11316543203 Frigidaire Igniter Orifice Assembly
11B316540700 Frigidaire Igniter/Orifice Assembly
11A316540800 Frigidaire Igniter/Orifice Assembly
12AWCI 318560702
12WCI 318560700
145308007974 Frigidaire Pressure Regulator
35807164301 Frigidaire Oven Bushing
44316527509 Frigidaire Oven 18.2K Burner Orifice
44A316527504 Frigidaire Oven Orifice
44B316527500 Frigidaire Oven Burner Orifice
47WCI 318565423
72316215600 Frigidaire Oven Screw
77WCI 318564100
