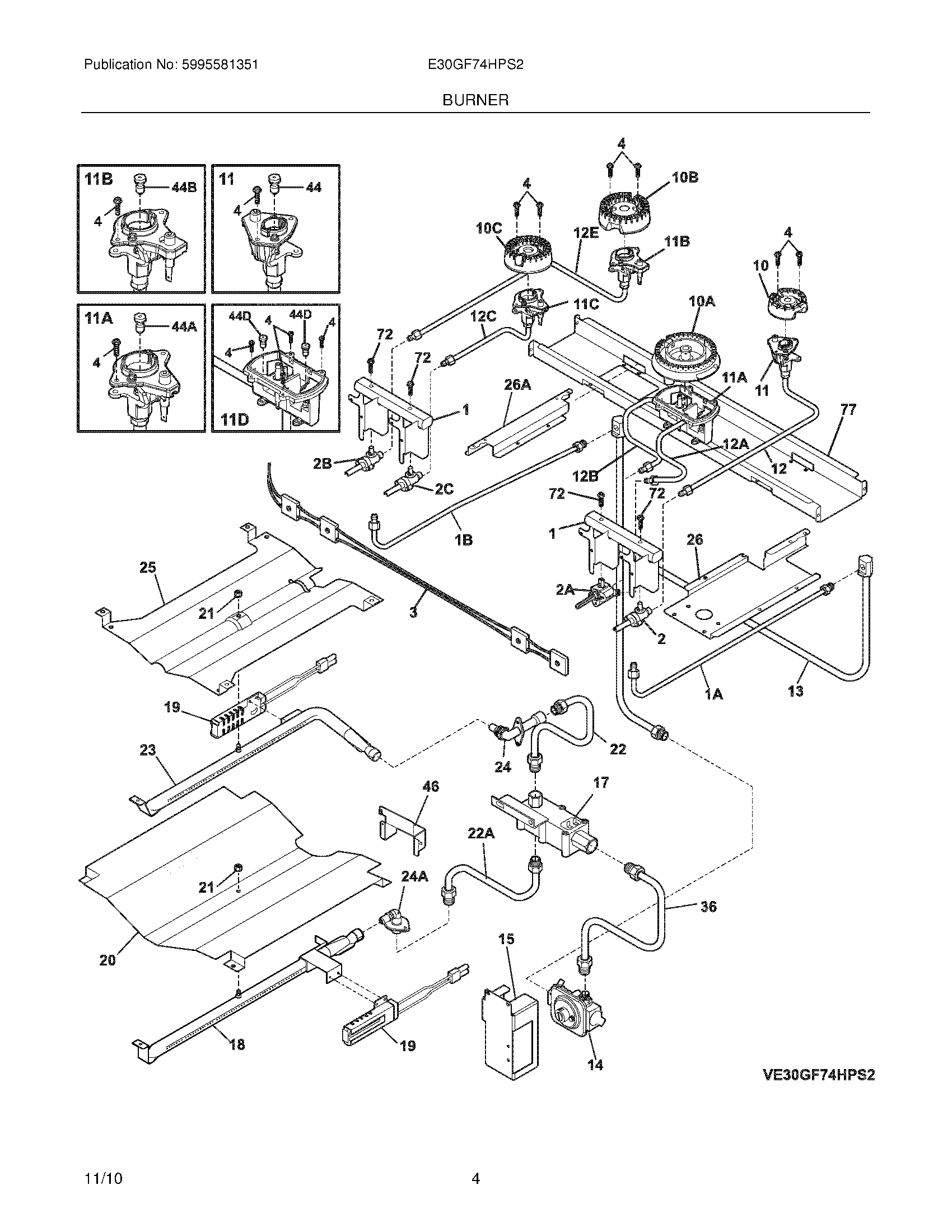

E30GF74HPS2 05 – BURNER

E30GF74HPS2 05 – BURNER

Written by

in

E30GF74HPS2 05 – BURNER

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NIWCI 318186926
NI5304453707 Frigidaire Oven Screw
NI5304480396 Frigidaire Screw
NIWCI 318064857
NIWCI 318199782
1WCI 318357801
1ATUBE, MANIFOLD, LH, INTERCONNECT
1B318305404 Frigidaire Tube
2BWCI 316520703
2A316574900 Frigidaire Oven Valve
2C316520701 Frigidaire Oven Valve Assembly
2WCI 316520700
3318232634 Frigidaire Wiring Harness
4316240600 Frigidaire Igniter Mounting Screw
10316438200 Frigidaire Range Sealed Burner, 5K
10B316438600 Frigidaire Range Sealed Burner, 14K
10A316558300 Frigidaire Oven 9.5L Sealed Burner
10DWCI 316525401
11DWCI 316525103
11A316540700 Frigidaire Igniter/Orifice Assembly
11B316543204 Frigidaire Igniter/Orifice Assembly
11316540800 Frigidaire Igniter/Orifice Assembly
12AWCI 318366731
12EWCI 318366728
12BWCI 318366732
12318366727 Frigidaire Tube
12CWCI 318366733
13WCI 318360601
14WCI 316082907
15WCI 318376120
175303210798 Frigidaire Range Wall Oven Gas Safety Valve
18318292210 Frigidaire Burner
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20WCI 318290400
22AWCI 318305211
22WCI 318305212
23WCI 318292300
24AWCI 318347219
24WCI 316409703
25WCI 316401301
26WCI 318363803
26A318363903 Frigidaire Bracket
36WCI 318177812
44B316527511 Frigidaire Oven Orifice
44DWCI 316523509
44DWCI 316523512
44A316527500 Frigidaire Oven Burner Orifice
44316527504 Frigidaire Oven Orifice
46WCI 318536250
72316215600 Frigidaire Oven Screw
77WCI 318355503
