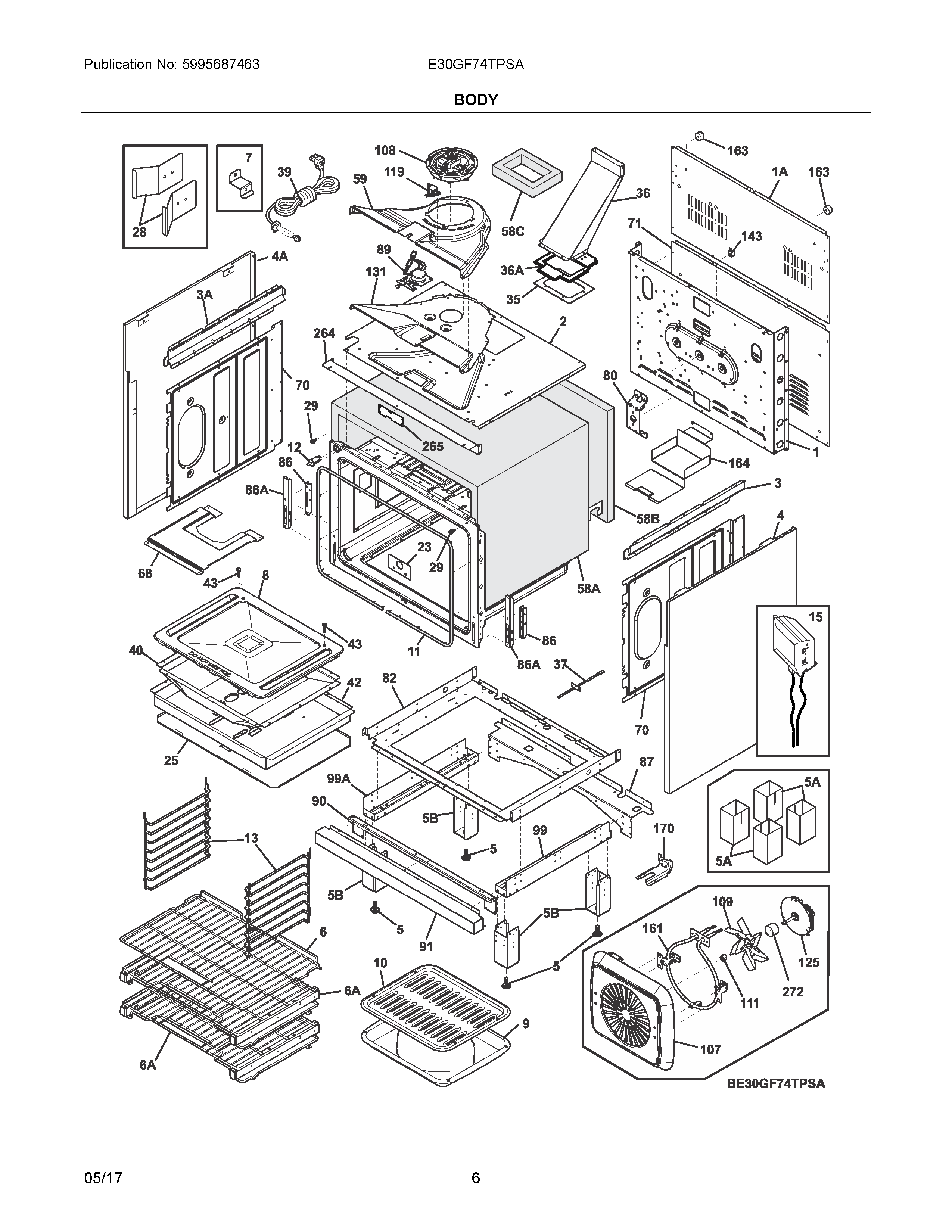

E30GF74TPSA 04 – BODY

E30GF74TPSA 04 – BODY

Written by

in

E30GF74TPSA 04 – BODY

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NIA	WCI 318579001
NIA	316418900 Frigidaire Oven Screw
NIA	WCI 5304481623
NIA	316001017 Frigidaire Screw
NIA	807597603 Frigidaire Oven Screw
NIAA	Screw,cup pt ,8-18 x 0.375 ,chrome
NIA	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	WCI 5304509813
NIA	5303289910 Frigidaire Oven Screw
NIA	318946400 Frigidaire Oven Bulb
1	139017306 Frigidaire Oven Panel
1A	PANEL, BACK, UPPER
2	139078202 Frigidaire Shield
3	PANEL, RH SIDE, UPPER
3A	PANEL, LH SIDE, UPPER
4A	PANEL, BODY SIDE, LH
4	PANEL, BODY SIDE, RH
5	318175506 Frigidaire Oven Screw
5A	COVER, LEG, (4)
5B	SUPPORT, LEG, (4)
6	808713913 Frigidaire Rack Assembly
6A	GLIDE RACK, ASSEMBLY, NICKEL, W/HANDLE
7	BRACKET, MAIN BACK, (4)
8	139005002 Frigidaire Oven Panel
9	316081901 Frigidaire Oven Baking Pan
10	316082001 Frigidaire Oven Insert
11	807545502 Frigidaire Oven Seal
12	808136601 Frigidaire Oven Switch
13	808713901 Frigidaire Ladder Assembly
15	WCI 139001800
23	139004500 Frigidaire Cover
25	318291900 Frigidaire Bracket Assembly
28	WCI 318369301
29	316517600 Frigidaire Oven Spacer
35	318291300 Frigidaire Oven Seal
36	FLUE, ASSEMBLY
36A	139008301 Frigidaire Support
37	SENSOR
39	5304534000 Frigidaire Cord
40	139004700 Frigidaire Oven Box
42	BOX, BURNER
43	316282700 Frigidaire Oven Screw
58A	INSULATION, OVEN WRAPPER
58B	WCI 139020202
58C	INSULATION, FLUE, (3)
59	139078002 Frigidaire Oven Duct
68	5304504565 Frigidaire Shield
70	139000601 Frigidaire Oven Shield
71	PANEL, COVER
80	139021101 Frigidaire Bracket Assembly
82	SHIELD, INSULATION, LOWE
86	318561100 Frigidaire Receptacle
86A	WCI 809138301
87	5304509825 Frigidaire Bracket Assembly
89	5304528836 Frigidaire Motor
90	WCI 5304498481
91	WCI 5304498466
99	WCI 5304498479
99A	WCI 5304498480
107	139013902 Frigidaire Oven Cover Assembly
108	318575612 Frigidaire Oven Cooling Fan Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
119	807144901 Frigidaire Thermostat
125	139008600 Frigidaire Oven Motor
131	139078102 Frigidaire Oven Duct
143	318172904 Frigidaire Bracket
161	139013800 Frigidaire Oven Element
163	318531700 Frigidaire Oven Spacer
164	WCI 5304498485
170	WCI 316112008
264	WCI 807057101
265	WCI 807050701
272	139021700 Frigidaire Oven Tube
