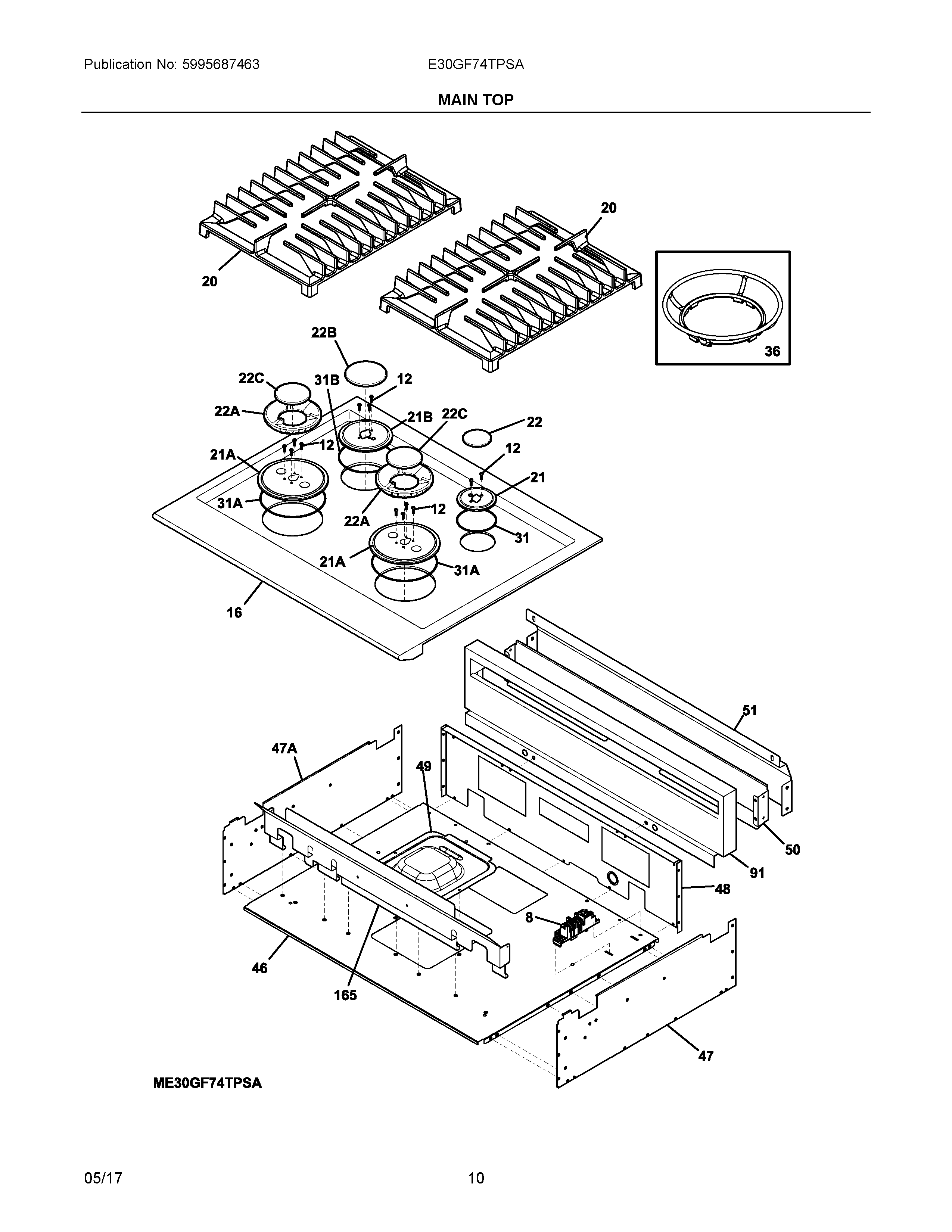

E30GF74TPSA 05 – MAIN TOP

E30GF74TPSA 05 – MAIN TOP

Written by

in

E30GF74TPSA 05 – MAIN TOP

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIAWCI 5304509841
NINUT, KEPS, 8-32, (2)
NIWCI 318163602
NIA5304480396 Frigidaire Screw
NI316021109 Frigidaire Oven Screw
8808608802 Frigidaire Oven Spark Ignition Four Pole
12316540900 Frigidaire Oven Screw
16MAIN TOP ASSY, FRAME/GLASS, STAINLESS/BLACK
20GRATE, TOP BURNER, BLACK
21B318293308 Frigidaire Oven Skirt
21318293107 Frigidaire Oven Skirt
21A316283900 Frigidaire Skirt
22A5304520332 Frigidaire Oven Cap
22CAP
22B5304508443 Frigidaire Oven Surface Burner Cap
22C5304508442 Frigidaire Oven Surface Burner Cap
31316242002 Frigidaire Range Burner Seal
31A316515203 Frigidaire Oven Seal
31B316242000 Frigidaire Burner Seal
365304509823 Frigidaire Grate
46SHEILD, COOKTOP PANEL, LOWER
47WCI 318241706
47AWCI 318241707
48PANEL, COOKTOP REAR
49PANEL, SERVICE, FAN
50DEFLECTOR, BACKSPLASH, FRONT
51DEFLECTOR, BACKSPLASH, BLACK, REAR
91BACKSPLASH, STAINLESS
165DEFLECTOR, HEAT
