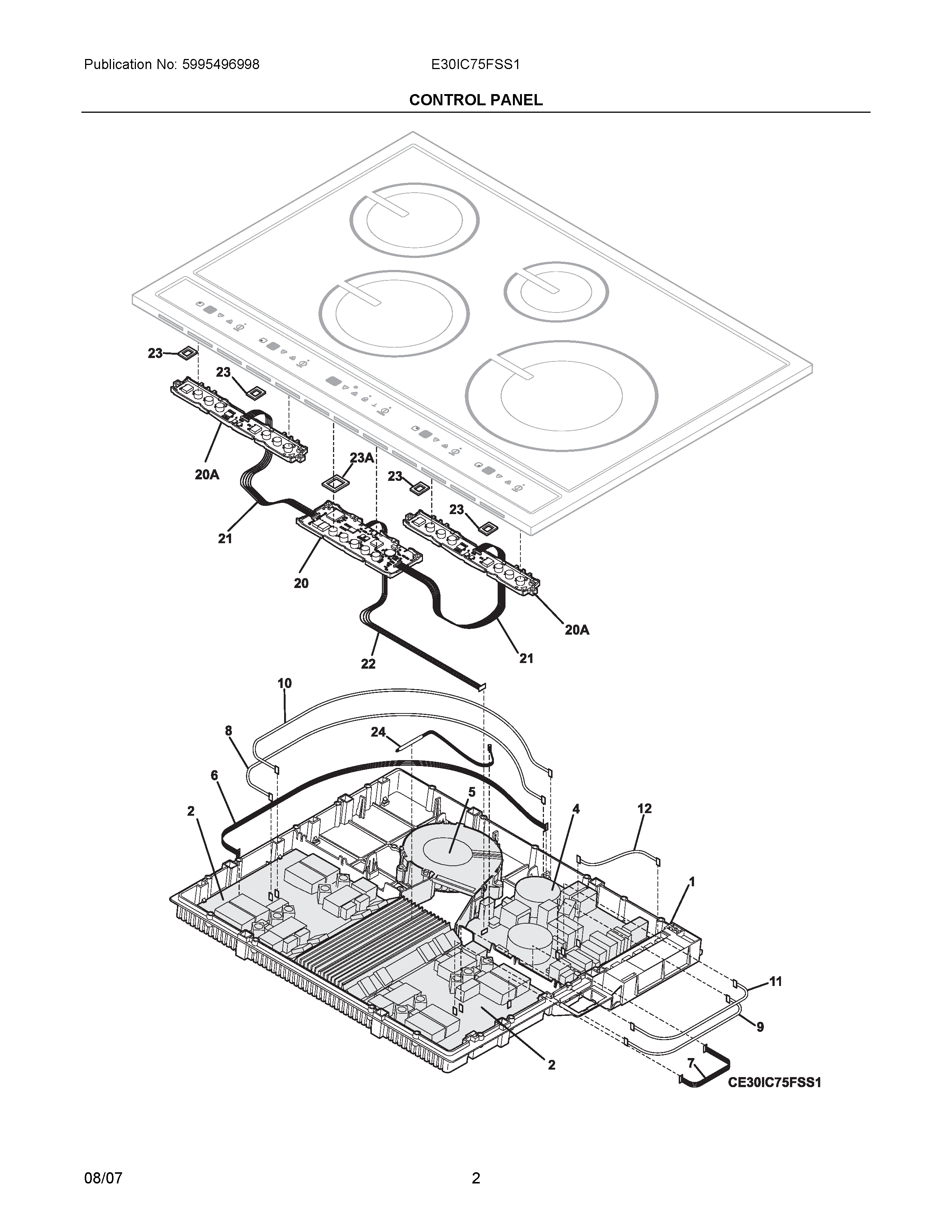

E30IC75FSS1 02 – CONTROL PANEL

E30IC75FSS1 02 – CONTROL PANEL

Written by

in

E30IC75FSS1 02 – CONTROL PANEL

Products

PositionProduct
NIWasher,flat ,nylon ,(4)
NIPalnut,No.8-32 ,(6)
NITape,foam ,1/4“x1“x1“ ,(6)
1318329601 Frigidaire Oven Induction Cooktop Module/Housing Assembly
2318347100 Frigidaire Oven Generator
4318347000 Frigidaire Filter
5Cooling Fan Assembly,large
6Communication Cable,generator ,18“ ,to filter,X10/X12
7Communication Cable,generator ,6“ ,to filter,X10/X13
8WCI 318052581
9WCI 318052580
10WCI 318052582
11WCI 318052579
12Groung Wire,X54/6
20WCI 318330811
20ATouch Control,cook zone ,(2) ,electronic
21Interface Cable,side control ,to center
22Communication Cable,center control ,to filter
23AFrame,display ,double
23Frame,display ,single ,(5)
24Thermal Cut-Out,short
