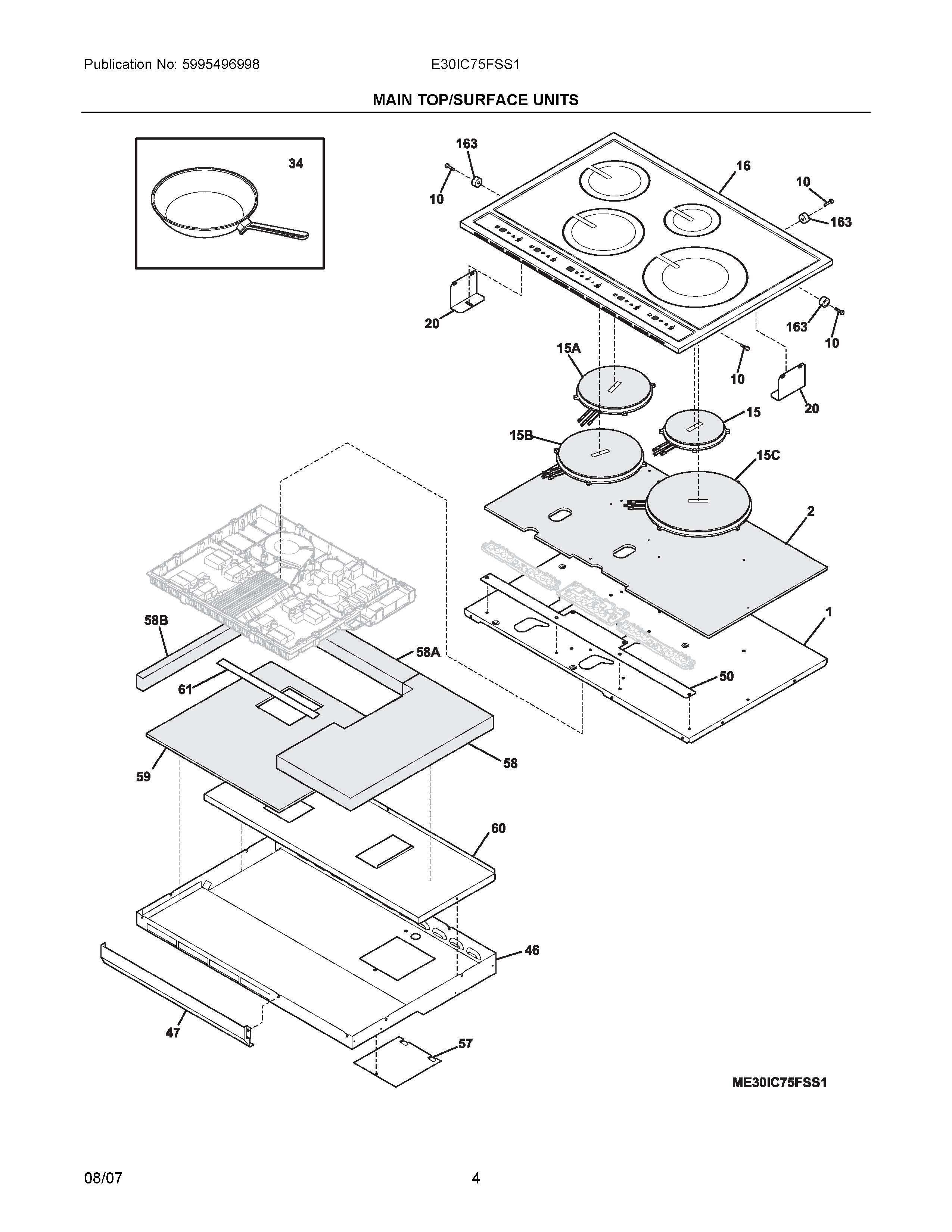

E30IC75FSS1 03 – MAIN TOP/SURFACE UNITS

E30IC75FSS1 03 – MAIN TOP/SURFACE UNITS

Written by

in

E30IC75FSS1 03 – MAIN TOP/SURFACE UNITS

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NIClamp,power cord
NIWCI 318078552
NI5303323140 Frigidaire Oven Screw
NI5303307980 Frigidaire Oven Screw
NIWCI 316459400
1Panel,CARRIER
2Insulation,elements
10Screw,7-19 x 1/2“ ,(11) ,housing ring
15AElement,induction coil ,180MM ,left rear
15Element,induction coil ,145MM ,right rear
15CElement,induction coil ,260MM ,right front
15BElement,induction coil ,210MM ,left front
16Main Top Assy,glass/steel ,black/stainless
20Bracket,retainer
34Pan,skilet ,induction
46Box,burner
47Deflector,air
50Panel,spacer
57Panel,access
58AInsulation,housing ,rear
58Insulation,housing ,RH
58BInsulation,housing ,LH
59Insualtion,housing ,lower
60Deflector,air
615304424462 Frigidaire Foam Tape
163318531702 Frigidaire Oven Spacer
