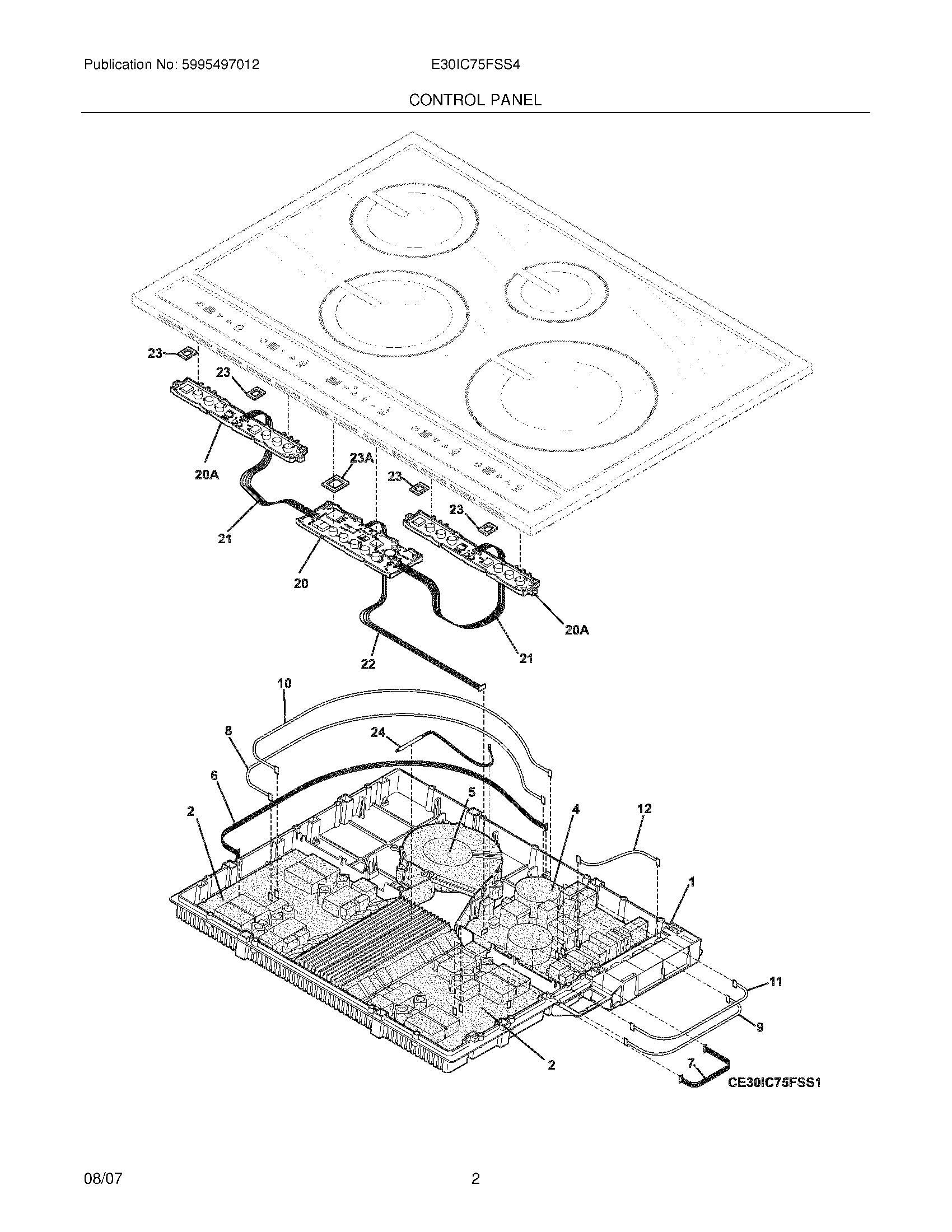

E30IC75FSS4 03 – CONTROL PANEL

E30IC75FSS4 03 – CONTROL PANEL

Written by

in

E30IC75FSS4 03 – CONTROL PANEL

Products

PositionProduct
NIPalnut,No.8-32 ,(6)
NIWasher,flat ,nylon ,(4)
NITape,foam ,1/4“x1“x1“ ,(6)
1318329601 Frigidaire Oven Induction Cooktop Module/Housing Assembly
2318347100 Frigidaire Oven Generator
4318347000 Frigidaire Filter
5Cooling Fan Assembly,large
6Communication Cable,generator ,18“ ,to filter,X10/X12
7Communication Cable,generator ,6“ ,to filter,X10/X13
8WCI 318052581
9WCI 318052580
10WCI 318052582
11WCI 318052579
12WCI 318052596
20AWCI 318330713
20WCI 318330813
21Interface Cable,side control ,to center
22Communication Cable,center control ,to filter
23AFrame,display ,double
23Frame,display ,single ,(5)
24Thermal Cut-Out,short
