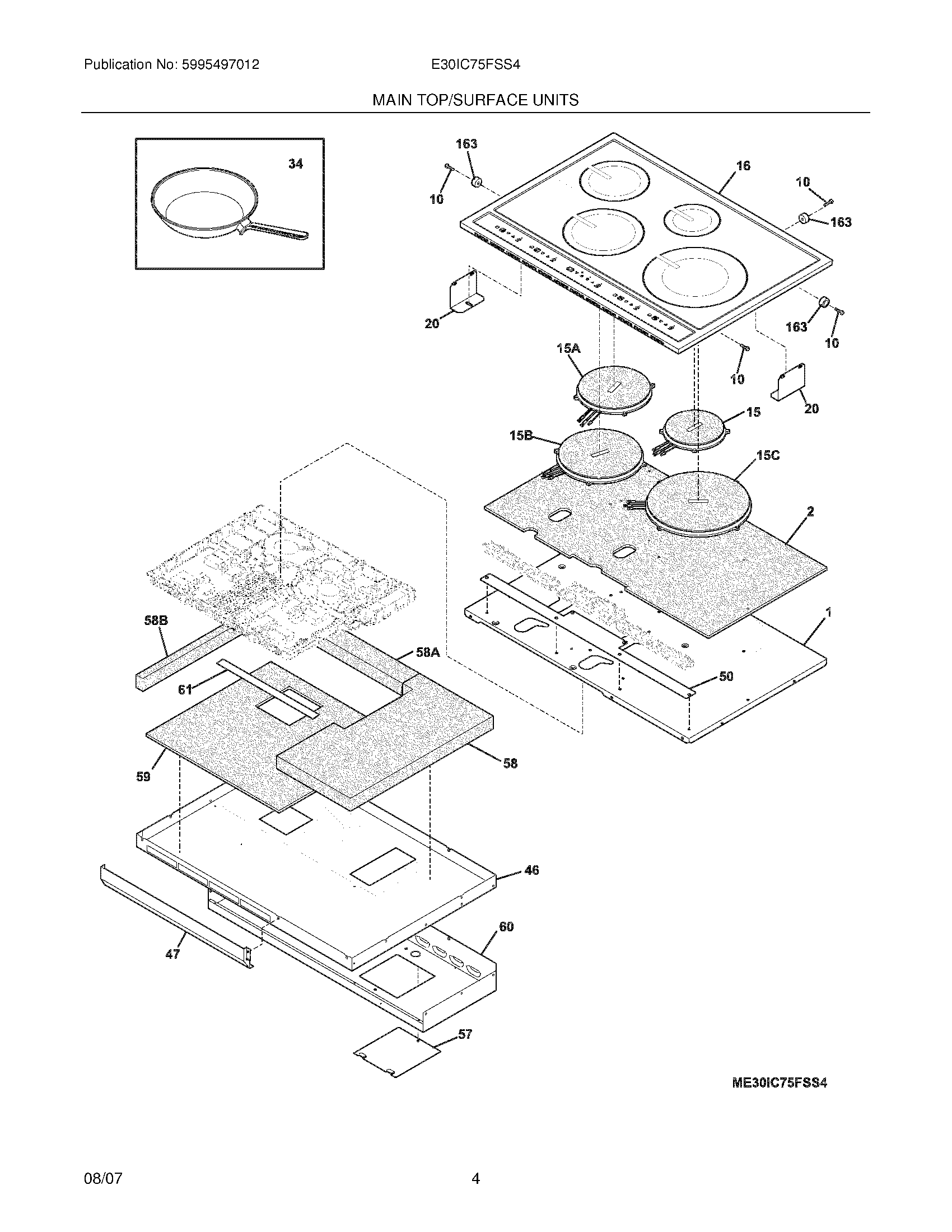

E30IC75FSS4 05 – MAINTOP

Products

Position	Product
NI	5303307980 Frigidaire Oven Screw
NI	Clamp,power cord
NI	5303323140 Frigidaire Oven Screw
NI	WCI 318078576
NI	WCI 316459400
1	Panel,CARRIER
2	Insulation,elements
10	Screw,7-19 x 1/2“ ,(11) ,housing ring
15A	Element,induction coil ,180MM ,left rear
15B	Element,induction coil ,210MM ,left front
15C	Element,induction coil ,260MM ,right front
15	Element,induction coil ,145MM ,right rear
16	Main Top Assy,glass/steel ,black/stainless
20	Bracket,retainer
34	Pan,skilet ,induction
46	WCI 318328918
47	WCI 318345115
50	Panel,spacer
57	Panel,access
58	Insulation,housing ,RH
58A	Insulation,housing ,rear
58B	Insulation,housing ,LH
59	Insualtion,housing ,lower
60	WCI 318329300
61	5304424462 Frigidaire Foam Tape
163	318531702 Frigidaire Oven Spacer
