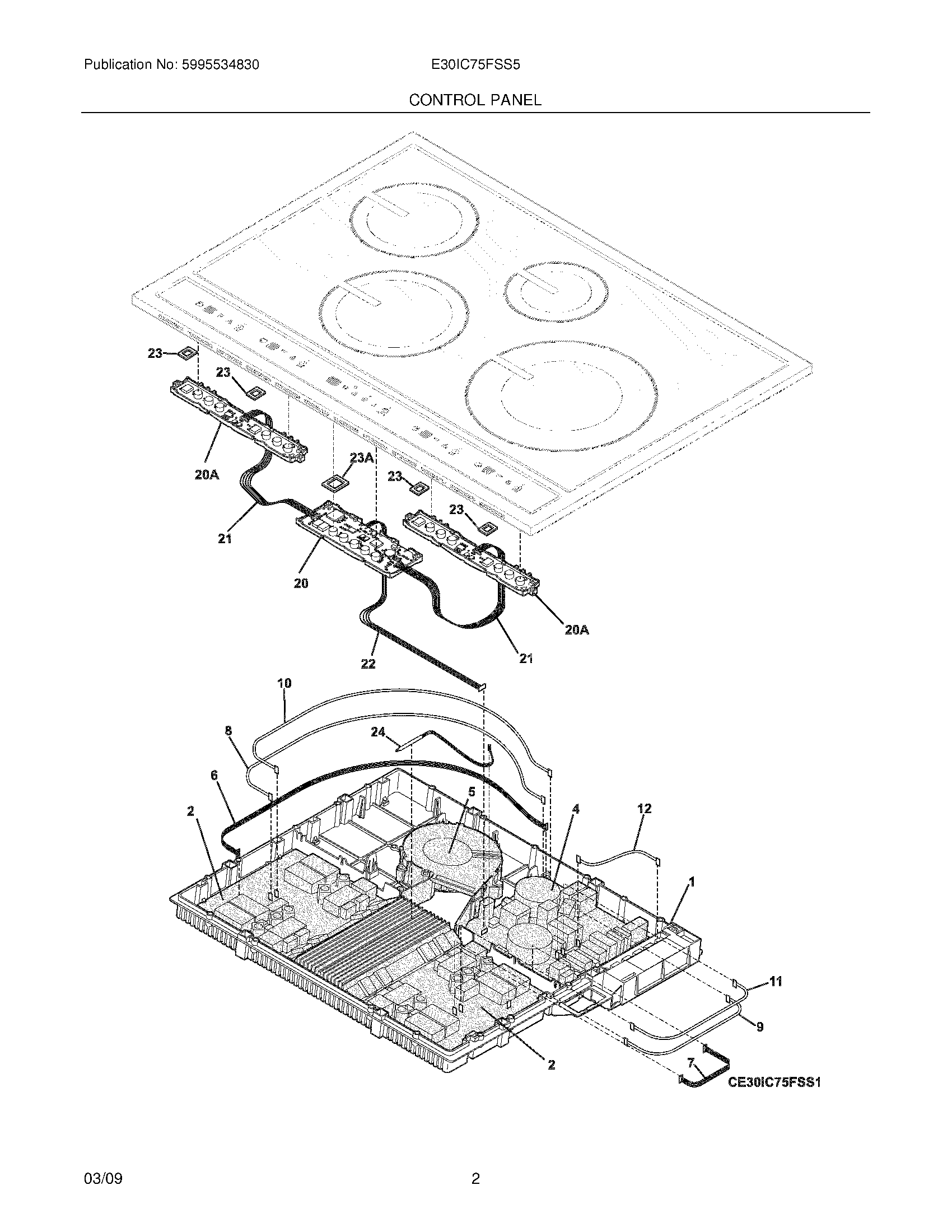

E30IC75FSS5 03 – CONTROL PANEL

E30IC75FSS5 03 – CONTROL PANEL

Written by

in

E30IC75FSS5 03 – CONTROL PANEL

Products

PositionProduct
NITape,foam ,1/4“x1“x1“ ,(6)
NIPalnut,No.8-32 ,(6)
NIWasher,flat ,nylon ,(4)
1318329601 Frigidaire Oven Induction Cooktop Module/Housing Assembly
2318347100 Frigidaire Oven Generator
4318347000 Frigidaire Filter
5Cooling Fan Assembly,large
6Communication Cable,generator ,18“ ,to filter,X10/X12
7Communication Cable,generator ,6“ ,to filter,X10/X13
8WCI 318052581
9WCI 318052580
10WCI 318052582
11WCI 318052579
12WCI 318052596
20AWCI 318330712
20WCI 318330814
21WCI 318402404
22WCI 318532102
23Frame,display ,single ,(5)
23AFrame,display ,double
24Thermal Cut-Out,short
