E30IC75FSS5 05 – MAINTOP

E30IC75FSS5 05 – MAINTOP

Written by

in

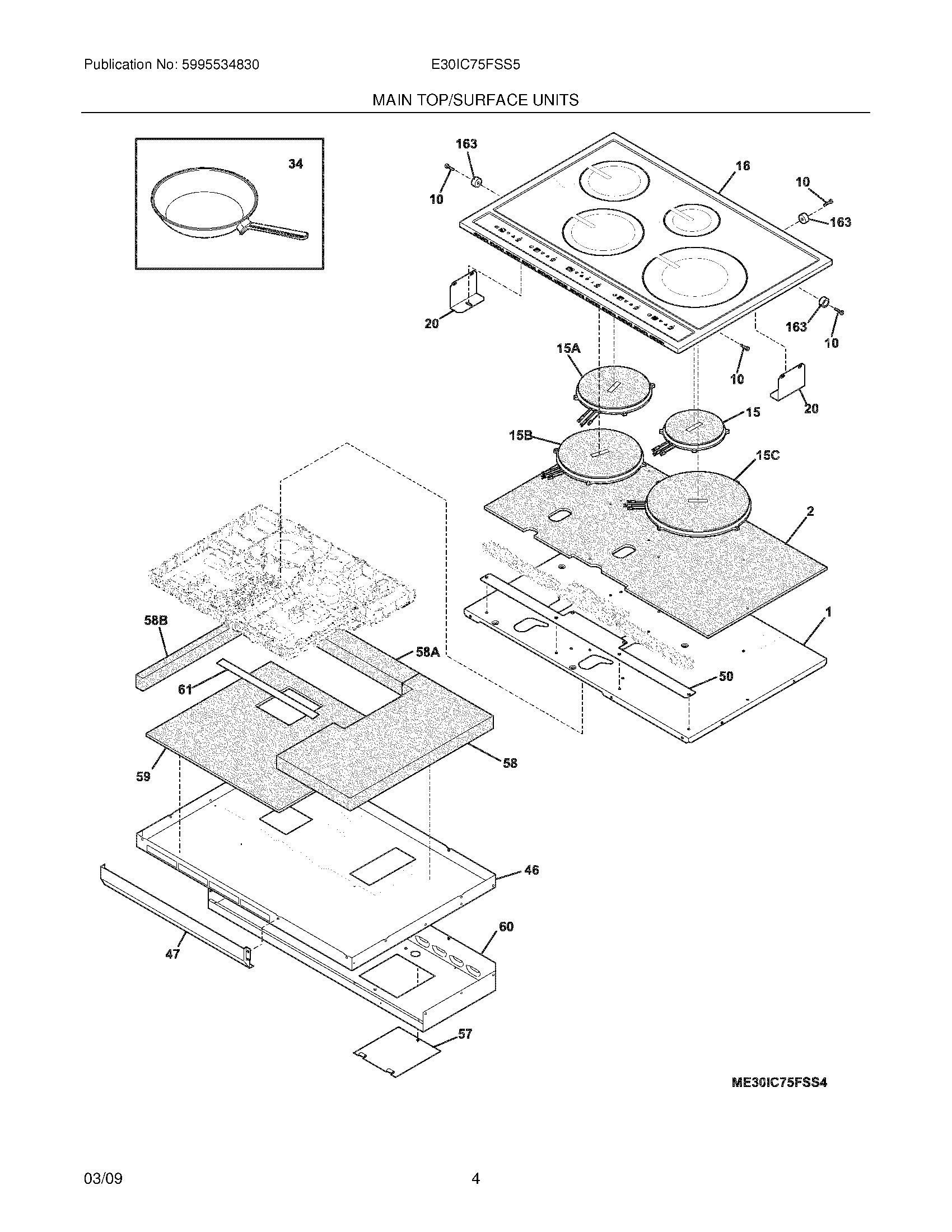

E30IC75FSS5 05 – MAINTOP

Products

PositionProduct
NI5303307980 Frigidaire Oven Screw
NIWCI 318078576
NIWCI 5304470730
NI5303323140 Frigidaire Oven Screw
NI5305511218 Frigidaire Ceramabryte C12 18O
NIWCI 316459400
NIWCI 318163602
1WCI 318329007
2Insulation,elements
10Screw,7-19 x 1/2“ ,(11) ,housing ring
15Element,induction coil ,145MM ,right rear
15BElement,induction coil ,210MM ,left front
15CElement,induction coil ,260MM ,right front
15AElement,induction coil ,180MM ,left rear
16Main Top Assy,glass/steel ,black/stainless
20WCI 318121915
34Pan,skilet ,induction
35Clamp,power cord
46WCI 318328918
47WCI 318345115
50Panel,spacer
57WCI 318330912
58BInsulation,housing ,LH
58AInsulation,housing ,rear
58Insulation,housing ,RH
59Insualtion,housing ,lower
60WCI 318329300
615304424462 Frigidaire Foam Tape
163318531702 Frigidaire Oven Spacer
