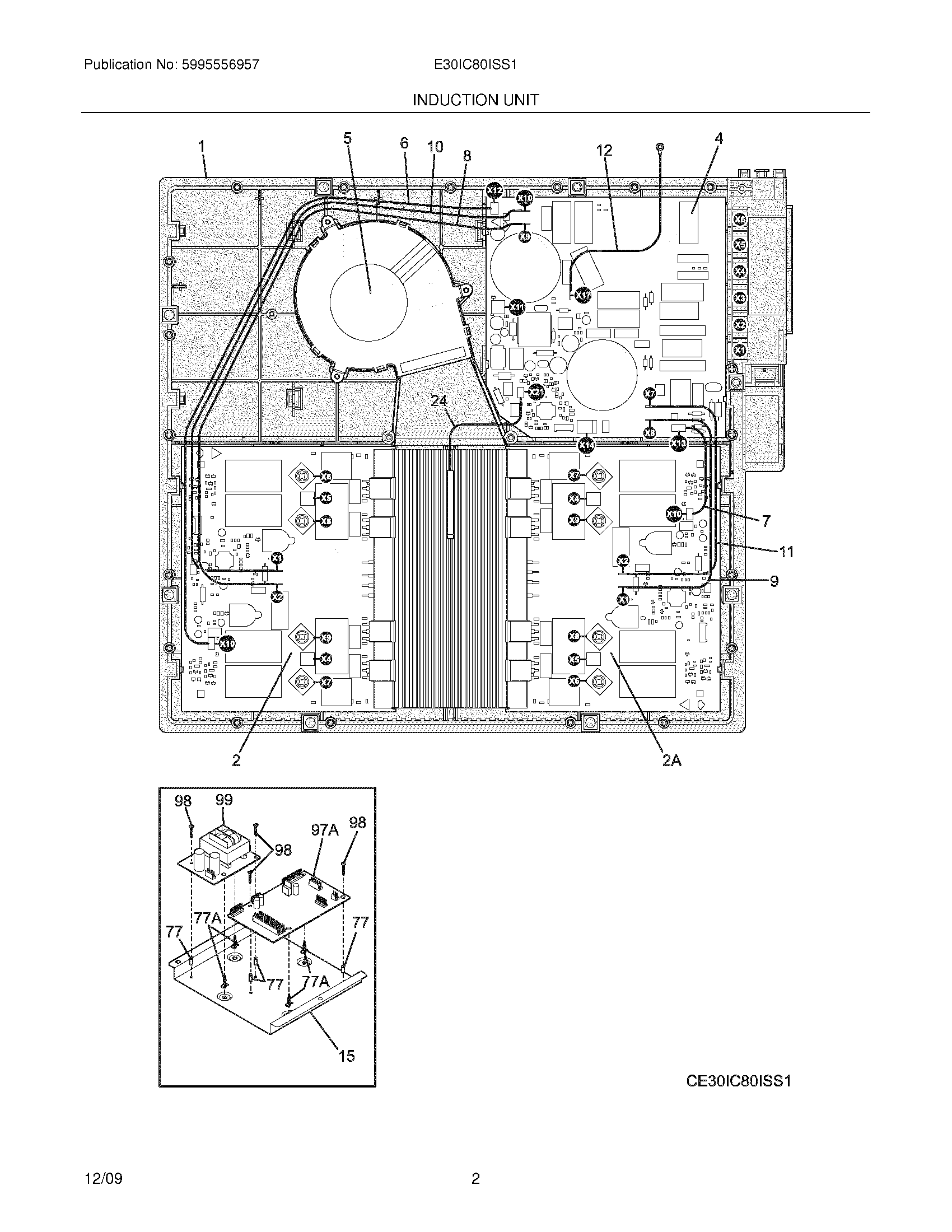

E30IC80ISS1 03 – INDUCTION UNIT

E30IC80ISS1 03 – INDUCTION UNIT

Written by

in

E30IC80ISS1 03 – INDUCTION UNIT

Products

PositionProduct
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 318402355
NIWCI 318341200
NIScrew,7-19 x 1/2“ ,(11) ,housing ring
NIWCI 318563800
NI5303323140 Frigidaire Oven Screw
NINUT, KEPS, 8-32, (2)
NISCREW, 8 X 5/8, SPARK MODULE
1318329602 Frigidaire Oven Housing Assembly
2A318347102 Frigidaire Oven Generator
2318347101 Frigidaire Oven Generator
4318347000 Frigidaire Filter
5Cooling Fan Assembly,large
6Communication Cable,generator ,18“ ,to filter,X10/X12
7Communication Cable,generator ,6“ ,to filter,X10/X13
8WCI 318052581
9WCI 318052580
10WCI 318052582
11WCI 318052579
12WCI 318052596
12WCI 318532141
15WCI 318537301
77316247900 Frigidaire Oven Spacer
77A316114100 Frigidaire Oven Spacer
97AWCI 316442067
985304401490 Frigidaire Oven Screw
99316435703 Frigidaire Oven Board
