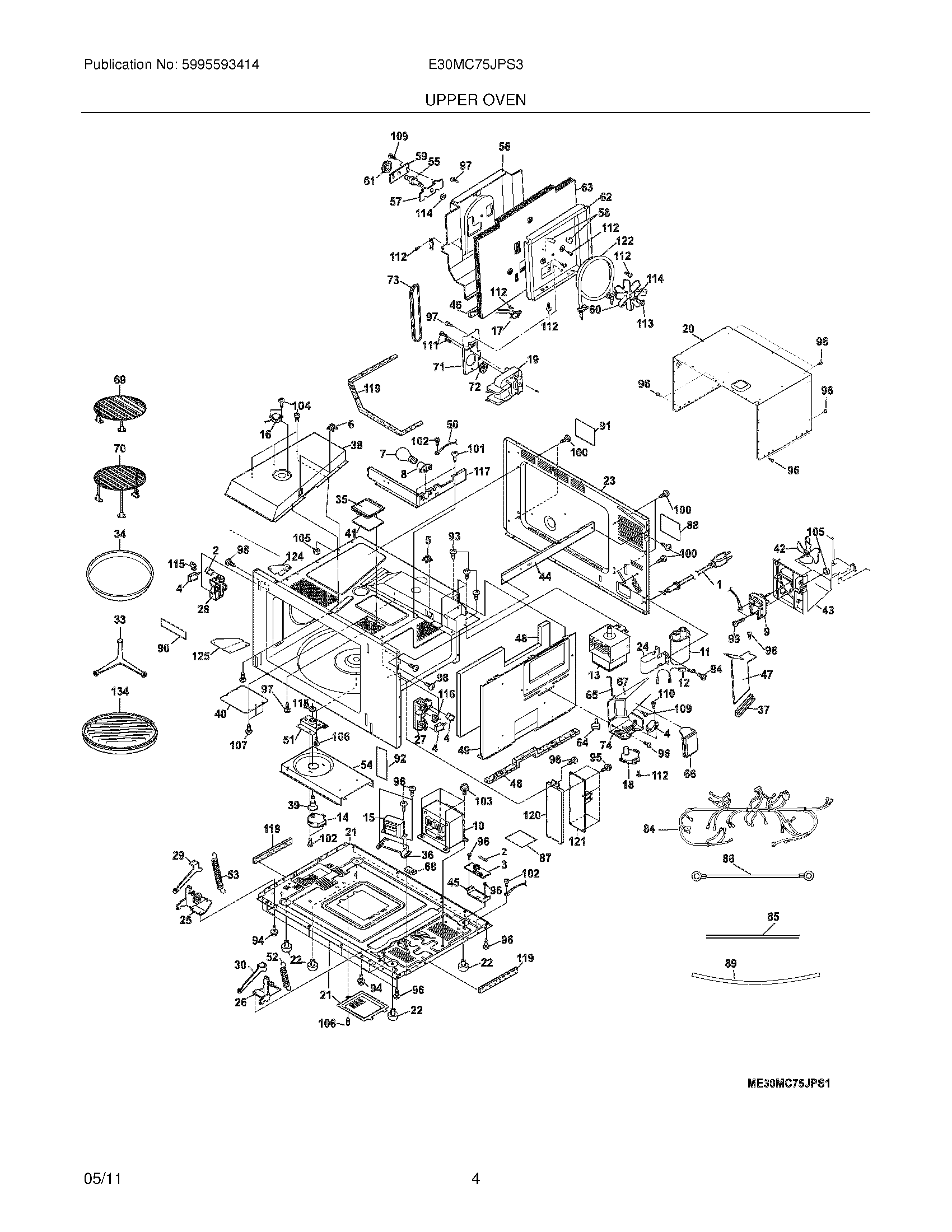

E30MC75JPS3 05 – UPPER OVER

E30MC75JPS3 05 – UPPER OVER

Written by

in

E30MC75JPS3 05 – UPPER OVER

Products

PositionProduct
15304470537 Frigidaire Microwave Power Cord
25304461109 Frigidaire Microwave Door Switch
35304498734 Frigidaire Microwave Filter
45304493153 Frigidaire Microwave Door Switch
55304461113 Frigidaire Microwave THERMAL CUT-OUT
65304461114 Frigidaire Microwave Cut-Out Thermal
75304464198 Frigidaire Microwave Lamp
85304463785 Frigidaire Microwave LampHolder
95304461119 Frigidaire Microwave Motor
105304470538 Frigidaire Microwave Transformer
115304470539 Frigidaire Microwave Capacitor
125304531883 Frigidaire Microwave Rectifier Assembly
135304480636 Frigidaire Microwave Magnetron
145304498736 Frigidaire Turntable Motor
155304470541 Frigidaire Microwave Transformer
165304461125 Frigidaire Microwave Sensor Assembly
175304483929 Frigidaire Thermistor Assembly
185304461115 Frigidaire Microwave Motor
195304471782 Frigidaire Microwave Motor
205304470542 Frigidaire Cabinet Assembly
215304470734 Frigidaire Base
22WCI 5304461127
23WCI 5304470544
245304461129 Frigidaire HOLDER
25WCI 5304482319
26WCI 5304482320
275304470547 Frigidaire Microwave Hook Latch
285304470548 Frigidaire Microwave Hook Latch
295304480640 Frigidaire Microwave Cam
305304480641 Frigidaire Microwave Cam Assembly
33WCI 5304480642
34WCI 5304470563
355304461155 Frigidaire Frame
365304470564 Frigidaire Bracket
37WCI 5304461157
38WCI 5304461158
395304480644 Frigidaire Microwave Coupling
405304461165 Frigidaire Microwave Cover
415304461167 Frigidaire Microwave Lens
425304461173 Frigidaire Microwave Blade
43WCI 5304461174
445304461175 Frigidaire Support
45WCI 5304461178
46WCI 5304461156
47WCI 5304461181
48WCI 5304461182
495304461183 Frigidaire COVER
505304461196 Frigidaire Wiring Harness
515304451459 Frigidaire Microwave Bracket
52WCI 5304482321
535304503732 Frigidaire Oven Spring Assembly
54WCI 5304470576
55WCI 5304480647
565304461147 Frigidaire Microwave Plate
57WCI 5304461148
58WCI 5304461149
59WCI 5304461150
605304461151 Frigidaire Microwave Fan Blade
615304471508 Frigidaire Microwave Pulley Assembly
62WCI 5304480648
63WCI 5304461154
645304461159 Frigidaire Cam
655304461160 Frigidaire SHAFT
665304461161 Frigidaire Microwave Door Assembly
675304461162 Frigidaire Duct
68WCI 5304461163
69WCI 5304461194
70WCI 5304461195
715304461172 Frigidaire Plate
725304461152 Frigidaire Pulley
735304461177 Frigidaire Microwave Belt
745304461179 Frigidaire Cushion
84WCI 5304471513
855304440331 Frigidaire Microwave Wire
865304461199 Frigidaire Microwave Wire
875304440334 Frigidaire Microwave Label
885304465314 Frigidaire Label
895304480653 Frigidaire Microwave Harness
905304451534 Frigidaire LABEL
915304440333 Frigidaire Label
925304471514 Frigidaire LABEL
93WCI 5303319636
945304451550 Frigidaire Screw
955304502863 Frigidaire Microwave Screw
965304451553 Frigidaire Microwave Screw
975304461203 Frigidaire Screw
985303319641 Frigidaire Screw
995304461209 Frigidaire Screw
1005304470587 Frigidaire Screw
1015304461215 Frigidaire Screw
1025304470588 Frigidaire Screw
103WCI 5304461221
1045304470589 Frigidaire Screw
105WCI 5
