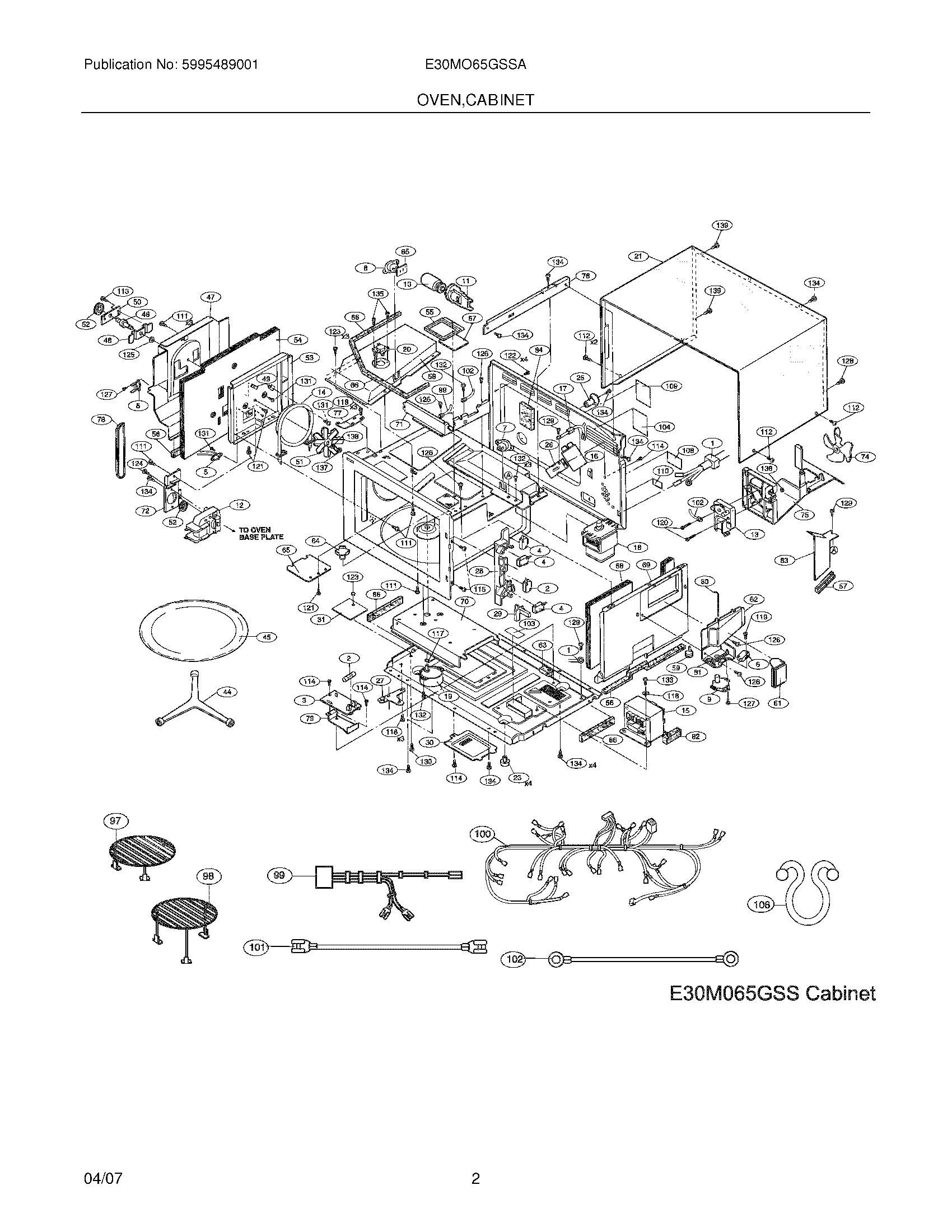

E30MO65GSSA 03 – CABINET

E30MO65GSSA 03 – CABINET

Written by

in

E30MO65GSSA 03 – CABINET

Products

PositionProduct
1POWER CORD, ELECTRIC
25304461109 Frigidaire Microwave Door Switch
35304498734 Frigidaire Microwave Filter
4WCI 5304461111
55304483929 Frigidaire Thermistor Assembly
65304493153 Frigidaire Microwave Door Switch
75304461113 Frigidaire Microwave THERMAL CUT-OUT
85304461114 Frigidaire Microwave Cut-Out Thermal
95304461115 Frigidaire Microwave Motor
105304461116 Frigidaire Microwave Light Bulb
115303319561 Frigidaire Microwave Lamp Socket
12MOTOR, CONVECTION FAN
135304461119 Frigidaire Microwave Motor
14WCI 5304461120
15WCI 5304461121
165304470539 Frigidaire Microwave Capacitor
175304474696 Frigidaire Microwave Rectifier
185304480636 Frigidaire Microwave Magnetron
195304498736 Frigidaire Turntable Motor
205304461125 Frigidaire Microwave Sensor Assembly
21WCI 5304461126
23WCI 5304461127
25HOLDER, POWER CORD
265304461129 Frigidaire HOLDER
27HINGE, DOOR, LOWER
285304461131 Frigidaire Microwave Hook
29LEVER, SWITCH
30COVER, TURNTABLE MOTOR
31BARRIER, CSA
44WCI 5304461144
45WCI 5304461145
46BEARING ASSEMBLY
475304461147 Frigidaire Microwave Plate
48WCI 5304461148
49WCI 5304461149
50WCI 5304461150
515304461151 Frigidaire Microwave Fan Blade
525304461152 Frigidaire Pulley
53DUCT ASSEMBLY, HEATER
54WCI 5304461154
555304461155 Frigidaire Frame
56WCI 5304461156
57WCI 5304461157
58WCI 5304461158
595304461159 Frigidaire Cam
605304461160 Frigidaire SHAFT
615304461161 Frigidaire Microwave Door Assembly
625304461162 Frigidaire Duct
63WCI 5304461163
64WCI 5304461164
655304461165 Frigidaire Microwave Cover
66CUSHION, (4)
675304461167 Frigidaire Microwave Lens
68SHEET, THERMAL PROTECT, RH
69PLATE, TH
70WCI 5304461170
71WCI 5304461171
725304461172 Frigidaire Plate
745304461173 Frigidaire Microwave Blade
75WCI 5304461174
765304461175 Frigidaire Support
77WCI 5304461176
785304461177 Frigidaire Microwave Belt
79WCI 5304461178
815304461179 Frigidaire Cushion
82WCI 5304461180
83WCI 5304461181
84WCI 5304461182
855304461183 Frigidaire COVER
97WCI 5304461194
98WCI 5304461195
995304461196 Frigidaire Wiring Harness
100WCI 5304461197
1015304461198 Frigidaire Microwave Wire
1025304461199 Frigidaire Microwave Wire
103WCI 5304461200
1045304465314 Frigidaire Label
106WCI 5304451529
108WCI 5304451535
1095304440333 Frigidaire Label
110LABEL, CAUTION, UL SCREW
1115304461203 Frigidaire Screw
1125304451553 Frigidaire Microwave Screw
1135304461204 Frigidaire Screw
1145304450253 Frigidaire Microwave Screw
1155303319641 Frigidaire Screw
116WCI 5304461205
117WCI 5304461206
118WCI 5304461207
1195304461208 Frigidaire Screw
1205304461209 Frigidaire Screw
1215304461210 Frigidaire Microwave Screw
1225304470587 Frigidaire Screw
123WCI 5
