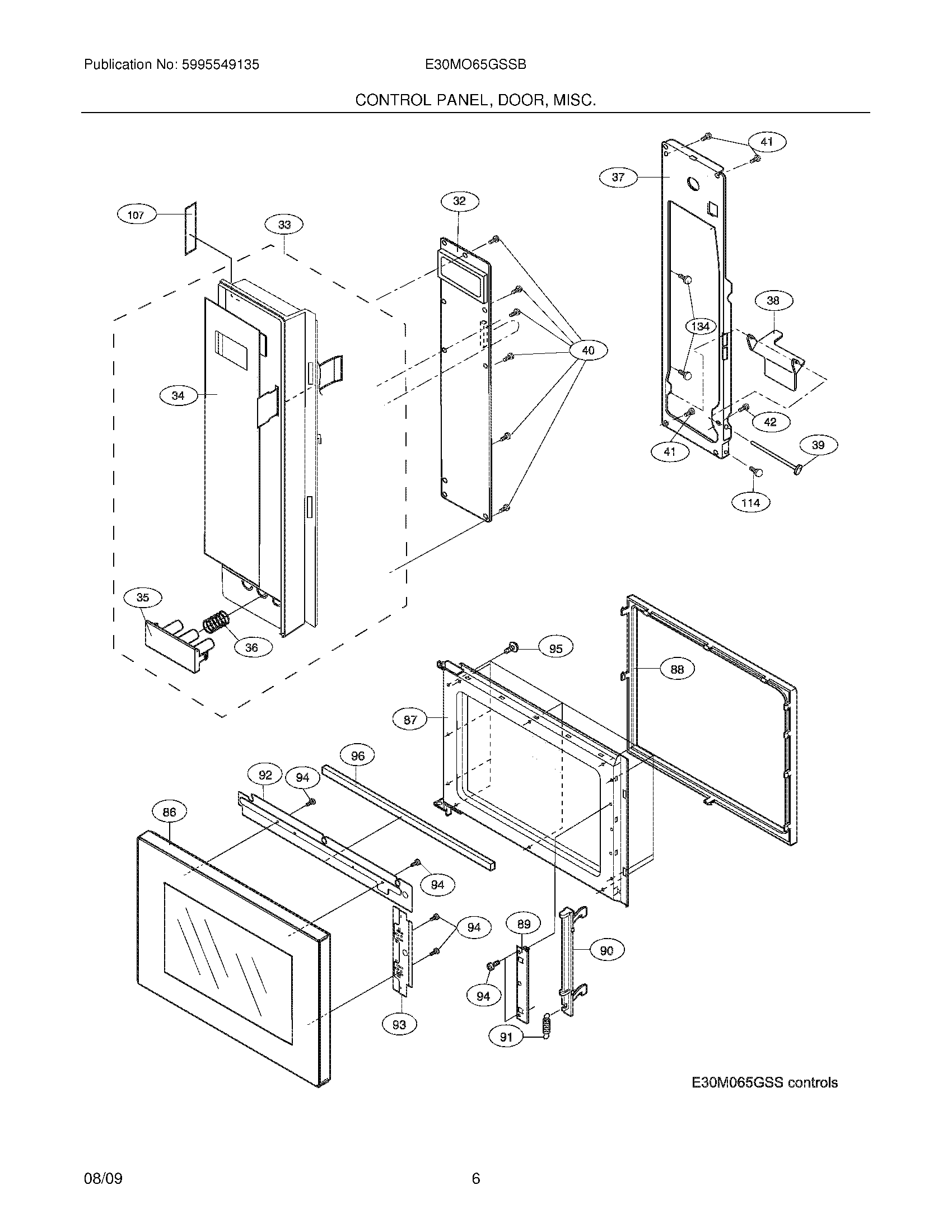

E30MO65GSSB 05 – CONTROL PANEL/DOOR/MISC

E30MO65GSSB 05 – CONTROL PANEL/DOOR/MISC

Written by

in

E30MO65GSSB 05 – CONTROL PANEL/DOOR/MISC

Products

PositionProduct
325304461135 Frigidaire Microwave Control Board
33WCI 5304461136
34WCI 5304461137
35WCI 5304461138
365304440831 Frigidaire Microwave Spring Assembly
37PLATE, CONTROL PANEL, BACK
38WCI 5304461140
39SHAFT, DOOR BUTTON
40WCI 5303319584
41SCREW, BACK PLATE MTG, (5)
42SCREW, CTRL PANEL MTG, (2)
86PANEL, OUTER DOOR, BLACK, FRAME
87PANEL, INNER DOOR, BLACK
88COVER, CHOKE
89ANGLE, LATCH
90HEAD, LATCH
91SPRING, LATCH HEAD
92PLATE, THERMAL, UPPER
93PLATE, THERMAL, RH
945304451561 Frigidaire Microwave Screw
95SCREW, 3MM X 8MM
96CUSHION
107WCI 5304461202
1145304450253 Frigidaire Microwave Screw
1345304414648 Frigidaire Oven Screw
