E30MO65GSSC 02 – OVEN, CABINET

E30MO65GSSC 02 – OVEN, CABINET

Written by

in

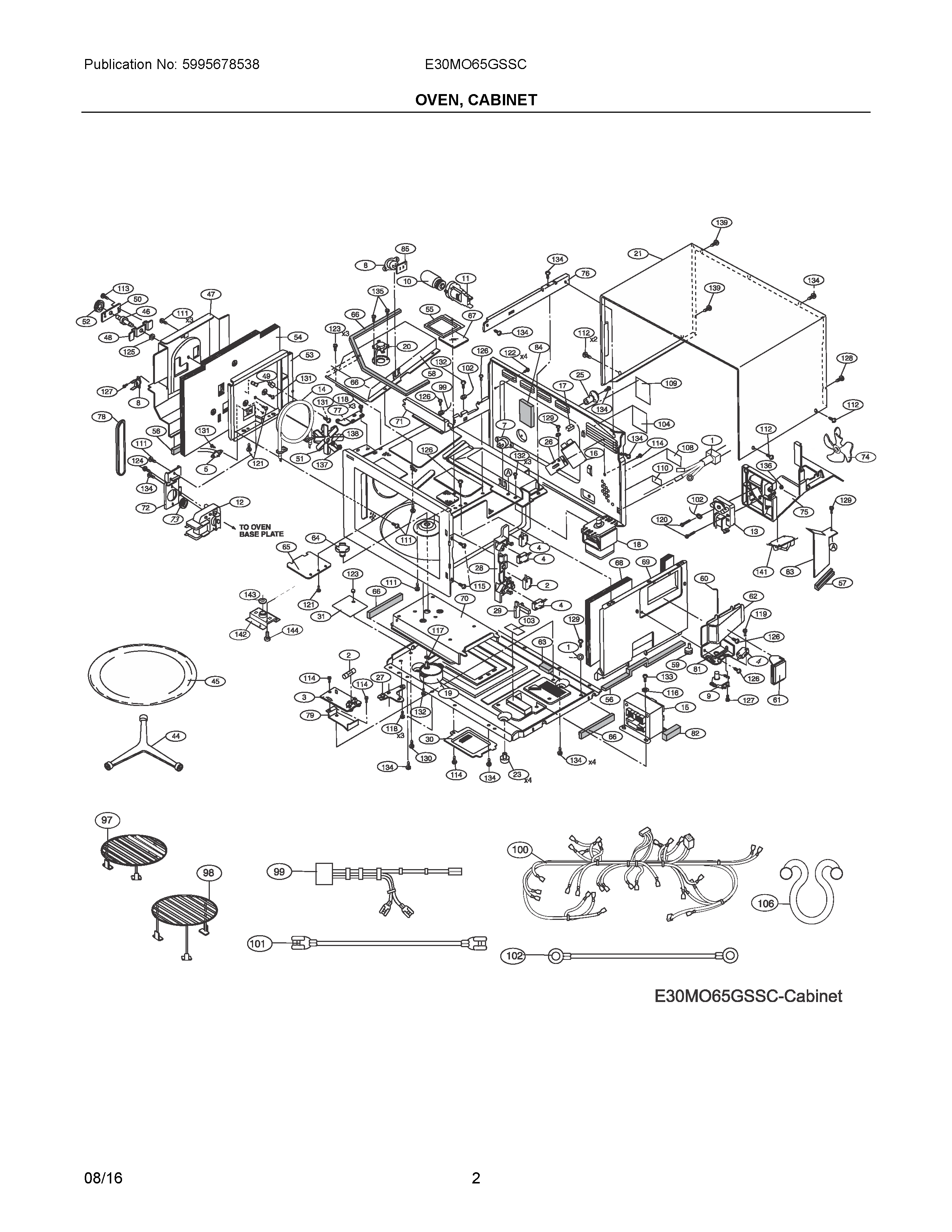

E30MO65GSSC 02 – OVEN, CABINET

Products

PositionProduct
1POWER CORD, ELECTRIC
25304461109 Frigidaire Microwave Door Switch
3FILTER
45304493153 Frigidaire Microwave Door Switch
55304483929 Frigidaire Thermistor Assembly
75304461113 Frigidaire Microwave THERMAL CUT-OUT
85304461114 Frigidaire Microwave Cut-Out Thermal
95304485889 Frigidaire MOTOR
105304461116 Frigidaire Microwave Light Bulb
115303319561 Frigidaire Microwave Lamp Socket
12MOTOR, CONVECTION FAN
135304461119 Frigidaire Microwave Motor
145304474695 Frigidaire Microwave Element
155304470538 Frigidaire Microwave Transformer
165304470539 Frigidaire Microwave Capacitor
175304474696 Frigidaire Microwave Rectifier
185304501808 Frigidaire Microwave Magnetron
195304498736 Frigidaire Turntable Motor
205304461125 Frigidaire Microwave Sensor Assembly
21CABINET, OUTER CASING
23WCI 5304461127
25HOLDER, POWER CORD
265304461129 Frigidaire HOLDER
27HINGE, DOOR, LOWER
285304461131 Frigidaire Microwave Hook
29LEVER, SWITCH
30COVER, TURNTABLE MOTOR
31BARRIER, CSA
445304501830 Frigidaire Microwave Support
455304498731 Frigidaire Microwave Tray
46BEARING ASSEMBLY
475304461147 Frigidaire Microwave Plate
48WCI 5304461148
49WCI 5304461149
50WCI 5304461150
515304461151 Frigidaire Microwave Fan Blade
525304471508 Frigidaire Microwave Pulley Assembly
53DUCT ASSEMBLY, HEATER
54WCI 5304461154
555304461155 Frigidaire Frame
56WCI 5304461156
57WCI 5304461157
58WCI 5304461158
595304461159 Frigidaire Cam
605304461160 Frigidaire SHAFT
615304461161 Frigidaire Microwave Door Assembly
625304461162 Frigidaire Duct
63WCI 5304461163
645304480644 Frigidaire Microwave Coupling
655304461165 Frigidaire Microwave Cover
66CUSHION, (4)
675304461167 Frigidaire Microwave Lens
68SHEET, THERMAL PROTECT, RH
69PLATE, TH
705304507109 Frigidaire Guide
71WCI 5304461171
725304461172 Frigidaire Plate
735304461152 Frigidaire Pulley
745304461173 Frigidaire Microwave Blade
75WCI 5304461174
765304461175 Frigidaire Support
77WCI 5304461176
785304461177 Frigidaire Microwave Belt
79WCI 5304461178
815304461179 Frigidaire Cushion
82WCI 5304461180
83WCI 5304461181
84WCI 5304461182
855304461183 Frigidaire COVER
975304498741 Frigidaire Rack Assembly
985304498742 Frigidaire Rack Assembly
995304461196 Frigidaire Wiring Harness
100WCI 5304507110
1015304461198 Frigidaire Microwave Wire
1025304461199 Frigidaire Microwave Wire
103WCI 5304461200
1045304465314 Frigidaire Label
106WCI 5304451529
108WCI 5304451535
1095304467770 Frigidaire Microwave Label
110LABEL, CAUTION, UL SCREW
1115304461203 Frigidaire Screw
1125304451553 Frigidaire Microwave Screw
1135304461204 Frigidaire Screw
1145304450253 Frigidaire Microwave Screw
1155303319641 Frigidaire Screw
116WCI 5304461205
117WCI 5304461206
118WCI 5304461207
1195304461208 Frigidaire Screw
1205304461209 Frigidaire Screw
1215304461210 Frigidaire Microwave Screw
1225304470587 Frigidaire Screw
123WCI 5
